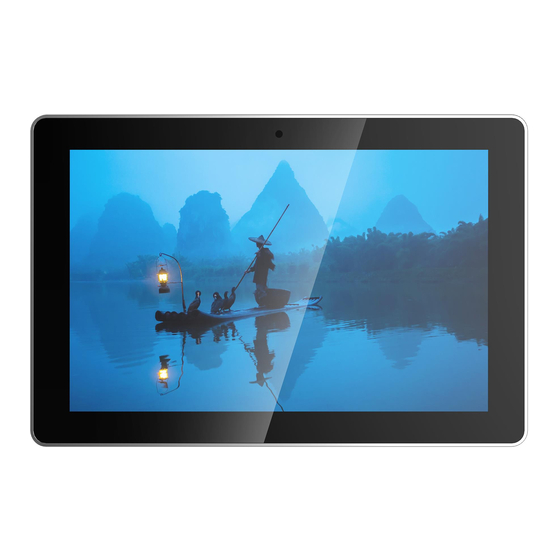

- Page 1 Application Guide Using Standard Raspberry Pi OS on ED-HMI3020 Series EDA Technology Co., LTD February 2024...
- Page 2 IOT, industrial control, automation, green energy and artificial intelligence based on Raspberry Pi technology platform. You can contact us in the following ways: EDA Technology Co.,LTD Address: Building 29, No.1661 Jialuo Highway, Jiading District, Shanghai Mail: sales@edatec.cn...
- Page 3 ED-HMI3020 and its related intellectual property rights are owned by EDA Technology Co.,LTD. EDA Technology Co.,LTD owns the copyright of this document and reserves all rights. Without the written permission of EDA Technology Co.,LTD, no part of this document may be modified, distributed or copied in any way or form.
- Page 4 EDA Technology Co.,LTD does not guarantee that the information in this manual is up to date, correct, complete or of high quality. EDA Technology Co.,LTD also does not guarantee the further use of this information. If the material or non-...
-
Page 5: Related Agreement
Foreword Reader Scope This manual is applicable to the following readers: Mechanical Engineer Electrical Engineer Software Engineer System Engineer Related Agreement Symbolic Convention Symbolic Instruction Prompt symbols, indicating important features or operations. Notice symbols, which may cause personal injury, system damage, or signal interruption/loss. Warning symbols, which may cause great harm to people. -
Page 6: Safety Instructions
Safety Instructions This product should be used in an environment that meets the requirements of design specifications, otherwise it may cause failure, and functional abnormality or component damage caused by non-compliance with relevant regulations are not within the product quality assurance scope. ... -
Page 7: Table Of Contents
Content Foreword ..............................i Reader Scope ............................i Related Agreement ..........................i Symbolic Convention ........................i Safety Instructions ............................ii Overview ............................1-1 Background ........................1-2 Application Range ......................1-3 Application Guidance ........................2-1 Operating Process ......................2-2 Downloading OS File ......................2-3 Flashing to SD card ...................... -
Page 8: Overview
1 Overview 1 Overview This chapter introduces the background information and application range of using standard Raspberry Pi OS on the ED-HMI3020 series. Background Application Range Application Guide... -
Page 9: Background
1 Overview 1.1 Background ED-HMI3020 series products have an operating system with BSP installed by default when leaving the factory. It has added supporting for BSP, created users, enabled SSH and supports BSP online upgrade. It is safe and reliable, and users can use the operating system. -
Page 10: Application Range
1 Overview 1.2 Application Range The products involved in this application include ED-HMI3020-070C and ED-HMI3020-101C. Since using a 64-bit operating system can better utilize the hardware performance of the product, it is recommended to use the 64-bit standard Raspberry Pi OS (bookworm). The details are as follows: Product Model Supported OS ED-HMI3020-070C... -
Page 11: Application Guidance
2 Application Guidance 2 Application Guidance This chapter introduces the operation steps of using standard Raspberry Pi OS on ED-HMI3020 series. Operating Process Downloading OS File Flashing to SD card First boot-up Configuration Installing Firmware Package ... -
Page 12: Operating Process
2 Application Guidance 2.1 Operating Process The main operation process of the application configuration is as shown below. Download the standard Raspberry Pi OS Flashing to SD card First boot-up configuration Install Firmware package Check whether the Firmware package is installed successfully Reboot Application Guide... -
Page 13: Downloading Os File
2 Application Guidance 2.2 Downloading OS File You can download the required Raspberry Pi OS file according to actual needs. The download paths are as follows: Download Path Raspberry Pi OS(Desktop) https://downloads.raspberrypi.com/raspios_arm64/images/raspios_arm64-2023- 64-bit-bookworm (Debian 12) 12-06/2023-12-05-raspios-bookworm-arm64.img.xz Raspberry Pi OS(Lite) 64-bit- https://downloads.raspberrypi.com/raspios_lite_arm64/images/raspios_lite_arm64 bookworm (Debian 12) -2023-12-11/2023-12-11-raspios-bookworm-arm64-lite.img.xz... -
Page 14: Flashing To Sd Card
2 Application Guidance 2.3 Flashing to SD card ED-HMI3020 starts the system from the SD card by default. If you want to use the latest OS, you need flash OS to the SD card. It is recommended to use the Raspberry Pi tool, and the download path is as follows: Raspberry Pi Imager: https://downloads.raspberrypi.org/imager/imager_latest.exe... - Page 15 2 Application Guidance Steps: The steps are described using Windows OS as an example. Insert the SD card into the card reader, and then insert the card reader into the USB port of Open Raspberry Pi Imager, select "CHOOSE OS" and select "Use Custom " in the pop-up pane.
- Page 16 2 Application Guidance Select “YES” in the pop-up “Warning” pane to start writing the image. After the OS writing is completed, the file will be verified. Application Guide...
- Page 17 2 Application Guidance After the verification is completed, click “CONTINUE” in the pop-up “Write Successful” box. Close Raspberry Pi Imager, then remove the card reader. 10. Insert the SD card into ED-HMI3020 and power on again. Application Guide...
-
Page 18: First Boot-Up Configuration
2 Application Guidance 2.4 First boot-up Configuration This section introduces the relevant configurations when users start the system for the first time. 2.4.1 Standard Raspberry Pi OS (Desktop) If you use the Desktop version of standard Raspberry Pi OS, and the OS is not configured in the “OS customization”... - Page 19 2 Application Guidance Power on the device and the system will start. After the system starts normally, the "Welcome to Raspberry Pi Desktop" pane will pop up. Click "Next" and set parameters such as "Country", "Language" and "Timezone" in the pop- up "Set Country"...
- Page 20 2 Application Guidance Click "Next": If you use the old version of the default username pi and default password raspberry when creating the username and password, the following prompt box will pop up and click "OK". The "Set Up Screen" pane pops up, and related parameters of screen are set as ...
- Page 21 2 Application Guidance Click "Next" and select the wireless network to be connected in the pop-up "Select WiFi Network" pane. Click "Next" and enter the password of wireless network in the pop-up "Enter WiFi Password" pane. Click "Next", then click "Next" in the pop-up "Update Software" interface to automatically check and update the software.
- Page 22 2 Application Guidance After checking and updating the software, click "OK", then click "Restart" in the pop-up "Setup Complete" pane to complete the initial configuration and start the system. 10. After startup, enter the OS desktop. NOTE: There may be slight differences in the initial configuration of different versions of Raspberry Pi OS, please refer to the actual interface.
-
Page 23: Standard Raspberry Pi Os (Lite)
2 Application Guidance 2.4.2 Standard Raspberry Pi OS (Lite) If you use the Lite version of standard Raspberry Pi OS, and the OS is not configured in the “OS customization” of Raspberry Pi Imager before flashing to SD card. The initial configuration needs to be completed when the system is first started. - Page 24 2 Application Guidance Select "OK", then you can start creating a new username in the pane. Select "OK", then you can start setting a password for the new user in the pane. Application Guide 2-14...
- Page 25 2 Application Guidance Select "OK", then input the password again in the pane. Select "OK" to complete the initial setup and enter the login interface. According to the prompt, enter the username and password to log in the system. After the startup is completed, enter the operating system.
-
Page 26: Installing Firmware Package
Raspberry Pi OS. It is compatible with the standard Raspberry Pi OS (bookworm). After flashing to SD card of the Raspberry Pi OS (bookworm) on the ED-HMI3020 series, you can configure the system by adding the edatec apt source, installing the kernel package, installing the firmware package, and disabling raspberry kernel upgrade, so that the system can be used normally. - Page 27 2 Application Guidance 3. Execute the following command to install the firmware package. ED-HMI3020-070C apt install -y ed-hmi3020-070c-firmware sudo ED-HMI3020-101C apt install -y ed-hmi3020-101c-firmware sudo TIP: apt-get --purge sudo If you have installed the wrong firmware package, you can execute “ remove package package...
- Page 28 2 Application Guidance ED-HMI3020-101C ed-hmi3020-101c-firmware dpkg grep The result in the picture below indicates that the firmware package has been installed successfully. 6. Execute the following command to restart the device. reboot sudo 7. (Optional) Disconnect the connection between the display and ED-HMI3020, and power off ED-HMI3020.
-
Page 29: Firmware Update (Optional)
After the system starting normally, you can execute the following commands in the command pane to upgrade the system firmware and optimize the software functions. TIP: If you have a software problem when using ED-HMI3020 series products, you can try to upgrade the system Firmware. sudo apt update...
