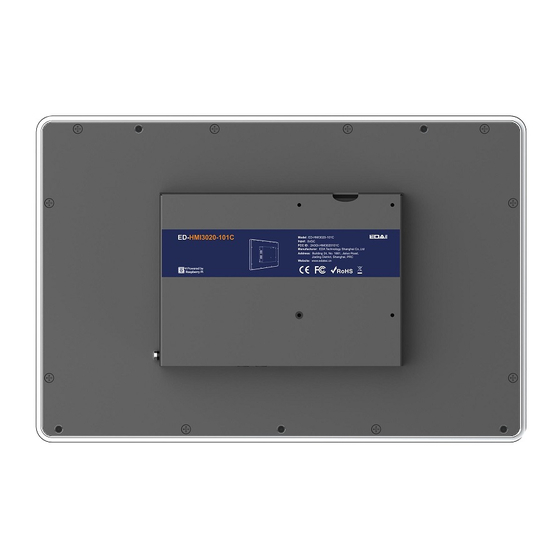

- Page 1 ED-HMI3020-101C Application Guide EDA Technology Co., LTD March 2024...
- Page 2 IOT, industrial control, automation, green energy and artificial intelligence based on Raspberry Pi technology platform. You can contact us in the following ways: EDA Technology Co.,LTD Address: Building 29, No.1661 Jialuo Highway, Jiading District, Shanghai Mail: sales@edatec.cn...
- Page 3 Copyright Statement ED-HMI3020-101C and its related intellectual property rights are owned by EDA Technology Co.,LTD. EDA Technology Co.,LTD owns the copyright of this document and reserves all rights. Without the written permission of EDA Technology Co.,LTD, no part of this document may be modified, distributed or copied in any way or form.
- Page 4 EDA Technology Co.,LTD does not guarantee that the information in this manual is up to date, correct, complete or of high quality. EDA Technology Co.,LTD also does not guarantee the further use of this information. If the material or non-...
-
Page 5: Reader Scope
ED-HMI3020-101C to help users understand the overall system parameters of the products. This document introduces the appearance, installation, startup ED-HMI3020-101C User Manual and configuration of ED-HMI3020-101C to help users use the product better. This document introduces downloading OS file, flashing to SD ED-HMI3020-101C Application Guide card, Firmware Update, and Configuring booting from SSD of ED- HMI3020-101C to help users use the product better. -
Page 6: Related Agreement
Related Agreement Symbolic Convention Symbolic Instruction Prompt symbols, indicating important features or operations. Notice symbols, which may cause personal injury, system damage, or signal interruption/loss. Warning symbols, which may cause great harm to people. -
Page 7: Safety Instructions
Safety Instructions This product should be used in an environment that meets the requirements of design specifications, otherwise it may cause failure, and functional abnormality or component damage caused by non-compliance with relevant regulations are not within the product quality assurance scope. ... -
Page 8: Table Of Contents
Flashing to SD Card ......................1-3 Firmware Update ..........................2-1 Configuring booting from SSD (optional) ..................3-1 Flashing to SSD ........................ 3-2 3.1.1 Flashing through an SSD box ..................3-2 3.1.2 Flashing on ED-HMI3020-101C ................. 3-5 Setting BOOT_ORDER ....................3-11... -
Page 9: Installing Os
1 Installing OS 1 Installing OS This chapter introduces how to download OS file and flash to SD card. Downloading OS File Flashing to SD Card ED-HMI3020-101C Application Guide... -
Page 10: Downloading Os File
1 Installing OS 1.1 Downloading OS File If the operating system is damaged during use, you need to re-download the latest version of OS file and flash to SD card. The download path is: ED-HMI3020-101C/raspios. ED-HMI3020-101C Application Guide... -
Page 11: Flashing To Sd Card
1.2 Flashing to SD Card ED-HMI3020-101C starts the system from the SD card by default. If you want to use the latest OS, you need flash OS to the SD card. It is recommended to use the Raspberry Pi tool, and the download... - Page 12 1 Installing OS Hold the SD card and pull it out. ED-HMI3020-101C Application Guide...
- Page 13 According to the prompt, select the downloaded OS file under the user-defined path and return to the main page. Click "CHOOSE STORAGE", select the SD card of ED-HMI3020-101C in the "Storage" pane, and return to the main page. Click “NEXT”, select "NO " in the pop-up “Use OS customization?” pane.
- Page 14 1 Installing OS Select “YES” in the pop-up “Warning” pane to start writing the image. After the OS writing is completed, the file will be verified. ED-HMI3020-101C Application Guide...
- Page 15 1 Installing OS After the verification is completed, click “CONTINUE” in the pop-up “Write Successful” box. Close Raspberry Pi Imager, remove the card reader. 10. Insert the SD card into ED-HMI3020-101C, and power on again. ED-HMI3020-101C Application Guide...
-
Page 16: Firmware Update
2 Firmware Update 2 Firmware Update After the system starting normally, you can execute the following commands in the command pane to upgrade the firmware and optimize the software functions. sudo apt update sudo apt upgrade ED-HMI3020-101C Application Guide... -
Page 17: Configuring Booting From Ssd (Optional)
3 Configuring booting from SSD (optional) 3 Configuring booting from SSD (optional) This chapter introduces the steps to configure booting from SSD. Flashing to SSD Setting BOOT_ORDER ED-HMI3020-101C Application Guide... -
Page 18: Flashing To Ssd
SSD before using. NOTE: If there is an SD card in ED-HMI3020-101C, the system will boot from the SD card by default. 3.1.1 Flashing through an SSD box You can flash to SSD through an SSD box on a windows PC. It is recommended to use the Raspberry... - Page 19 4. According to the prompt, select the downloaded OS file under the user-defined path and return to the main page. 5. Click "CHOOSE STORAGE", select the SSD of ED-HMI3020-101C in the "Storage" pane, and return to the main page. 6. Click “NEXT”, select "NO " in the pop-up “Use OS customization?” pane.
- Page 20 3 Configuring booting from SSD (optional) 7. Select “YES” in the pop-up “Warning” pane to start writing the image. 8. After the OS writing is completed, the file will be verified. ED-HMI3020-101C Application Guide...
-
Page 21: Flashing On Ed-Hmi3020-101C
1. Unzip the downloaded OS file (“.zip” file), obtain the “.img” file, and store it in an specified directory of local PC, such as Desktop. 2. Use the SCP command on Windows PC to copy the OS file (.img) to ED-HMI3020-101C. Enter Windows+R to open the run pane, enter cmd, and press Enter to open the command pane. - Page 22 Desktop\2024-01-10-ed-HMI3020-101C_raspios-bookworm-arm64_stable.img: Indicating storage path of “.img” file on windows PC. Pi: Indicating the storage path of “.img” file on ED-HMI3020-101C (the path where the “.img” file is stored after copying is completed). 192.168.168.155: The IP address of ED-HMI3020-101C ...
- Page 23 3 Configuring booting from SSD (optional) 5. Click “CHOOSE DEVICE”, select “Raspberry Pi 5” in the pop-up “Raspberry Pi Device” pane. 6. Click “CHOOSE OS”, select "Use Custom " in the pop-up “Operating System” pane. ED-HMI3020-101C Application Guide...
- Page 24 7. According to the prompt, select the downloaded OS file in “Select image” pane, and return to the main page. 8. Click "Open" to return to the main page. 9. Click "CHOOSE STORAGE", select the SSD of ED-HMI3020-101C in the "Storage" pane, and return to the main page. ED-HMI3020-101C Application Guide...
- Page 25 3 Configuring booting from SSD (optional) 10. Click “NEXT” and select “NO” in the pop-up “Use OS customization?”. 11. Select “YES” in the pop-up “Warning”. 12. Enter password (raspberry) in the pop-up “Authenticate”, and then click “Authenticate” to start writing the OS. ED-HMI3020-101C Application Guide...
- Page 26 13. After the OS writing is completed, the file will be verified. 14. After the verification is completed, input password (raspberry) in the pop-up “Authenticate”, and then click “Authenticate”. 15. In the pop-up “Write Successful” prompt box, click “CONTINUE”, then close Raspberry Pi Imager. ED-HMI3020-101C Application Guide 3-10...
-
Page 27: Setting Boot_Order
3 Configuring booting from SSD (optional) 3.2 Setting BOOT_ORDER If ED-HMI3020-101C contains an SD card, the system will boot from the SD card by default. If you want to set booting from SSD, you need to configure BOOT_ORDER property, which sets booting from SSD by default when no SD card is inserted). - Page 28 3. Input Ctrl+X to exit editing mode. 4. Input Y to save the file, then press Enter to exit to the main page of command pane. 5. Power off ED-HMI3020-101C and pull out the SD card. 6. Power on ED-HMI3020-101C to restart the device.
