Recommendations on Wiring During Installation

When the device is installed, the connected cables are bundled on the cable binding frame of the cabinet through
the cable management bracket. Choose upper or lower wiring according to the actual situation of the equipment
room. Arrange and place all cable connectors at the bottom of the cabinet (not outside the cabinet where it is
easy to be touched). The power cables are routed from the side of the cabinet. Choose upper or lower wiring
according to the actual situation of the equipment room (locations of DC power distribution box, AC socket, and
lightning resistant box.
⚫ Requirements for minimum bending radius of cables
After power cords, communication cables, and flat cables are laid and fixed, their bending radius should
○
be more than 5 times the outer diameter of the cables. For the cables that are often bent and plugged,
their bending radius should be more than 7 times the outer diameter of the cables.
After common coaxial cables are laid and fixed, their bending radius should be more than 7 times the
○
outer diameter of the cables. For the cables that are often bent and plugged, their bending radius should
be more than 10 times the outer diameter of the cables.
The bending radius of high-speed cables (such as SFP+ cables) should be more than 5 times the outer
○
diameter of the cables. For the cables that are often bent and plugged, their bending radius should be
more than 10 times the outer diameter of the cables.
⚫ Precautions for Cable Bundling
Before bundling the cables, the labels need to be filled in correctly and affixed to the appropriate positions
○
of the cables.
After the cables are bundled in the cabinet, they should be straight and neatly bundled without twisting
○
or bending, as shown in

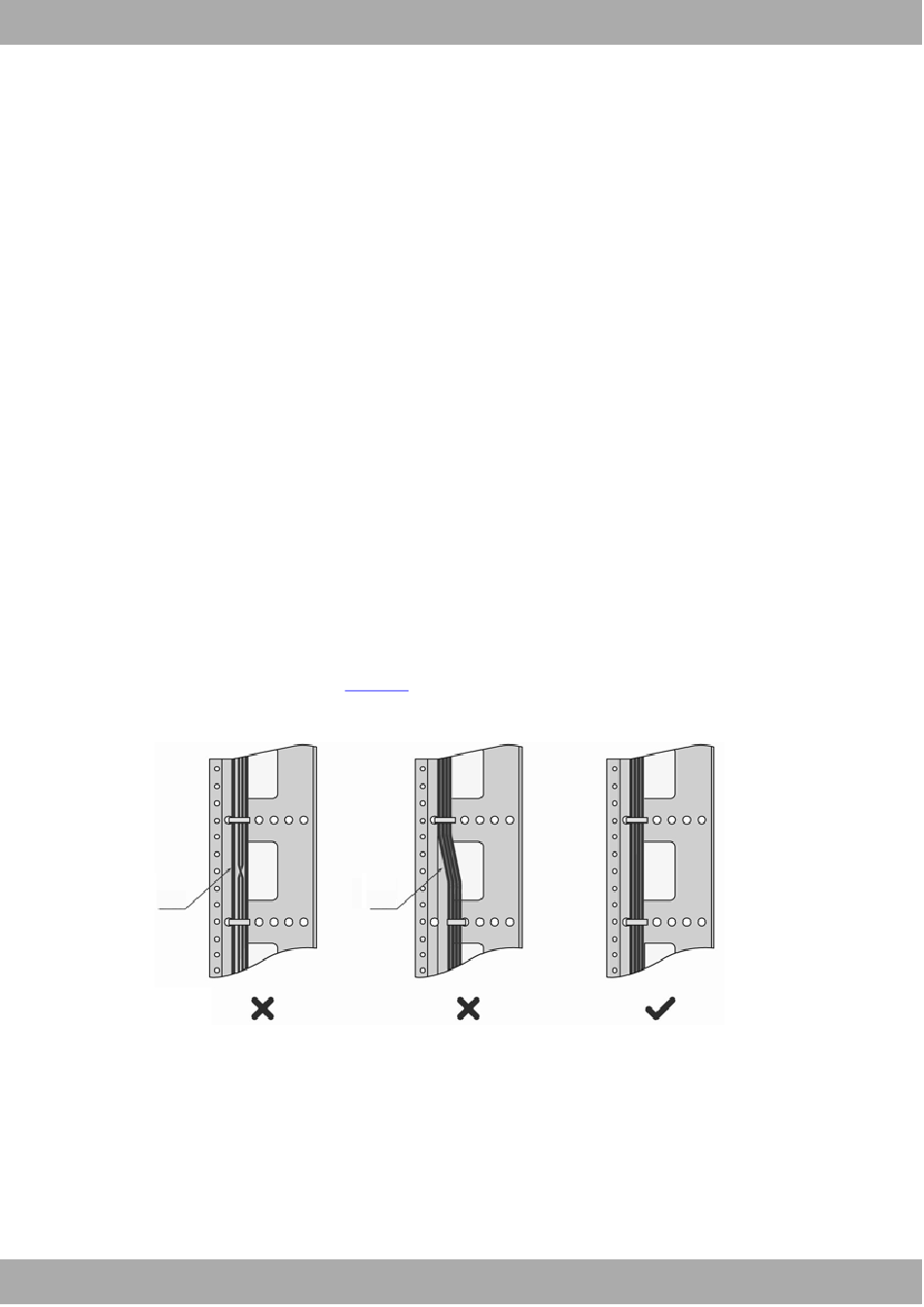

Cable bundling diagram (1)
Figure 7-4
Twisted
Different types of cables (power cables, signal cables, such as ground cables) should be routed and
○
bound separately in the cabinet. Do not mix them. When the distance is short, cross wiring can be used.
When deploying cables in parallel, the distance between the power cord and the signal cable should not
be less than 30 mm.
The cable binding frames and cable troughs inside and outside the cabinet should be smooth without
○
sharp edges and corners.
WAP840-Iax Access Points
Access Point Hardware Installation and Reference Guide
Figure 7-4.
Bending
