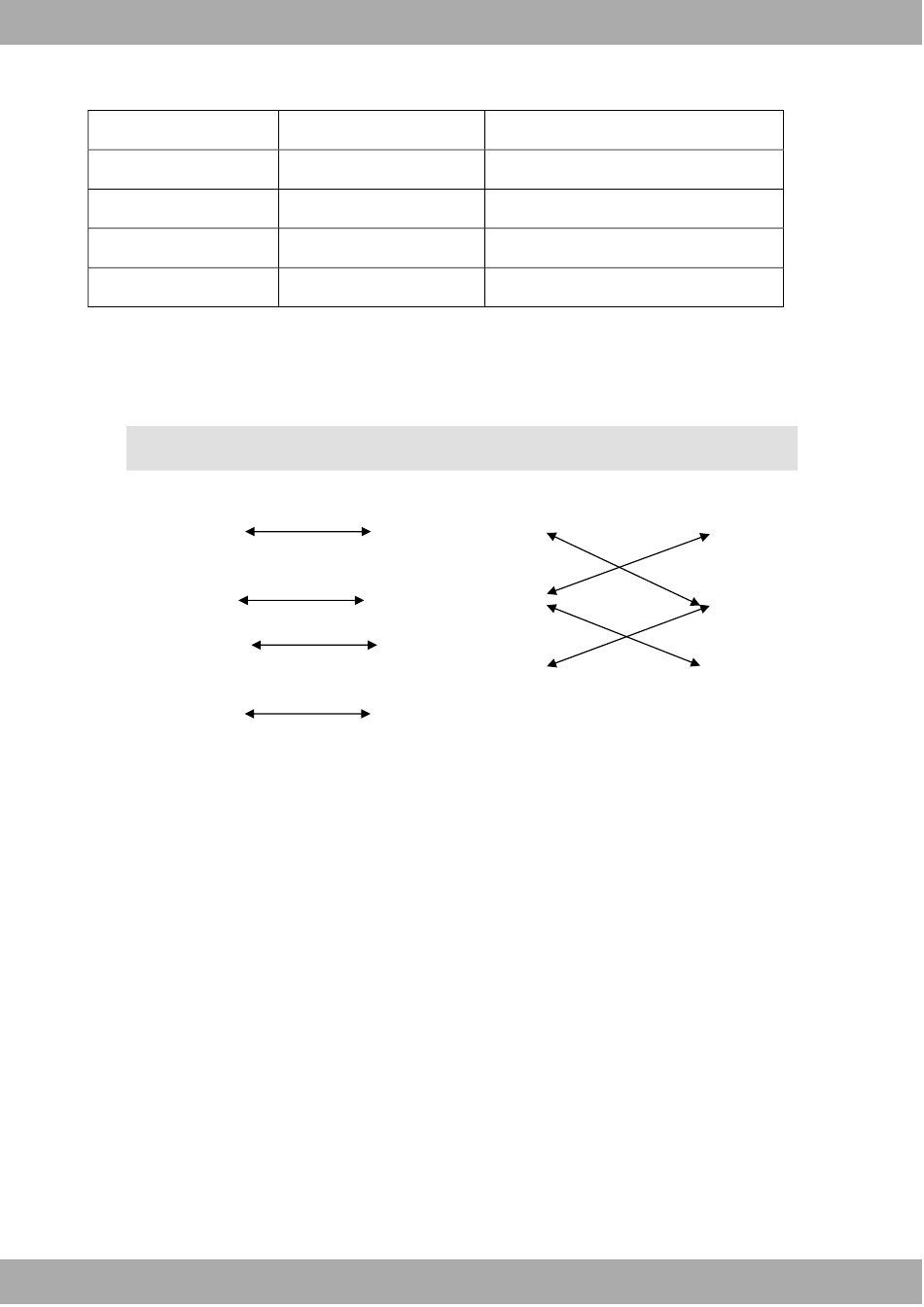

The following are the possible connection methods of straight-through and cross twisted pairs for 100BASE-
TX/10BASE-T:
Connections for 100BASE-TX/10BASE-T
Figure 7-3
Straight-through Cable
Switch
1 IRD +
+
2 IRD -
3 OTD +
+
6 OTD -
WAP840-Iax Access Points
Input Receive Data+
Input Receive Data-
Output Transmit Data+
Output Transmit Data-
Not Used
Switch
1 OTD
2 OTD -
3 IRD
6 IRD -
Access Point Hardware Installation and Reference Guide
Output Transmit Data+
Output Transmit Data-
Input Receive Data+
Input Receive Data-
Not Used
Cross Connection
Switch
1 IRD +
2 IRD -
3 OTD +
6 OTD -
Switch
1IRD +
2IRD -
3 OTD +
6OTD +
