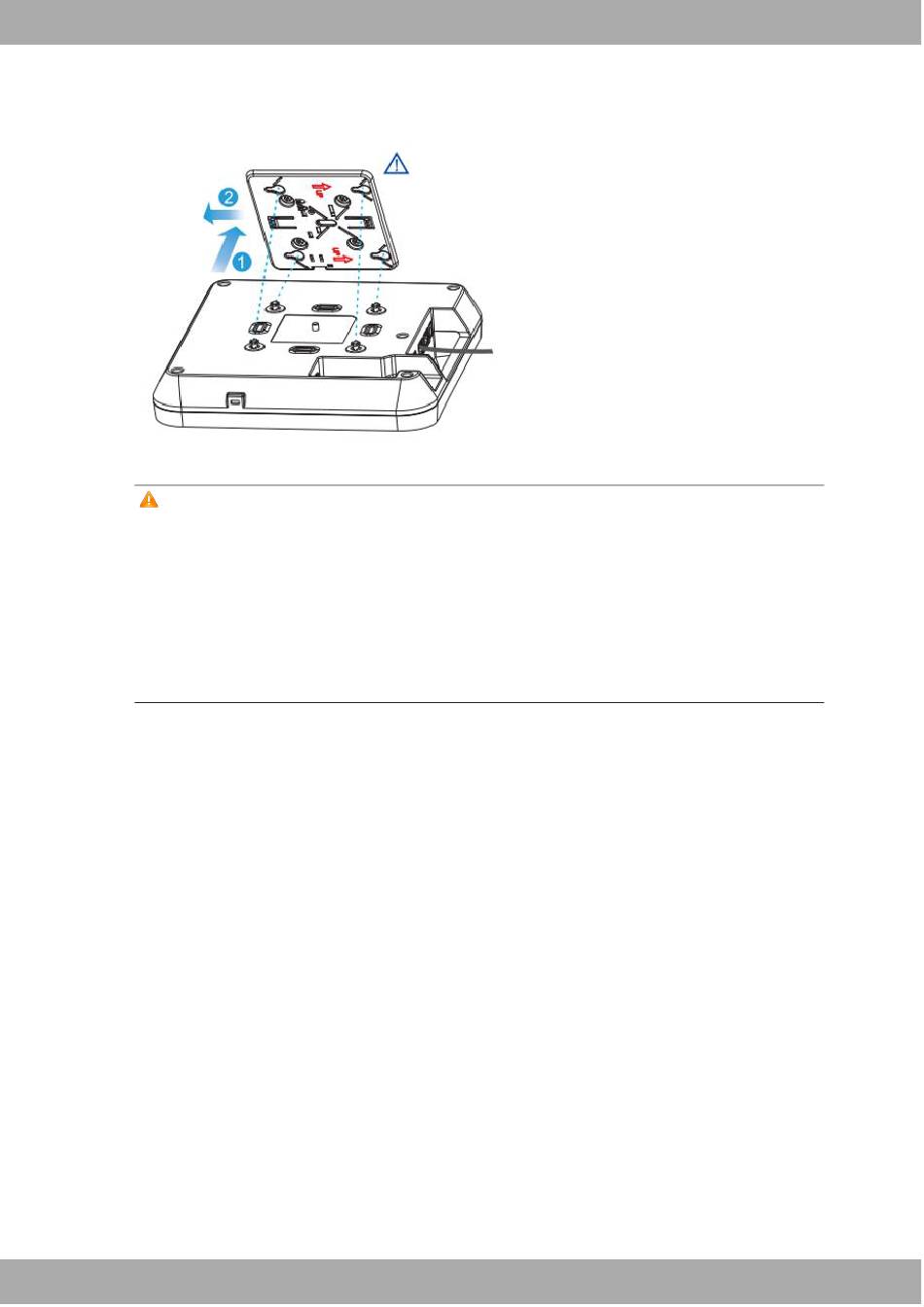

Buckling AP into mounting plate
Figure 3-4
Caution
⚫ The mounting plate of this master AP supports four installation directions. When installing the master AP in
the mounting plate, you can choose one of the directions to install the master AP according to the network
cable wiring.
⚫ During installation, slide and fasten the master AP along the direction of the installation guide holes on the
mounting plate. Do not forcibly push the master AP into the buckle of the mounting plate.
⚫ After installation, carefully check whether the master AP is fastened, so as to prevent the master AP from
falling.
3.4.2

Wall-Mounted

(1) Drill 4 mounting holes with a diameter of 6.5 mm on the wall, and the center distance of the mounting holes
is 53 mm. The arrow direction on the mounting plate is upwards. After tapping the anchors into the mounting
holes, screw the mounting plate in and fix it.
WAP840-Iax Access Points
Access Point Hardware Installation and Reference Guide
The master AP can face
four directions according
to the actual situation to
facilitate network cable
wiring.
