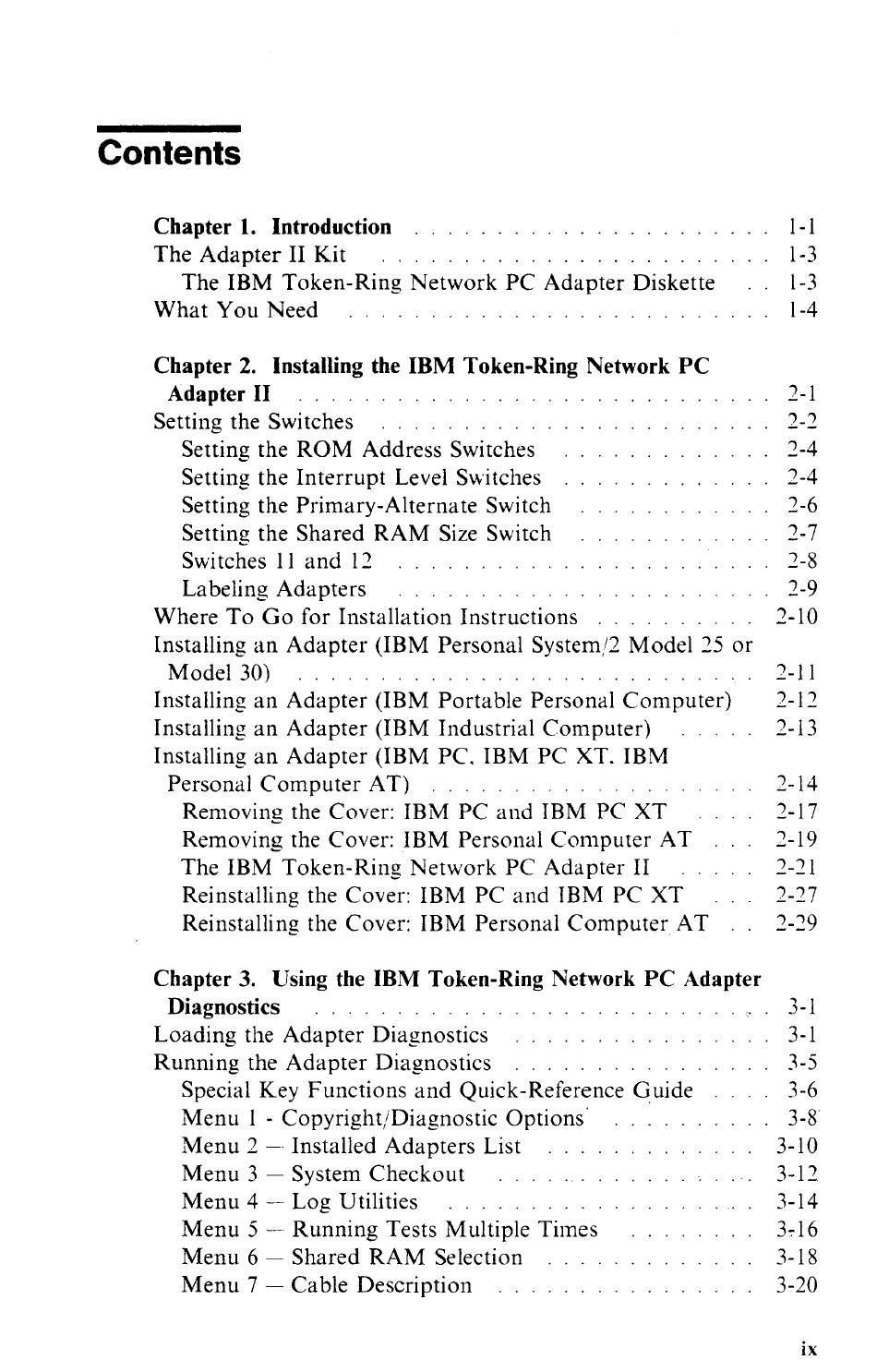

Contents
Chapter 1. Introduction . . . . . . . . . . . . . . . . . . 1-1
The Adapter II Kit . . . . . . . . . . . . . . . . . . . . 1-3
The IBM Token-Ring Network PC Adapter Diskette 1-3
What You Need . . . . . . . . . . . . . . . . . . . . 1-4
Chapter 2. Installing the IBM Token-Ring Network PC
Adapter II . . . . . . . . . . . . . . . 2-1
Setting the Switches . . . . . . . . . . . 2-2
Setting the ROM Address Switches 2-4
Setting the Interrupt Level Switches 2-4
Setting the Primary-Alternate Switch 2-6
Setting the Shared RAM Size Switch 2-7
Switches 11 and 12 . . . . . . . . . 2-8
Labeling Adapters . . . . . . . . . 2-9
Where To Go for Installation Instructions 2-10
Installing an Adapter (IBM Personal System/2 Model 25 or
Model 30) . . . . . . . . . . . . . . . . . . . . 2-11
Installing an Adapter (IBM Portable Personal Computer) 2-12
Installing an Adapter (IBM Industrial Computer) 2-13
Installing an Adapter (IBM PC, IBM PC XT. IBM
Personal Computer AT) . . . . . 2-14
Removing the Cover: IBM PC and IBM PC XT 2-17
Removing the Cover: IBM Personal Computer AT 2-19
The IBM Token-Ring Network PC Adapter II
2-21
Reinstalling the Cover: IBM PC and IBM PC XT 2-27
Reinstalling the Cover: IBM Personal Computer AT 2-29
Chapter 3. Using the IBM Token-Ring Network PC Adapter
Diagnostics 3-1
Loading the Adapter Diagnostics . . . . . . . . . . . 3-1
Running the Adapter Diagnostics . . . . . . . 3-5
Special Key Functions and Quick-Reference Guide 3-6
Menu 1 - Copyright/Diagnostic Options' 3-8
Menu 2 - Installed Adapters List 3-10
Menu 3 - System Checkout 3-12
Menu 4 - Log Utilities 3-14
Menu 5 - Running Tests Multiple Times 3-:-16
Menu 6 - Shared RAM Selection 3-18
Menu 7 - Cable Description 3-20
ix
