50 Appendix B: Technical information

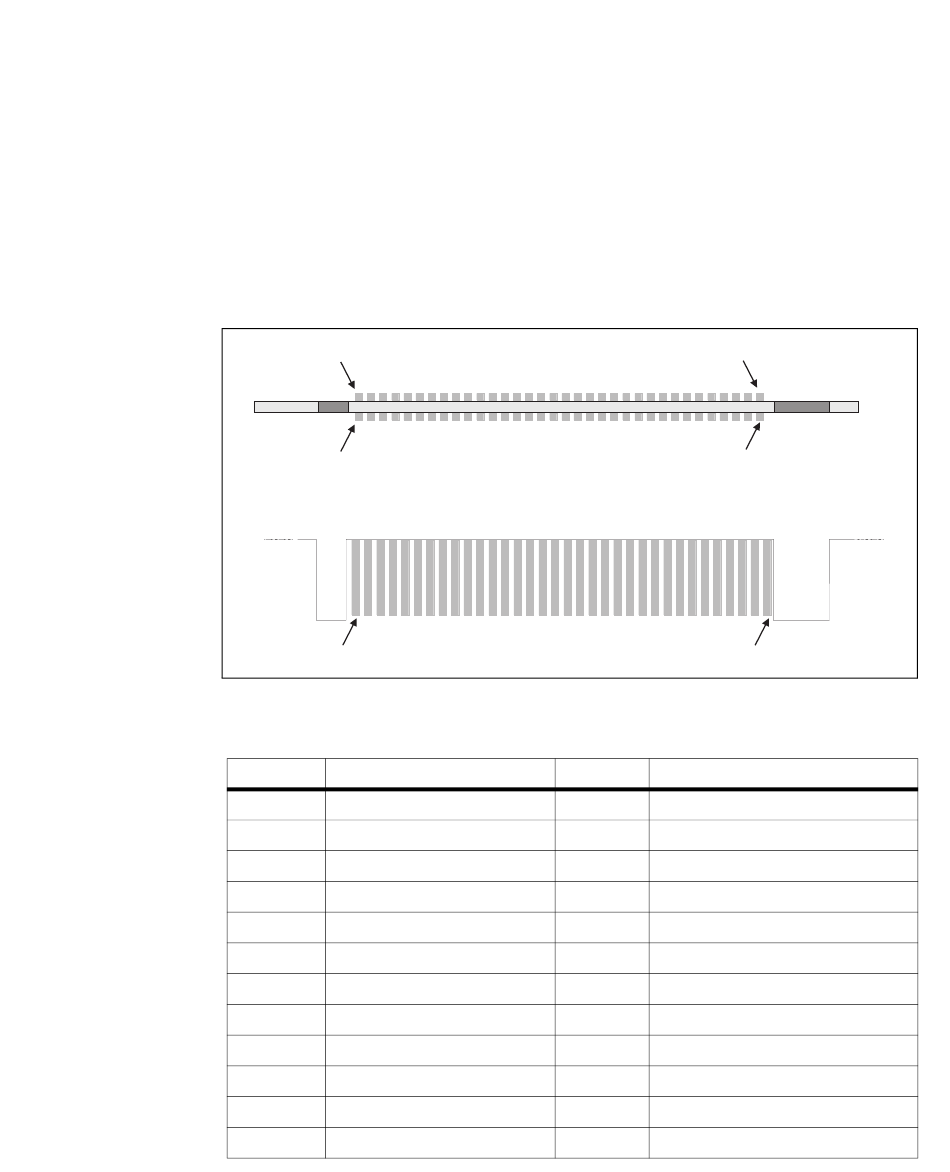

VMChannel interface connector

The VMChannel interface allows Matrox Meteor-II to share data with any Matrox
imaging board that has a VMChannel interface capable of performing the bus
controller function. The VMChannel interface is only available on the PCI form
factor.
A VMChannel backplane (available with the GEN-BUS/... interconnect kits)
must be inserted across the VMChannel interfaces of the boards.
pin 34
pin 68
pin 68
The following table provides the pinout of the VMChannel interface:
Pin Signal
1 SAN
2 N/C*
3 BSN[0]
4 DGND
5 CONTROL
6 N/C*
7 CLK
8 VMSENSE
9 MASK0
10 DGND
11 DATA[1]
12 DATA[2]
top view of board
(component side)
side view of board
(component side)
Pin
35
36
37
38
39
40
41
42
43
44
45
46
pin 1
pin 35
pin 35
Signal
N/C*
DGND
BSN[1]
SNRDYN
DGND
DGND
DGND
DGND
MASK1
DATA[0]
DGND
DATA[3]
