18 Chapter 2: Hardware installation
c. Connect the expanded connectors to the 50-pin auxiliary I/O connector on the

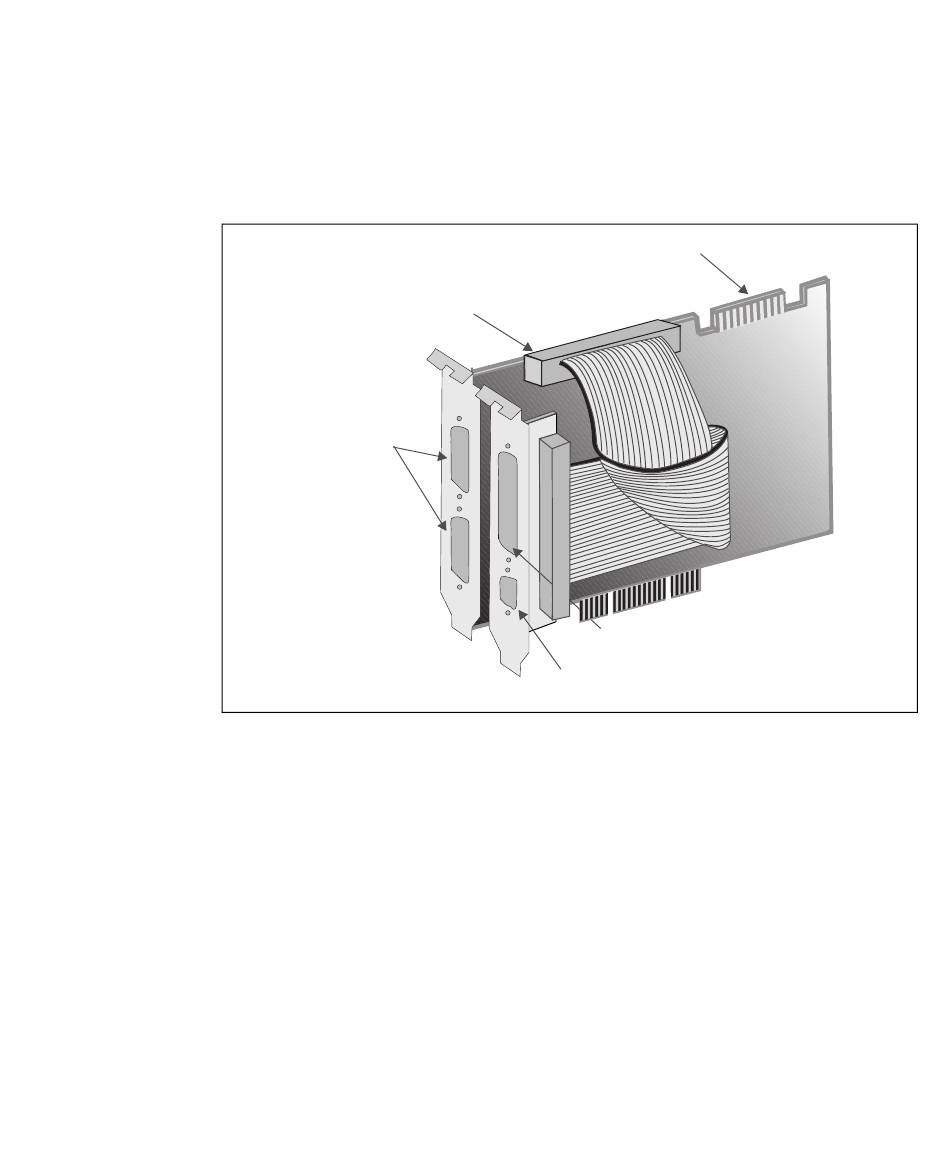

Matrox Meteor-II /Camera Link board using the ribbon cable (see figure
below). Make sure to align the red stripe on the ribbon cable with pin 1of the
auxiliary sync and control connector.
Auxiliary
I/O connector
Camera Link
connectors
d. Replace the cover of your computer.
e. Connect your video sources. For details, see the Connecting external devices
section.
f. Turn on your computer.
In some cases, when you boot your computer, Windows' Plug-and-Play system
will detect a new PCI card and you will be asked to assign a driver to it. At this
point, you should click on Cancel because the driver will be installed during the
installation of MIL or one of its derivatives.
VMChannel
Auxiliary sync and
control connector
Trigger input
connector
