Matrox Meteor-II/Camera Link Installation And Hardware Reference page 21

Connecting external devices 21

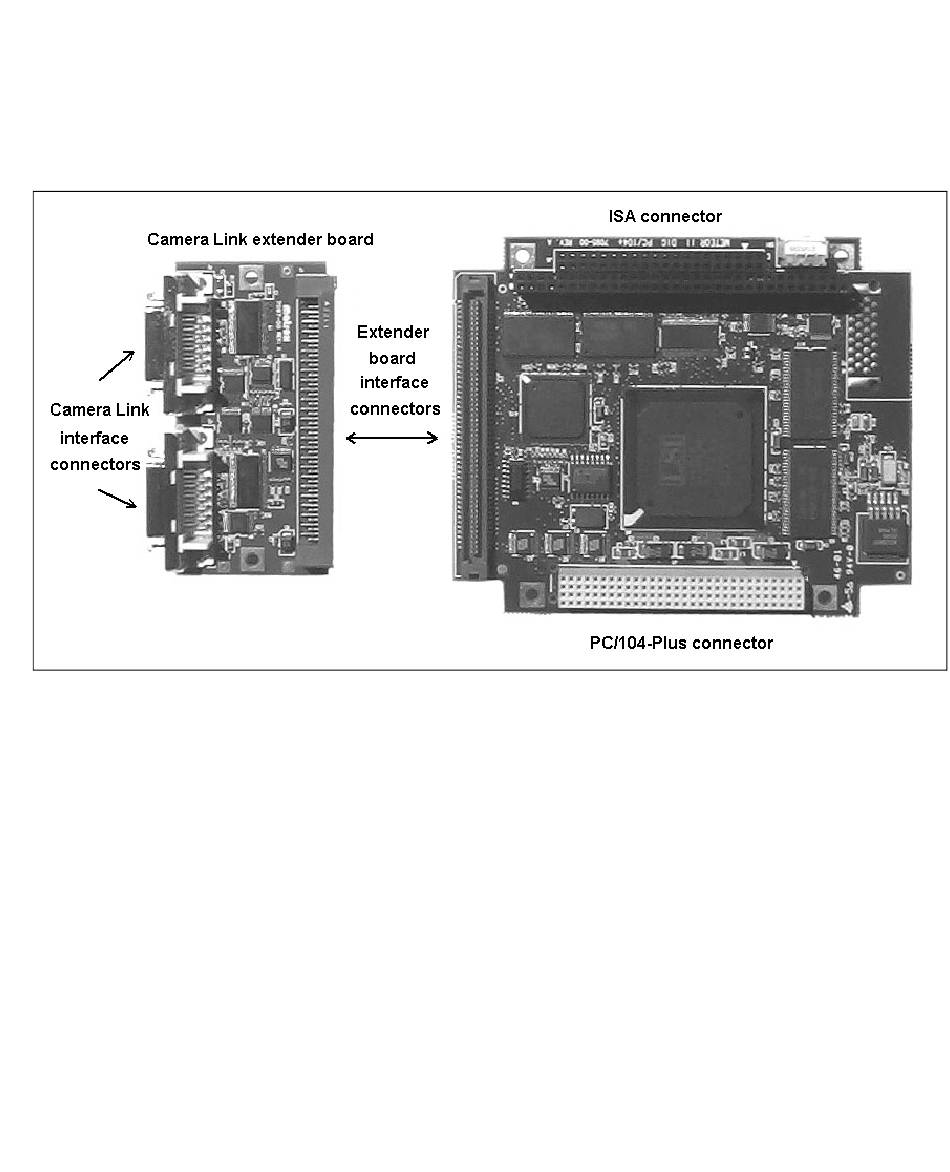

• Extender board interface connectors. Two connectors used to attach the extender
board. These 100-pin connectors, are linked together by a ribbon cable inside
Matrox 4Sight-II.
Important Synchronization and control signals are acessible using the Video input connector
(Video in) on Matrox 4Sight-II. See the 4Sight-II Installation and Hardware
Reference manual for pinout information.
Connecting a video input to Matrox Meteor-II /Camera Link for
PC/104-Plus
Connect video sources to the board's Camera Link connectors, using the Camera
Link cable, available from your camera manufacturer or from 3M Interconnect
Solutions for Factory Automation. See Appendix B for the Camera Link
connectors pinout.
