Connecting external devices

Matrox Meteor-II /Camera Link for PCI

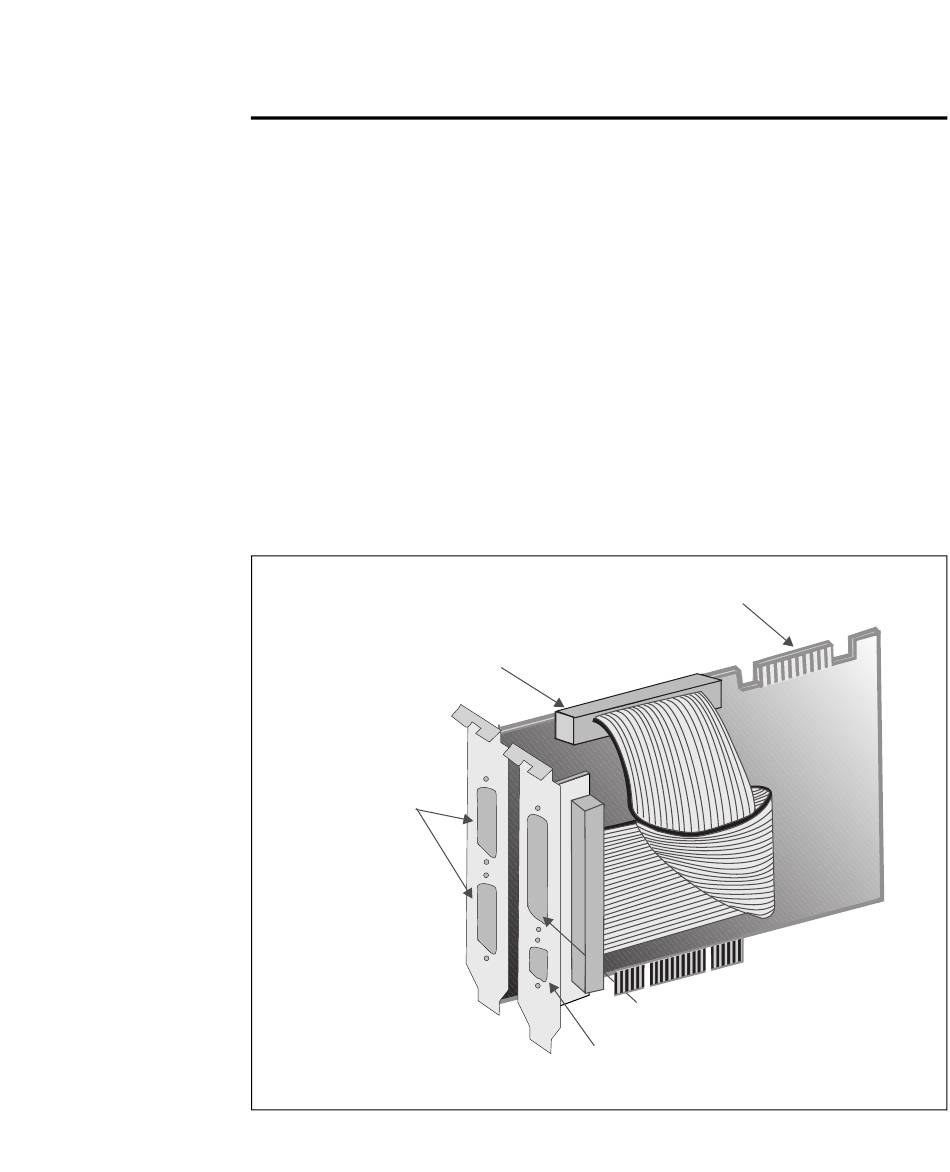

Matrox Meteor-II /Camera Link for PCI has five connectors, which are indicated
in the diagram below. All these connectors are discussed in detail in Appendix B.
• Two Camera Link interface connectors (video input connectors). Each connector
is used to send camera control signals, receive video data and synchronization
signals, and send/receive serial communication signals.
• Trigger input connector. Used for TTL, LVDS, or opto-isolated trigger input.
• Auxiliary sync and control connector. Used to send synchronization signals, as
well as send and receive control signals.
• VMChannel. Used to send data to another Matrox board.
Camera Link
connectors
Auxiliary
I/O connector
Trigger input
connector
Connecting external devices
VMChannel
Auxiliary sync and
control connector
19
