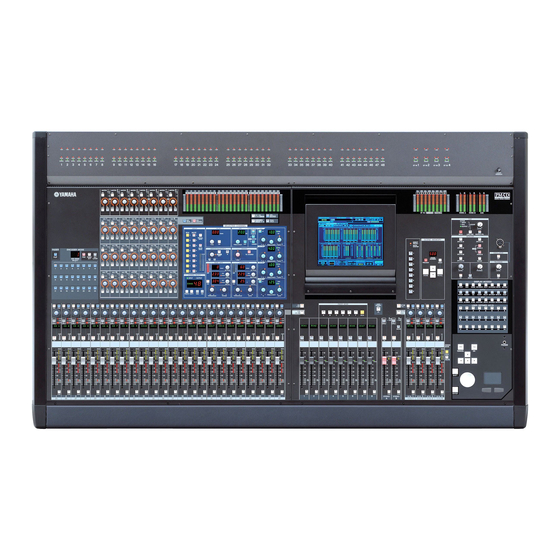

Yamaha PM5D Supplementary Manual

System software v1.05.
Hide thumbs
Also See for PM5D
User manual - 408 pages
Owner's manual - 367 pages
Setup manual - 35 pages


Advertisement

PM5D V1.05 Supplementary Manual
PM5D system software V1.05 includes the following changes and additions relative to V1.04.
Use ENCODER [ON] keys to turn
phantom power (+48V) on/off
A "USE ENCODER-ON AS +48V" option has been added
to the PREFERENCE 1 screen. If this option is on, and HA
(head amp input sensitivity) is selected as the encoder
mode, you can use the ENCODER [ON] key located above
each encoder to turn phantom power supply (+48V) on/
off.
Switch parameter value indication
on/off in the Name display
A "CHANNEL NAME NUMERIC DISPLAY" field has
been added to the PREFERENCE 2 screen. In V1.04 and
earlier, operating the fader or encoder (pan setting) of
each channel caused the name display to show the value of
that parameter. In V1.05, turning the "ENCODER
VALUE" and "FADER VALUE" options off will prevent
the respective parameter value from appearing when you
operate the fader or encoder.
Select the monitor source from
the panel
When selecting a monitor source from the panel in V1.04
or earlier, you could simultaneously select one source from
[2TR A1]–[2TR D3] or [DEFINE] and one source from
[STEREO A]/[STEREO B] (including LCR), for a
maximum total of two sources. In V1.05, turning on one
key will turn off the other keys, allowing you to select a
single monitor source more rapidly. If you want to select
two sources simultaneously (as in V1.04 and earlier), press
the corresponding panel keys simultaneously, or use the
MONITOR screen.
HA follows Recall Safe on/off
operations
A new SAFE KEY MODE SELECT section has been added
to the RECALL SAFE screen. If you turn on the HA+CH
button, using the [RECALL SAFE] key of the panel or the
RECALL SAFE button in the CH VIEW screen (INPUT
VIEW function) to turn Recall Safe on/off will now also
turn on/off the Recall Safe setting for the HA patched to
the corresponding channel. If the CH button is on, the HA
Recall Safe setting will not be linked.
DCA group name Recall Safe and
Selective Recall can be switched
on/off
A new WITH NAME button has been added to the DCA
area of the RECALL SAFE screen and SELECTIVE
RECALL screen. This allows you to exclude just the DCA
group name from DCA group Recall Safe and Selective
Recall. If the WITH NAME button is on, Recall Safe and
Selective Recall will apply to the DCA group names of
DCA groups for which these functions are on. If the
WITH NAME button is off, DCA group names are
excluded from Recall Safe and Selective Recall.
PLUG-IN parameters added to
Recall Safe and Selective Recall
PLUG-IN parameters have been added to the RECALL
SAFE screen and SELECTIVE RECALL screen. This is to
support plug-in cards (such as Waves Y96K) that will
become available in the future.
EN
