K&H Travel Bike Basket for Pet Assembly Instructions

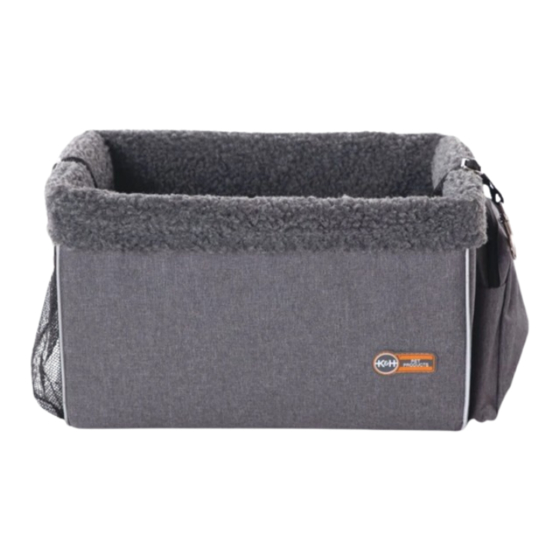

Travel Bike Basket for Pet
Assembly Instructions
Thank you for purchasing the Travel Bike Basket for Pet by K&H Pet Products. When used properly,
your Travel Bike Basket should provide you and your pet years of comfortable and easy travel together.
SMALL Travel Bike Basket recommended for dogs up to 10 LBS. LARGE Travel Bike Basket recommended for dogs up to 20 LBS.
ASSEMBLY & INSTALLATION INSTRUCTIONS:
Take the product out of the box and lay all pieces on a flat surface.
1
See Figure 1.
To mount your K&H Travel Bike Basket to your bike's handlebars, first locate
2
the black metal mounting bracket and hold it with the two curved metal sections
facing in the upright position as shown in Figure 2. The two curved sections at
the top will eventually rest onto your handlebars.
Next, locate the two, 3-inch rubber straps with the four holes in them and slide
3
one strap onto one of the curved end pieces of the mounting bracket. Make
sure you slide it through the very bottom 4th hole of the rubber strap.
See Figure 3. Repeat this step on the other side.
Once a rubber strap is on both sides, it is important to now position each of
4
them as shown in Figure 4 before moving on to step 5 below. These straps
will be used later on in the installation process to help secure the metal mounting
bracket to your handlebars.
Next locate the two, 2.5-inch rubber handlebar protection guards and notice
5
there are openings on both ends. Feed one of the open ends of a rubber guard
onto one of the curved end pieces of the mounting bracket. See Figure 5.
For proper positioning, make sure that the open middle channel of the rubber
handlebar guard is in the upright position.
Continue to feed the rubber handlebar guard over the curved end piece and
6
then through the second hole on the other end of the handlebar guard as
shown in Figure 6. It should fit snuggly against the underside curve in the
metal mounting bracket. Repeat this step on the other side. The final and correct
resting position of the rubber handlebar guards is shown in Figure 7.
Next, find the plastic extension piece that has the bolt through the center.
7
This extension piece will attach to the metal mounting bracket that you just
assembled. Holding the metal mounting bracket with the curves in the upright
position again, snap the plastic extension piece onto one of the 4 metal
horizontal crossbars as shown in Figure 8 & 9.
Please note that the plastic extension piece be can mounted two different
ways. It can be flipped either up or down on the horizontal crossbars
depending on which fit works best for your individual bike. You have the
option to rotate the plastic extension piece 180 degrees LATER ON if needed.
See Figure 9.
Now with your bike stabilized, hang the two curved areas of the metal
8
mounting bracket over the FRONT of the handlebars making sure the
rubber handlebar guards stay in place and rest directly onto the handlebars.
These guards will help to keep the metal mounting bracket from slipping, and
also help to protect your handlebars. See Figure 10.
Option to
rotate plastic
extension
piece 180º
if needed
for
better
fit later
on
OVER
Figure 9
Made in China
K&H Pet Products, Central Garden & Pet
Colorado Springs, CO
www.khpet.com l (719) 591-6950
Figure 10
