- Page 1 User Manual & Product Guide Rev. D YJACK Series ® Bluetooth Sensing Technology ®...
-
Page 2: Table Of Contents
Contents Getting Started .............................. 2 Introduction .............................. 2 Safety and Warning Information ......................3 Using your YJACK® Devices ........................... 3 Powering the Device On........................3 Placing the Device on the System ......................4 Status LED: What Does it Mean? ......................6 Changing the Display and Settings on the YJACK VAC®... -
Page 3: Getting Started
Getting Started Introduction Thank you for your purchase of the YELLOW JACKET® YJACK® Series of Bluetooth® Sensing devices. The YJACK® series of devices are the evolution in creating an interconnected and efficient work environment allowing service technicians to work more quickly and precisely in the ever growing and complicated HVAC/R industry. -
Page 4: Safety And Warning Information
Safety and Warning Information ® Use the YJACK Series of Bluetooth sensing devices only as specified in this manual. • Most governments and legal authorities require that HVAC technicians be trained and certified in the safe and proper operation of HVAC tools, such as these instruments. Read the entire User Manual before using the instrument. -
Page 5: Placing The Device On The System
Placing the Device on the System YJACK® Temperature Clamp Depress the clamp handle to open the clamp jaws and attach the clamp to the pipe surface where temperature measurements are desired. For best results, attach the clamp in an area where the clamp jaws have full engagement of the pipe surface. The clamp can be used on pipes up to 1.25 inches in diameter. - Page 6 YJACK VAC® Wireless Vacuum Gauge Remove the red plug from the brass quick coupler nut. Then the device can be attached directly to the side port of a core removal tool or to a system service port. A 5/16” adapter (19121 straight or 19221 90 degree) can be used for systems with 5/16”...
-
Page 7: Status Led: What Does It Mean
YJACK VIEW® app, placing the YJACK PATH® in an area that has direct line-of-sight of the Bluetooth® devices often provides the best results and longest communication ranges. Also keep in mind that there could be obstructions and interference caused by signals not visible. If you believe that you may be experiencing signal interferences, move the YJACK PATH®... -
Page 8: Changing The Batteries
Changing the Batteries Each YJACK® product is powered by (2) AAA batteries housed beneath the removable battery door on the back of the device. Using your finger or a flat blade, pry up on the battery door to remove it from the device. - Page 9 Available Devices Upon selecting Available devices in the app, a list of available devices will appear. If there are no P51-870 TITAN®, TITANMAX™ or YJACK® devices turned on and within range, no devices will be listed, but as these devices are powered on, they will populate on this screen.
- Page 10 Pressure/Temperature Session The Pressure/Temperature session type displays system pressure and temperature measurements, as well as saturation temperatures and superheat/subcooling data. The first time a Pressure/Temperature session is started, the system pressure and temperature measurements will need to be assigned to the specific P51-870 TITAN®...

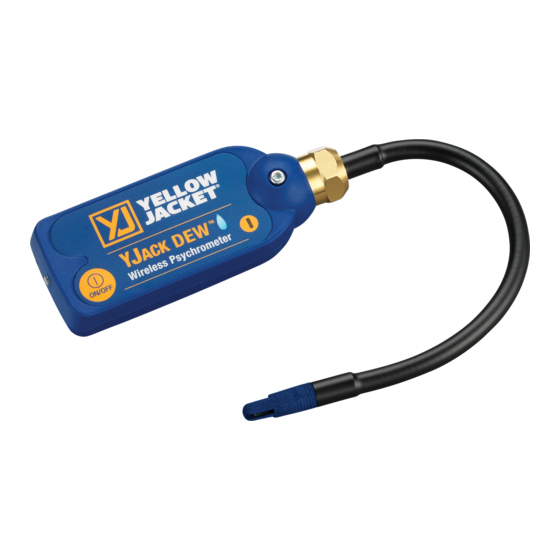

- Page 11 Psychrometric Air Calculations The Psychrometric Air Calculations session type displays relative humidity, dry bulb temperature, wet bulb temperature, and dew point temperature from 2 YJACK DEW® psychrometer probes, great for taking supply air and return air measurements in ventilation systems. The first time a Psychrometric Air Calculations session is started, the supply and return air measurements will need to be assigned to the specific YJACK DEW®...
- Page 12 hold time will begin. If the system maintains the target pressure throughout the duration of the hold time. a message will appear indicating that the target hold time test has completed. The vacuum reading assignment is stored in the app memory for future sessions, but the assignment can be changed at any time by pressing on the system vacuum reading.
- Page 13 Take Report Snapshot Report snapshots can be recorded to log readings during any of the sessions. To take a data “snapshot” (record capture) from within any active session, press on the three-dot icon in the upper right corner of the screen and select “Take Report Snapshot.” From this screen you will Name the snapshoot and be able to pick which job and which report to record the snapshot on.
-
Page 14: Device Specifications
Device Specifications General Device Specifications The following tables outline the specifications for each of the YJACK® products. All YJACK® products have the following features and specifications: Warranty: 2 years IP Rating: IP-52 Battery Type: 2 x AAA (Included) Radio Module System Attachment: Mounting Magnet* Radio Version: Bluetooth 4.2 Compliant Low Energy Bluetooth Range: 400 feet (122 meters) line-of-sight** Communication Interface: YJACK VIEW®... - Page 15 Battery Life 1200 Hours Measurement Range -40°F to 176°F (-40°C to 80°C) Measurement Accuracy +/-1.0 °C TYP* Pipe Diameter - Max 1.25" (32mm) Auto-Off Timer *Results may vary with ambient conditions YJACK® Temperature Strap Specifications 67062 YJACK® Temperature Strap Measurement Type Temperature Weight 0.25 lb (115 g)
- Page 16 YJACK PRESS® Pressure Gauge Specifications 67065 YJACK PRESS® Pressure Gauge Measurement Type Pressure Weight 0.52 lb (235 g) Dimensions 6.5"L x 1.8"W x 2.3"H (165 x 45 x 58mm) Tether Length Operating Temperature 0°F to 130°F (-18°C to 55°C) Storage Temperature -40°F to 130°F (-40°C to 55°C) Battery Life 300+ Hours...
- Page 17 YJACK AMP® Current Probe Specifications 67067 YJACK AMP® Current Probe Measurement Type Electrical Current (Amps) Weight 0.39 lb (180 g) Dimensions 6.5"L x 1.8"W x 1.5"H (165 x 45 x 38mm) Tether Length 12" spriral cable (extends to 72") Operating Temperature -0.4°F to 131°F (-18°C to 55°C) Storage Temperature -22°F to 130°F (-30°C to 55°C)
-
Page 18: Troubleshooting & Faqs
YJACK FLOW™ Anemometer Specifications 67069 YJACK FLOW™ Anemometer Measurement Type Air velocity Weight 0.38 lb (175 g) Dimensions (including wand) 13"L x 1.7"W x 1.4"H (330 x 43 x 36mm) Wand Length 18" (457mm) Fully extended Operating Temperature -0.4°F to 131°F (-18°C to 55°C) Storage Temperature -40°F to 122°F (-40°C to 50°C) Battery Life... - Page 19 Q: Why doesn’t my P51-870 TITAN® show up on the list of available devices within the YJACK VIEW® app? A: The radio inside the P51-870 TITAN® must be programmed with radio firmware version 2.01 or higher. This firmware version includes critical updates for communication with the YJACK VIEW® app. The firmware can be updated over-the-air through a Bluetooth®...
