99 Washington Street
Melrose, MA 02176
Phone 781-665-1400
Toll Free 1-800-517-8431
Visit us at www.TestEquipmentDepot.com

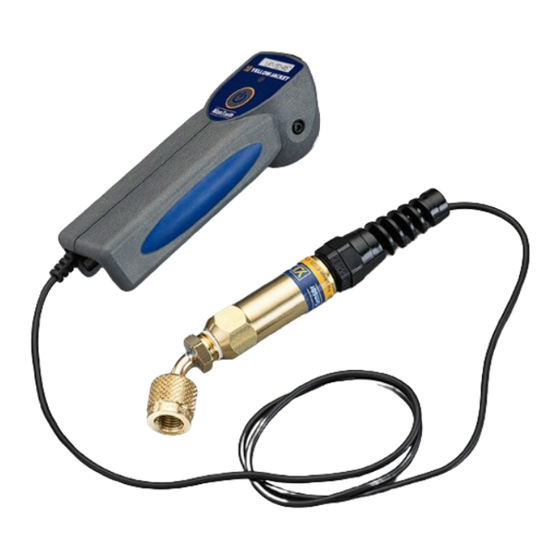

ManTooth
™
Wireless Vacuum Gauge
ManTooth
™
Digital Vacuum & P/T Gauge
Made for iPhone SE, iPhone 6s, iPhone 6,
iPad mini 3, iPad Air, iPad mini 2
-V
-PTV Wireless
User's Manual
"Made for iPhone" and "Made for iPad"
mean that an electronic accessory has been
designed to connect specifically to iPhone,
or iPad, respectively, and has been certified
by the developer to meet Apple
performance standards. Apple is not
responsible for the operation of this device
or its compliance with safety and regulatory
standards. Please note that the use of this
accessory with iPhone, or iPad may affect
wireless performance.
iPhone and iPad Retina are trademarks of Apple Inc.,
registered in the U.S. and other countries. iPad Air
and iPad mini are trademarks of Apple, Inc.
Android and Google Play are trademarks of Google Inc.
The Bluetooth® word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc. and any use
of such marks by Ritchie Engineering is under license.
Other trademarks and trade names are those of their
respective owners.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for yellow jacket ManTooth-V
Summary of Contents for yellow jacket ManTooth-V
- Page 1 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com ManTooth ™ Wireless Vacuum Gauge ManTooth -PTV Wireless ™ Digital Vacuum & P/T Gauge User’s Manual “Made for iPhone” and “Made for iPad” mean that an electronic accessory has been iPhone and iPad Retina are trademarks of Apple Inc., designed to connect specifically to iPhone, registered in the U.S.
-
Page 2: Safety Information
• Use the instrument only as described in To order accessories, receive assistance, or this Users Manual, otherwise the locate the nearest YELLOW JACKET distributor. protection provided by the equipment may be impaired. • Do not use the instrument if it is damaged. - Page 4 Android phone running Android 4. 1 (Jelly Bean) The module will go through a brief start up or later. To connect your ManTooth Module sequence then the light on your ManTooth Module should start to blink blue. This means to your phone or tablet the two must first be that your ManTooth Module is search for available paired to one another.
-
Page 5: General Settings
ManTooth RSA App Android This section will go over the various functions, settings, and procedures of the ManTooth RSA. After pairing your Apple iOS phone or tablet to your ManTooth Module it should show up as “Connected.” On Android devices your ManTooth Module should show up under the If you have not already downloaded the Yellow “Paired Devices”... -
Page 6: Service Management
General Settings Preferences Temperature Preference Set the units that the temperature readings from the temperature sensors, Vapor Saturation, Liquid Saturation, and the values for Superheating and Subcooling are displayed in. Options are degrees Fahrenheit (°F) or degrees Celcius (°C). Default temperature units are degrees Fahrenheit (°F). - Page 7 To return to the previous screen from the one of their devices for improved connectivity. you are currently viewing tap on the icon in the **Note**All ManTooth-V and ManTooth-PTV upper left hand corner. This function is the same modules already have these new radio settings.
-
Page 8: Session Settings
Session Settings To save a “favorite” refrigerant, click on the “star” icon next to the refrigerant. Once a refrigerant is selected as a favorite, the star will Using the correct settings that are specific for turn yellow and that refrigerant will move to the the current system you are servicing will top of the refrigerants list for subsequent ensure the best possible pressure readings as... - Page 9 multiple pieces of equipment associated with them so you can keep track of each individual unit at locations that may have more than one system. Saved session data will be saved to “Service History” in the app’s main menu and sorted first alphabetically by business name or customer last name, then alphabetically by assigned equipment name, and lastly by the date and...
- Page 10 information has been entered, click on the “Save” button to return to the Location/Equipment selection screen. An equipment ID can now be entered. This could be a brief description of the equipment and/or model/serial number. Once the With the location selected, the corresponding equipment information has been entered, click equipment can now be selected.
- Page 11 YJPT-XXXX-XXXX for PT modules or YJG2-XXXX-XXXX for ManTooth-V and ManTooth-PTV modules. Next tap the save icon in the upper right corner of the screen to save the module(s) to the session.
- Page 12 The first time you connect your ManTooth Module(s) to a new phone or tablet you will have to assign the pressure transducers and temperature sensors. These assignments are not permanent and can be changed at anytime. **Note** the pressure transducer in every ManTooth Module is capable of accurately reading pressures up to 700 psia (48.3 bar) and therefore can reliably be used on either the high...
- Page 13 pressure and the refrigerant selected. Temperature To assign temperature readings to either the high or low side simply tap on the box that contains the value you wish to assign and select the sensor that you want to assign to that spot. Subcooling and Superheat To set the subcooling and superheat values tap on the “Subcooling”...
- Page 14 Vacuum Session A preview of the data log is shown, displaying the start and end time of the session. As with To begin a new vacuum session tap on “Vacuum screenshots, notes can be added to the data log files Session”...
-
Page 15: Assign Devices
Target Time (Evacuation) session. Android users will be prompted to “confirm” Click on the value below “Target Time” to establish assignment of the ManTooth Module(s) when using “Quick Start”. the minimum length of time that the target vacuum should persist. Assign Devices Location/Equipment If you want to organize your saved data in “Service... - Page 16 To assign the vacuum or temperature readings simply tap on the box that contains the value you wish to assign and select the sensor that you want to assign to that spot. Evacuation Mode When the target vacuum level has been maintained for the target time, a notification appears stating “TARGET REACHED”...
-
Page 17: Service History
duration (hold time). Click on the value below “Target Vacuum Limit” to establish the maximum allowable vacuum reading during the hold test. Click If the target vacuum limit is not exceeded during the on the value below “Target Duration (Hold Time)” to target duration, a “PASS”... - Page 18 To view saved screenshots and data logs, navigate to ManTooth-V™ Module a specific location and equipment. Once the location and equipment have been selected, a list of all saved data associated with the selected equipment will appear with a time stamp in order of session start date, with the newest session data at the top of the list.
- Page 19 High-Strength Magnet phone or tablet via Bluetooth. The high-strength Neodymium magnet on the ManTooth-V™ Module allows for this module to be Solid Green: The module is connected to a power attached to a metallic surface while taking vacuum source via the Micro USB port and is charging.
- Page 20 disconnecting your ManTooth-PTV™ Module from Vacuum 1 micron, 1 mTorr, 0.001 Torr, the system. Sensing 0.001 mmHg, 0.001 mbar, Resolution 0.0001 kPa, 0.1 Pa ManTooth Thermistor Temperature Clamp Vacuum +/- 20% from 25 microns to The thermistor pipe clamp probe is capable of Sensing 10,000 microns clamping to and measuring the temperature of...
- Page 21 A: The ManTooth PT Modules are NOT compatible with the vacuum gauge. To add vacuum capabilities, Q: What happens to my service history if I get a new you will have to purchase a ManTooth-V™ or phone or tablet? ManTooth-PTV™ Module. **Note** The 67030...
- Page 22 All other YELLOW JACKET products included in this package are guaranteed to be free from Q: What can I do if my ManTooth Module(s) will not material and workmanship defects for a period of one year.
