yellow jacket YJACK Series Quick Start Manual

YJACK™ Series - Bluetooth
67060, 67061, 67062, 67063, 67070, 67071, 40877
Quick Start Guide
Power on YJACK™ devices and place in desired locations throughout
1.
jobsite.
Press and hold the power button
to power the YJACK™ devices
on. Release the power button
when the status indicator LED
illuminates.

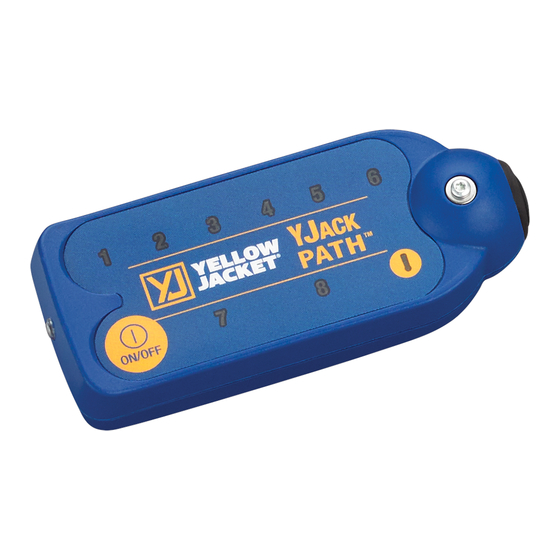

*YJACK PATH™ numeric LEDs 1-8 will
illuminate to indicate the number of YJACK™
and P51-870 TITAN ® devices within range.
Launch the YJACK VIEW™ app and select the devices you would like to
2.
display within the app. There is no Bluetooth
Utilize the session
menu to quickly
navigate between
different session
types.
® Sensing Technology
Remove black vinyl cap covering sensing
element. Form wand to desired shape and
place within ventilation system or wherever
psychrometric data is desired.
Utilize flexible strap to tightly secure
strap clamp to pipe surface where
temperature measurements are desired.
Utilize the app settings
menu to easily change
general settings, select
refrigerants, set elevation,
and create datalogs.
Tap the grey banners to
expand or collapse data
Depress clamp handle to open clamp
jaws and attach clamp to pipe surface
where temperature measurements are
pairing required.
®
sets.
desired.
Tap on each data
view to select
device to be
displayed and
desired view type.
