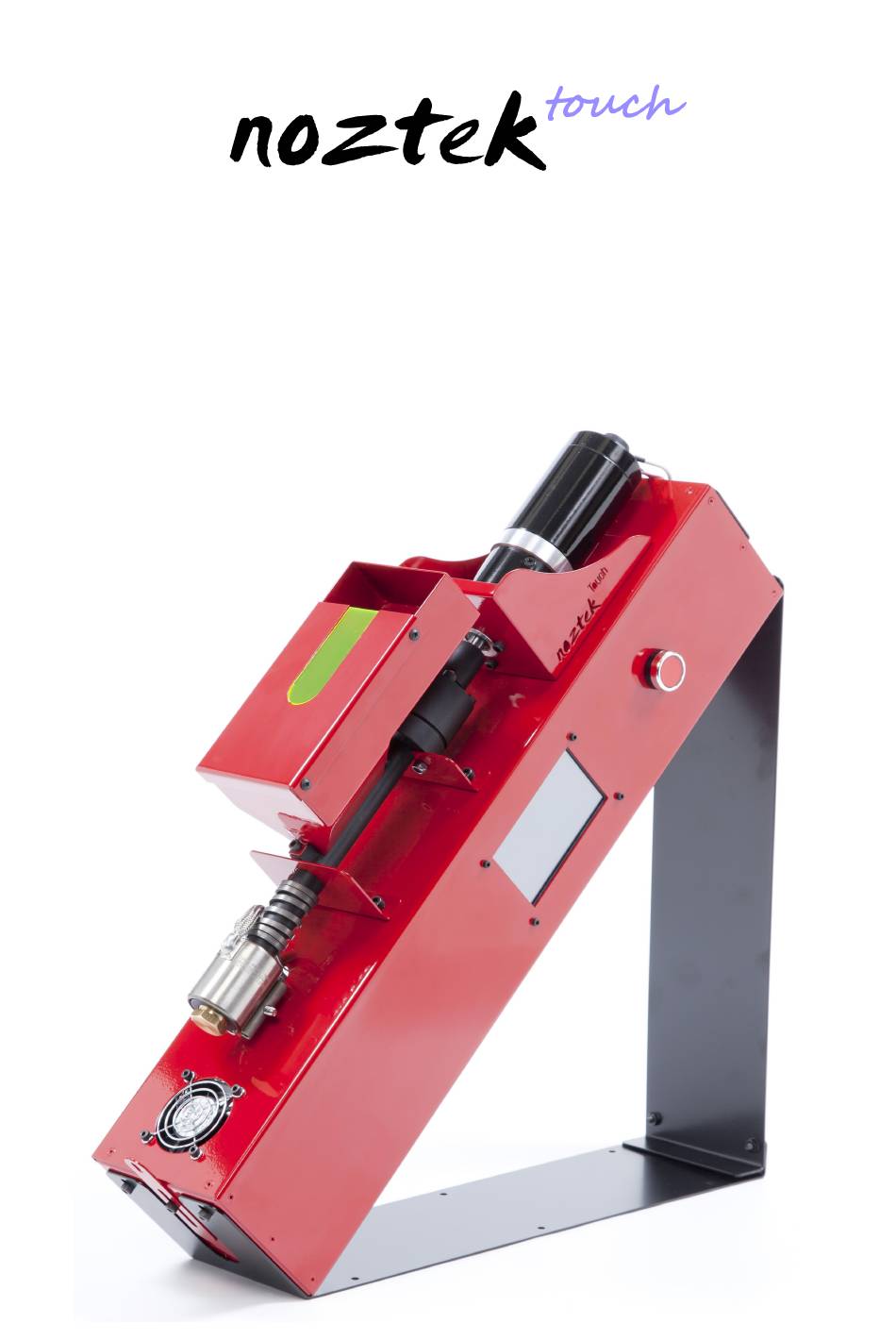

- Page 2 Introduction The Noztek TOUCH/ TOUCH HT, a versatile single screw desktop extruder, has been meticulously designed for the precise production of high-quality filament extrusion. The enhanced features of the Noztek TOUCH/TOUCH HT provide comprehensive control over the extruder, allowing customization to your exact specifications through an intuitive and user-friendly touch screen interface.
-
Page 3: Table Of Contents
Noztek TOUCH/ TOUCH HT extruder Manual WARRANTY • SAFETY CAUTIONS • SAFETY GUIDELINES • PRODUCT SPECIFICATION SHEET 4, 5, 6, 7 • SET-UP INSTRUCTIONS • OPERATION INSTRUCTIONS 9, 10, 11, 12, 13 • MAINTENANCE/ • TROUBLE-SHOOTING CONTACT •... -
Page 4: Warranty
In the rare instance of a covered defect, we offer remedies such as repair or replacement after assessing the reported fault. Noztek have the right to reject any warranty claim if we feel the request falls outside of our limitations Filing a Claim: Need assistance? Our customer support team is ready to help. - Page 5 Safety Caution: Injury Risk This equipment contains moving parts. To prevent injury, keep hands, fingers, and other body parts clear during operation. Avoid wearing loose clothing or jewellery that may become entangled in moving components. Tie back long hair and secure loose items before using the equipment. Always follow safety instructions provided in the user manual.
-
Page 6: Safety Guidelines
SAFETY GUIDELINES • Before operating, ensure you have a thorough understanding of the equipment. Carefully review the provided instruction manual for complete guidance. • Understand the proper, safe usage and limitations of the equipment. • Never use this equipment for any purpose other than its intended use. •... -
Page 7: Product Specification Sheet
• Serial Number: See invoice • Date of Manufacture: 2023 2. General Description: The Noztek TOUCH/ TOUCH HT, a versatile single screw desktop extruder, has been meticulously designed for the precise production of high-quality filament extrusion. This extruder's adaptability extends its value across diverse industries, including pharmaceuticals, 3D printing, and the chemical sector, offering a cost-effective and efficient means to shape and process materials into top-tier filaments. - Page 8 The motor's power, coupled with its controlled RPM, contributes to the reliability and performance of the Noztek TOUCH/ TOUCH HT, making it suitable for a wide range of filament production requirements. Multi-Stage Stainless Steel Single Screw: The Noztek TOUCH/ TOUCH HT incorporates a multi-stage stainless steel single screw, designed to enhance the extrusion process.
- Page 9 750 gram maximum, 50 gram minimum. • Extrusion Output Rate: The Noztek TOUCH/TOUCH HT demonstrates an impressive extrusion capacity, capable of producing approximately 1-2 meters of filament per minute. This translates to an estimated output of 60-120 meters or 300 grams of filament per hour.
- Page 10 11. Compliance and Certifications: • CE 12. Technical Support and Contact Information: • info@noztek.com • https://noztek.com/contact/ • 44 (0) 203 384 6208 • Noztek Head office Unit C3 Dolphin Enterprise Centre Evershed Way Shoreham West Sussex BN43 6QB ENGLAND...
-
Page 11: Set-Up Instructions
5 (Optional) USB Connection: To utilize this machine with our Noztek controller software, use the provided A-B USB cable. Connect the cable from the back of the machine to your computer. -
Page 12: Operation Instructions
Considerations such as room humidity, temperature, material humidity, and ensuring the correct temperature settings all play crucial roles. STEP 1. Familiarization: Familiarize yourself with the following; TOUCH SCREEN, EMERGENCY POWER SWITCH, MAINS POWER SWITCH. MAINS POWER SWITCH... - Page 13 Once activated, the Noztek TOUCH/TOUCH HT display will transition to the 'warm-up' screen (see image below). The Noztek TOUCH/TOUCH HT remains on this screen until the heating bands reach the set temperature or until the user manually aborts the heating process. The motor switch activates only after the warm-up phase, ensuring the motor runs safely thereafter.
- Page 14 STEP 3.2. Menu Screen The Menu screen provides users with access to all of The Noztek TOUCH/TOUCH HT settings and additional functionalities, including temperature settings, speed settings, fan settings, and timer settings.
- Page 15 “+” and “-” buttons and then confirming with the “SET” button. To cancel any modifications, press “BACK”. The Noztek TOUCH allows a maximum temperature setting of 300°C for each heater band, while the Noztek TOUCH HT can reach up to 600°C."...
- Page 16 This screen allows the user to set a timer for shutting down the current session. This action does not power off the Touch but stops both the heating and the motor. Users can set the timer using the “+” and “-” buttons and then confirm with the “SET” button.
-
Page 17: Maintenance
If this is not possible, use a wire brush and fine metal pick to clean the threads and screw assembly. If you are unsure how to clean the barrel, please contact the Noztek helpdesk for assistance. Barrel Jam: Depending on the resin type, you may occasionally encounter a barrel jam. -
Page 18: Contact
CONTACT NOZTEK For more in-depth troubleshooting assistance, we encourage you to explore our FAQ help section on our website at www.noztek.com. In the event that your specific query is not addressed within this resource, please do not hesitate to reach out to our dedicated Noztek expert team for direct support and guidance.
