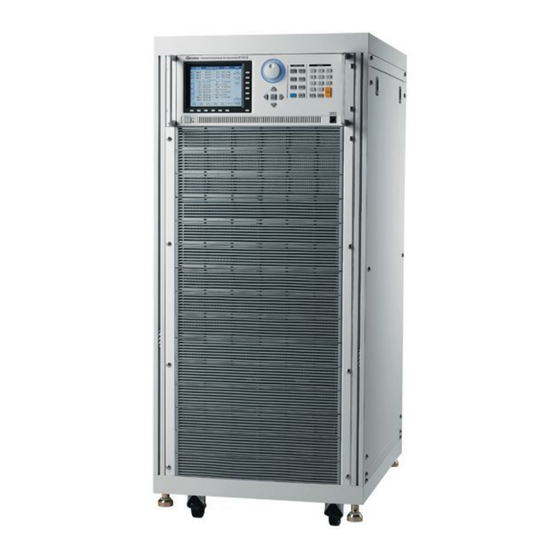

- Page 1 Programmable AC Source 61511/61512/61611/61612 Quick Start Guide...
- Page 3 Programmable AC Source 61511/61512/61611/61612 Quick Start Guide Version 1.0 March 2012 P/N ITM-0124505...
- Page 4 Legal Notices The information in this document is subject to change without notice. Chroma ATE INC. makes no warranty of any kind with regard to this manual, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Chroma ATE INC. shall not be held liable for errors contained herein or direct, indirect, special, incidental or consequential damages in connection with the furnishing, performance, or use of this material.
- Page 5 Any recommendations made by Chroma for use of its products are based upon tests believed to be reliable, but Chroma makes no warranty of the results to be obtained. This warranty is in lieu of all other warranties, expressed or implied, and no representative or person is authorized to represent or assume for Chroma any liability in connection with the sale of our products other than set forth herein.
- Page 6 Material Contents Declaration The recycling label shown on the product indicates the Hazardous Substances contained in the product as the table listed below. : See <Table 1>. : See <Table 2>. <Table 1> Hazardous Substances Lead Mercury Cadmium Hexavalent Polybrominated Polybromodiphenyl Part Name Chromium...
- Page 7 “ ” indicates that the level of the specified chemical substance exceeds the threshold level specified in the standards of SJ/T-11363-2006 and EU 2005/618/EC. Chroma is not fully transitioned to lead-free solder assembly at this moment; however, most of the components used are RoHS compliant.
- Page 8 Failure to comply with these precautions or specific WARNINGS given elsewhere in this manual will violate safety standards of design, manufacture, and intended use of the instrument. Chroma assumes no liability for the customer’s failure to comply with these requirements. BEFORE APPLYING POWER Verify that the power is set to match the rated input of this power supply.
- Page 9 Safety Symbols DANGER – High voltage. Explanation: To avoid injury, death of personnel, or damage to the instrument, the operator must refer to an explanation in the instruction manual. High temperature: This symbol indicates the temperature is now higher than the acceptable range of human. Do not touch it to avoid any personal injury.
-
Page 11: Table Of Contents
Programmable AC Source 61511/61512/61611/61612 Quick Start Guide Table of Contents Introduction ..................1 Product Overview ..............1 Key Features................1 Specification................2 Names of Parts ................. 2 1.4.1 Front Panel ............... 2 1.4.2 Rear Panel................ 5 Installation ..................8 Initial Inspection ................ 8 Preparation for Use.............. -
Page 13: Introduction
Programmable AC Source 61511/61512/61611/61612 Quick Start Guide Introduction 1.1 Product Overview Chroma 61511/61512/61611/61612 Series is a highly efficient programmable AC Source, which provides a low distortion sine wave output for power accuracy. The DSP microprocessor generates an accurate stable output voltage and frequency. The PWM designed power stage allows apparent power into loads. -
Page 14: Specification
Programmable AC Source 61511/61512/61611/61612 Quick Start Guide 1.3 Specification For detail specifications of model 61511/61512/61611/61612, please refere to the User’s Manual in the CD came along with the shipment. 1.4 Names of Parts 1.4.1 Front Panel ⑪ ② ⑦⑧ ⑫... - Page 15 Programmable AC Source 61511/61512/61611/61612 Quick Start Guide Cursor Movement Keys: These four keys move the cursor in different directions. In normal mode, pressing any of these four keys will change the cursor position. SAVE or RECALL: Press this on MAIN PAGE can save the output setting.
- Page 16 Programmable AC Source 61511/61512/61611/61612 Quick Start Guide Indicator: It refers to the description on screen for parameter and function setting. ENTER: It confirms the setting of parameter. Remote Control Terminal: It can work REMOTE with Chroma Digital Controller A615101 CONTROL (optional) for remote control.
-
Page 17: Rear Panel
Programmable AC Source 61511/61512/61611/61612 Quick Start Guide 1.4.2 Rear Panel... - Page 18 Programmable AC Source 61511/61512/61611/61612 Quick Start Guide Figure 1-2 Rear Panel Item Name Description Rear Panel Output It includes Ext.V/TTL, Remote Control, GPIB Interface and USB…etc. It has the input/output terminal. The connector inputs power source from the mains I/O Terminal Case (3-phase power) and outputs power source to the UUT.
- Page 19 Programmable AC Source 61511/61512/61611/61612 Quick Start Guide Remote controller uses GPIB bus to connect GPIB Connector the PC via the connector for remote operation. Select the mapping cable connector for Cable Connector different input cable (Δ-Y). (Note: Not valid for 3-phase voltage input 480Vac (Y: L-L).)
-
Page 20: Installation
Programmable AC Source 61511/61512/61611/61612 Quick Start Guide Installation 2.1 Initial Inspection Before shipment, this instrument was inspected and found to be free of mechanical and electrical defects. As soon as the instrument is unpacked, inspect for any damage that may have occurred in transit. - Page 21 Programmable AC Source 61511/61512/61611/61612 Quick Start Guide 2-2.) Adjust the selector according to the power input (Delta or Y) method. There are two different input voltage ratings. One is WARNING 380 V 3-phase with 5-wire (Y), and the other is 220 V 3-phase with 4-wire (Δ).
- Page 22 Programmable AC Source 61511/61512/61611/61612 Quick Start Guide Installation of the wire must be conducted by professional personnel complying with local electrical codes. If the input wiring selection is 220V 3~ (△ type) Max 120A/Phase, the specification of Circuit Breaker configured for △ type needs to be 220Vac/80A (61511) &...
- Page 23 Programmable AC Source 61511/61512/61611/61612 Quick Start Guide Figure 2-3 3-Phase Power Input Connection (Delta Connection) Please be aware of the color distinction of insulation tube or the wire before connecting the power wire. The black insulation tube or power wire is used for L1, L2...
-
Page 24: Output Connection
Programmable AC Source 61511/61512/61611/61612 Quick Start Guide 2.4 Output Connection The output terminal block is located at the rear of AC Source. The Load is connected to the output terminals. To meet the safety requirements, the I/O input/output wires need to be tied up by a safety strip and the cover must be secured. - Page 25 Programmable AC Source 61511/61512/61611/61612 Quick Start Guide Figure 2-4 Output & Remote Sense Connection I/O Wire Tied Up Strip Figure 2-5 Input/Output Wire Securing Diagram...
