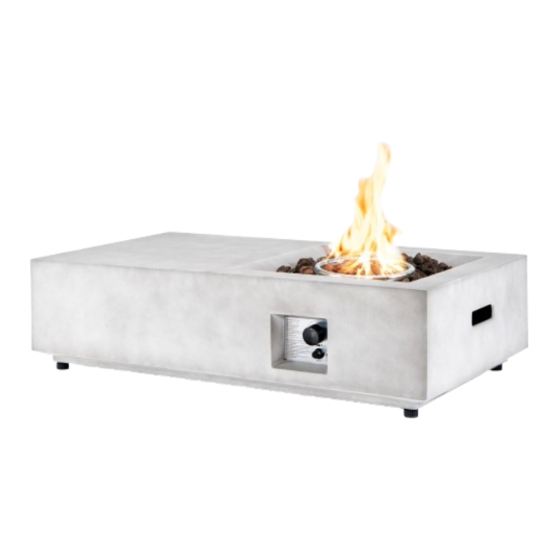

- Page 1 USER’S MANUAL Rectangular Propane Fire Pit NP10610GR THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
-
Page 2: Carbon Monoxide Hazard
FIRE PIT ITM./ART.#: NP10610GR MODEL#: F210041-A1 ANS Z21.97 CSA 2.41-2017 Outdoor Decorative Gas Appliances INSTALLER: Leave this manual with the appliance. CONSUMER: Retain this manual for future reference. DANGER FIRE OR EXPLOSION HAZARD If you smell gas: Shut off gas to the appliance. -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION 1. The installation must conform with local codes or, in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1 NFPA 54; National Fuel Gas Code; Natural Gas and Propane Installation Code, CSA B149.1; or Propane Storage and Handling Code, CSA B149.2, as applicable. - Page 4 13. This outdoor appliance is not for use on wood decks or other flammable surfaces. 14. Before each use of this gas appliance, open the door and/or the propane Tank Drawer and inspect the hose. If there is evidence of excessive abrasion or wear or if the hose is damaged, the hose assembly must be replaced prior to the appliance being put into operation.
-
Page 5: Specifications
3. The propane supply cylinder to be used must have a cylinder connection device compatible with the connection for the appliance. 4. A self-contained propane cylinder for use with this appliance must have a capacity of 20 Ibs cylinder (Height approximately 18 in., Tank Body approximately 12 in. -
Page 6: Package Contents
PACKAGE CONTENTS PART DESCRIPTION QUANTITY Fire table 1 pc Tank seat 1 pc Weather cover 1 pc Lava rock 1 box ASSEMBLY INSTRUCTIONS 1. Carefully unpack all parts from the box, compare parts with package content listed above, make sure all parts are present before beginning assembly of product. - Page 7 Figure 2 pilot box 3. Put the gas tank in the tank seat (B), connect the regulator, screw the black handle clockwise to tighten, turn the black handle counterclockwise to remove. The hose must point down. The knob on the control panel is turned all the way to the “OFF” position when the fireplace is NOT in use (see Figure 3).
- Page 8 5. Cover the fire pit with the outdoor Weather cover (C) when not in use to protect it from the elements or when the fire pit is cool COMPLETELY after using (See Figure 5). Figure 5 BATTERY Make sure the control knob is in the “OFF” position. Unscrew the push button cap on the ignitor module located on the control panel to access the battery compartment.
- Page 9 5. Do not use this appliance until any and all leaks are corrected. If you are unable to stop a leak, disconnect the propane supply. Call a gas appliance service shop or your local propane gas supplier. cylinder-regulator connection (Figure 7) gas valve-bellows connection (Figure 8) gas valve / regulator hose connection inlet tube / bellows connection...
-
Page 10: Lighting Instructions
LIGHTING INSTRUCTIONS 1. Push in gas control knob slightly and turn to “OFF”. 2. Turn gas control knob the “ON/MIN”. 3. Push in gas control knob all the way and hold. Continue to press the ignition button for 15 seconds. 4. -
Page 11: Care And Maintenance
Good Yellow Yellow Light Blue Light Blue Blue Blue Figure 12 CARE AND MAINTENANCE To enjoy the outstanding performance from your fire pit, make sure you perform the following activities on a regular basis: 1. Use warm soapy water for cleaning. Never use flammable or corrosive cleaning agents. - Page 12 With your inspiring rating, COSTWAY will be more consistent to offer you EASY SHOPPING EXPERIENCE, GOOD PRODUCTS and EFFICIENT SERVICE! Mit Ihrer inspirierenden Bewertung wird COSTWAY konsistenter sein, um Ihnen EIN SCHÖNES EINKAUFSERLEBNIS, GUTE PRODUKTE und EFFIZIENTEN SERVICE zu bieten! Avec votre évaluation inspirante, COSTWAY continuera à...
