Bathology Spectrum 441D Installation And Operation Manual

Sauna white light system
Hide thumbs Also See for Spectrum 441D:

Advertisement

Quick Links

Download this manual
S p e c t r u m 4 4 1 D
S a u n a W h i t e L i g h t S y s t e m
Installation and Operation Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Spectrum 441D and is the answer not in the manual?

Questions and answers

Related Manuals for Bathology Spectrum 441D

Summary of Contents for Bathology Spectrum 441D

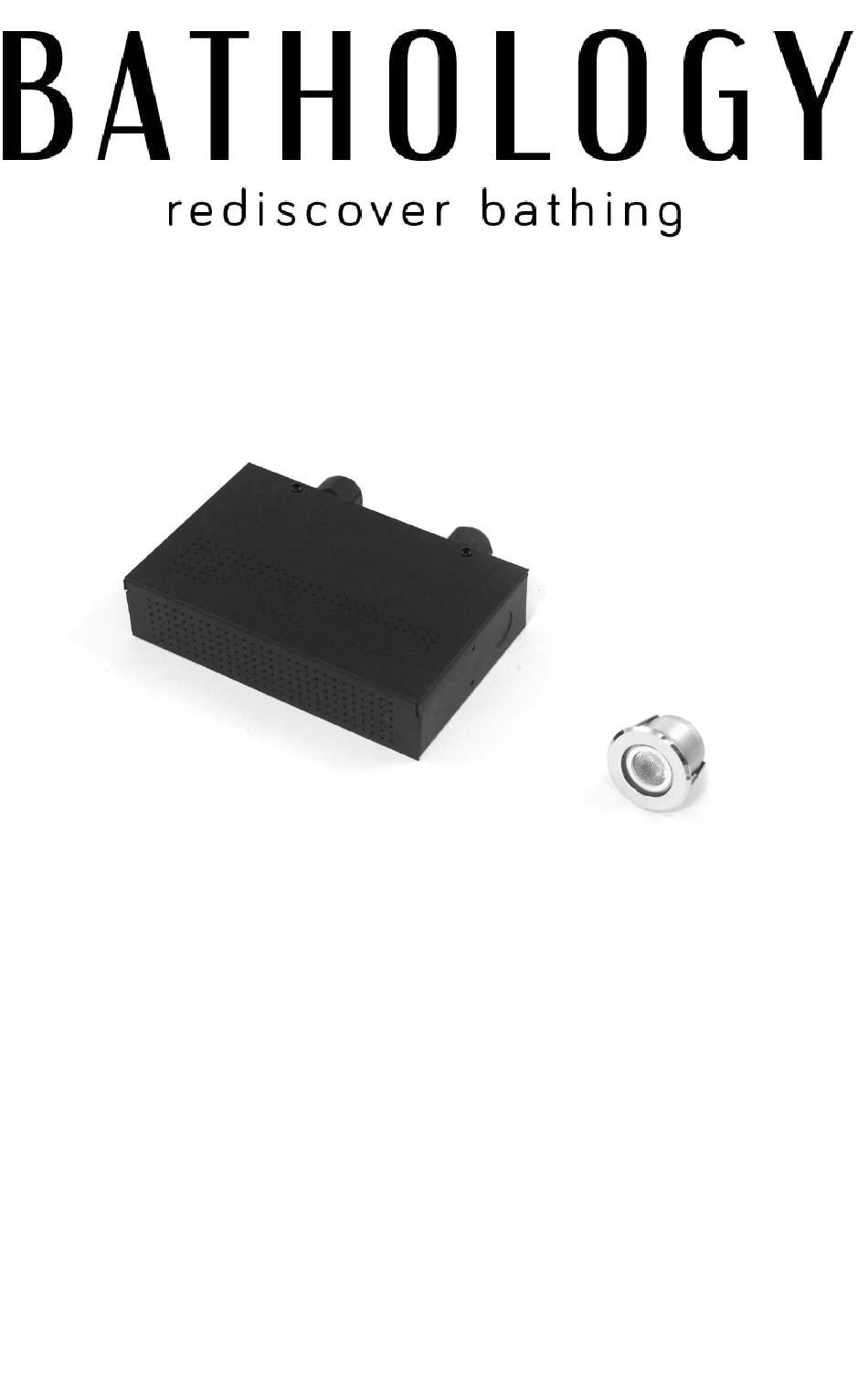

  • Page 1 S p e c t r u m 4 4 1 D S a u n a W h i t e L i g h t S y s t e m Installation and Operation Manual...

  • Page 2: Table Of Contents

    S p e c t r u m 4 4 1 D Contents Installation Considerations - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Installation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Electrical Diagram - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 11 11...

  • Page 3: Installation Considerations

    Do not hot swap any Code and local building code. electrical components. This will void the warranty, and likely cause the The Spectrum 441D White ! IMPORTANT product to fail. Fully disconnect the Light System should be installed by a system from its power source before licensed, qualified electrician.

  • Page 4: Installation

    S p e c t r u m 4 4 1 D Installation Installation Sauna Desired Switch L ocation (must be placed outside the sauna) Allow for 2” of clearance from insulation above and around fixture. Package Includes Item Quantity Description Item Quantity...
  • Page 5 Brilliance Light F ixture Cat6 Cable, 1’ Wire Fit Cap Cat6 Cable, 25’ Dimmer Output Box NO TE TE: : Quantity with an * increases by one per each additional light purchased. Quantities Spectrum 441D system. shown assume no additional lights purchased with...

  • Page 6: Electrical Diagram

    S p e c t r u m 4 4 1 D Electrical Diagram Light Cable Dimmer Electrical Outlet Gray Male NEMA Cable Purple White Enclosure Blue Driver Neutral Ground Field Supplied Factory Supplied Electrical Panel NOTE: Neutral from Electrical Panel not needed for Dimmer, but passes through to Electrical Outlet.
  • Page 7 Electrical Detail 1) Electricla Panel to Dimmer (L) a) The Dimmer (F) will make use of a 120VAC, 15 Amp branch circuit. The Dimmer (L) should be place where most convenient for operation. The Dimmer (L) must be installed outside the Sauna Room.
  • Page 8 S p e c t r u m 4 4 1 D Installation (Continued) IMPORTANT: DO NOT HOT SWAP ANY ELECTRICAL COMPONENTS . This will void the warranty, and likely cause the product to fail. Install a standard single gang Accessible, dry location electrical box in an accessible, dry location.
  • Page 9 Installation (Continued) 4. Determine number of lights per input. Limit 6 lights per input. 5. Determine desired brilliance light fixture (J) location. Note: Fixture OUTPUT should be placed to avoid direct DIP Switch Terminator Lights contact with the bather’s eyes. (A/B) position 1 2 3 4 5 6 7 8 9...
  • Page 10 S p e c t r u m 4 4 1 D Installation (Continued) Make a 1-5/8” hole in desired Bathing Space location. 1-5/8” Mount brilliance light fixture (J) to ceiling through 1-5/8” cut out. Allow for 2” clearance from insulation above and around the fixture.

  • Page 11: Product Care

    Product Care For routine cleaning, simply use a soft damp cloth and common household soap. Use a damp cloth to wipe clean, then dry. Clean product frequently to avoid calcium deposits on surfaces. Use only mild soap. Never use abrasive or cleaning containing alcohol, ammonia, hydrochloric phosphoric acids as they may...
  • Page 12 S p e c t r u m 4 4 1 D 3 Lights 2 Lights Terminator Terminator OUTPUT OUTPUT it ch it ch Lights Lights 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9 (A/B) 2,3,4 (A/B) 2,3,4 (A/B) 3,4...
  • Page 13 8 Lights 9 Lights OUTPUT OUTPUT Switch Terminator it ch Lights Lights (A/B) position 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9 (A/B) 2,3,4 (A/B) 2,3,4 (A/B) 3,4 (A/B) 3,4 ON: 1,2,3,4 ON: 1,2,3,4 1 2 3...

  • Page 14: Specifications

    S p e c t r u m 4 4 1 D Specifications Driver Enclosure Operating Voltage: 120 V AC Housing Composition: Steel, black powder coated finish Output Voltage: 700mA Dimensions: 7-3/4” W x 1-7/8” Power Consumption: 35W Nominal H x 4-7/8” D Amperage: 1.1 Amps Dimensions: Standards:...

  • Page 15: Notes

    Notes Notes Replacement P arts Replacement P arts Description Description Part Number Part Number Driver Spectrum114 Contact your Bathology representative for Spectrum Enclosure Spectrum079 441D Sauna White Light System Strain Relief Bushings Spectrum077 replacement parts. Male NEMA Cable Spectrum038 800-957-2862 Cat6 Cable, 1’...
  • Page 16 S p e c t r u m 4 4 1 D Notes Notes...
  • Page 17 Notes Notes...
  • Page 18 800-957-2862 A division of Bathing Brands,Inc. Rev-08 Spectrum441D 12/23 900-0143-1019...
