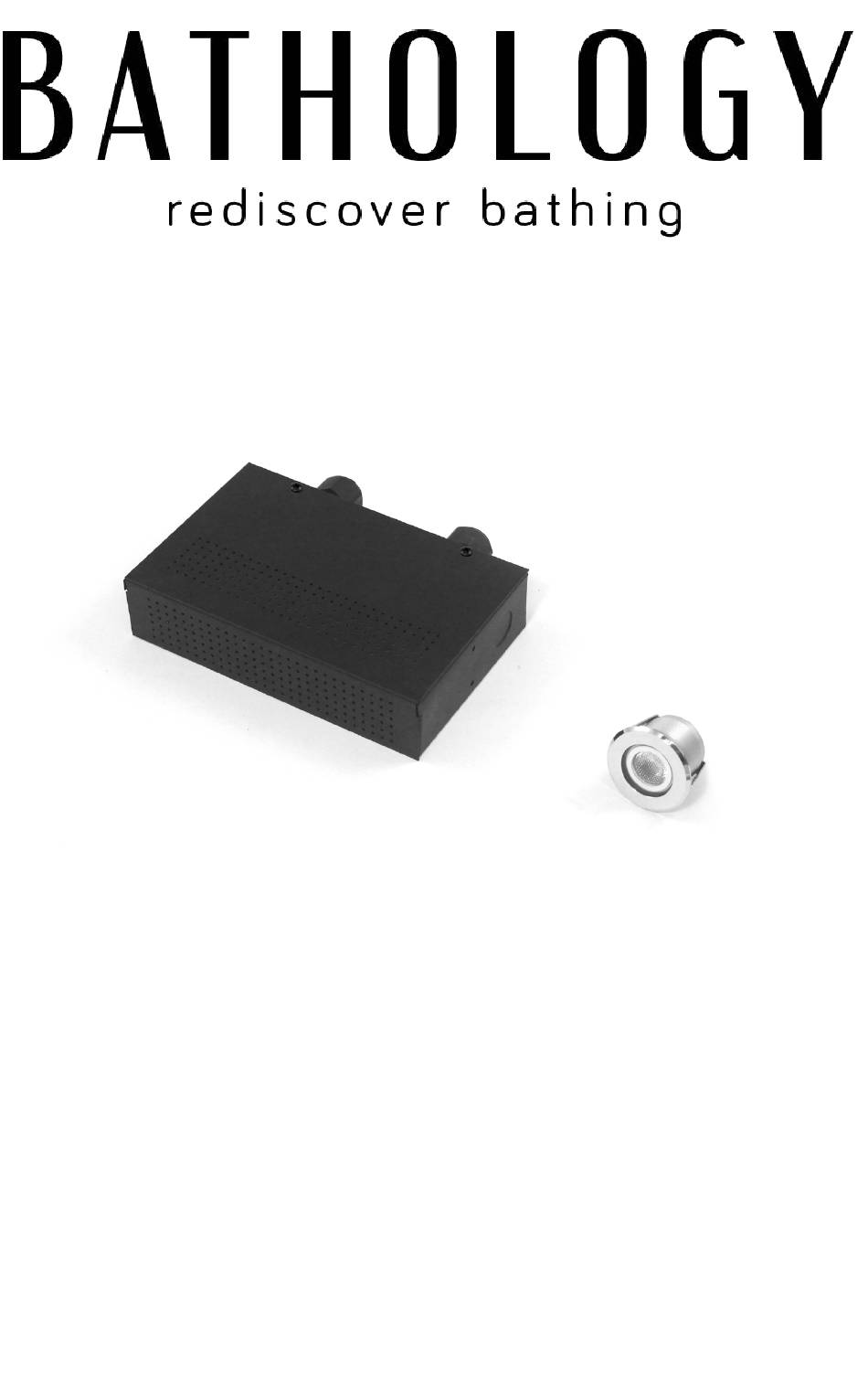

- Page 1 S p e c t r u m 4 4 1 S a u n a W h i t e L i g h t S y s t e m Installation and Operation Manual...
-
Page 2: Table Of Contents
S p e c t r u m 4 4 1 Contents Installation Considerations - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Installation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Product Care - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Specifications - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -... -
Page 3: Installation Considerations
IMPORTANT: DO NOT HOT SWAP ANY ELECTRICAL COMPONENTS. This will void the warranty, and likely cause the product to fail. Carefully review all The Spectrum 441 Sauna installation options and instructions White Light System can be controlled before proceeding. by the use of a light switch provided by others. -
Page 4: Installation
S p e c t r u m 4 4 1 Installation Accessible, dry location For 2-6 lights Output Box will be used. Plug 1' Cat6 cable into E and into A of Output Box. OUTPUT Switch Terminator Lights (A/B) position 1 2 3 4 5 6 7 (A/B) 2,3,4... - Page 5 Cat6 Cable, 1’ Brilliance Light Fixture Cat6 Cable, 25’ Wire Fit Cap Silicone Sealant, 1 ounce NOTE: Quantity with an * increases by one per each additional light purchased. Quantities shown assume no additional lights purchased with Spectrum 441 system.
- Page 6 S p e c t r u m 4 4 1 Installation (Continued) Install a standard single gang Accessible, dry location electrical box in an accessible, dry location. Run a grounded 120VAC 120V AC Grounded from the power supply to Power Source the accessible, dry location ’s electrical box.
- Page 7 Installation (Continued) 4. Determine number of lights per input. Limit 6 lights per input. 5. Determine desired brilliance light fixture (J) location. Note: Fixture OUTPUT should be placed to avoid direct DIP Switch Terminator Lights contact with the bather’s eyes. (A/B) position 1 2 3 4 5 6 7 8 9...
- Page 8 S p e c t r u m 4 4 1 Installation (Continued) Make a 1-5/8” hole in desired Bathing Space location. 1-5/8” Mount brilliance light fixture (J) to ceiling through 1-5/8” cut out. Allow for 2” clearance from insulation above and around the fixture.
-
Page 9: Product Care
Product Care For routine cleaning, simply use a soft damp cloth and common household soap. Use a damp cloth to wipe clean, then dry. Clean product frequently to avoid calcium deposits on surfaces. Use only mild soap. Never use abrasive or cleaning containing alcohol, ammonia, hydrochloric phosphoric acids as they may... - Page 10 S p e c t r u m 4 4 1 3 Lights 2 Lights Terminator Terminator OUTPUT OUTPUT it ch it ch Lights Lights 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9 (A/B) 2,3,4 (A/B) 2,3,4 (A/B) 3,4...
- Page 11 8 Lights 9 Lights OUTPUT OUTPUT Switch Terminator it ch Lights Lights (A/B) position 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9 (A/B) 2,3,4 (A/B) 2,3,4 (A/B) 3,4 (A/B) 3,4 ON: 1,2,3,4 ON: 1,2,3,4 1 2 3...
-
Page 12: Specifications
Dimensions: 15-1/8” L x 1/32” LED: 1 x 3 Watt H x 3” D Beam Angle: 35° Replacement Parts Trim Finish: Polished Stainless Steel Contact your Bathology Housing Composition: First Grade representative for Spectrum Aluminum 441 Sauna White Light Lens: Frosted, 1-7/32”... -
Page 13: Notes
Notes... - Page 14 800-957-2862 A division of Bathing Brands,Inc. Rev: 12/23 Spectrum441 900-0143-1019...
