Bathology Spectrum 441D Installation And Operation Manual

Sauna white light system
Hide thumbs Also See for Spectrum 441D:

Advertisement

Quick Links

Download this manual
B A T H O L O G Y
r e d i s c o v e r
b a t h i n g

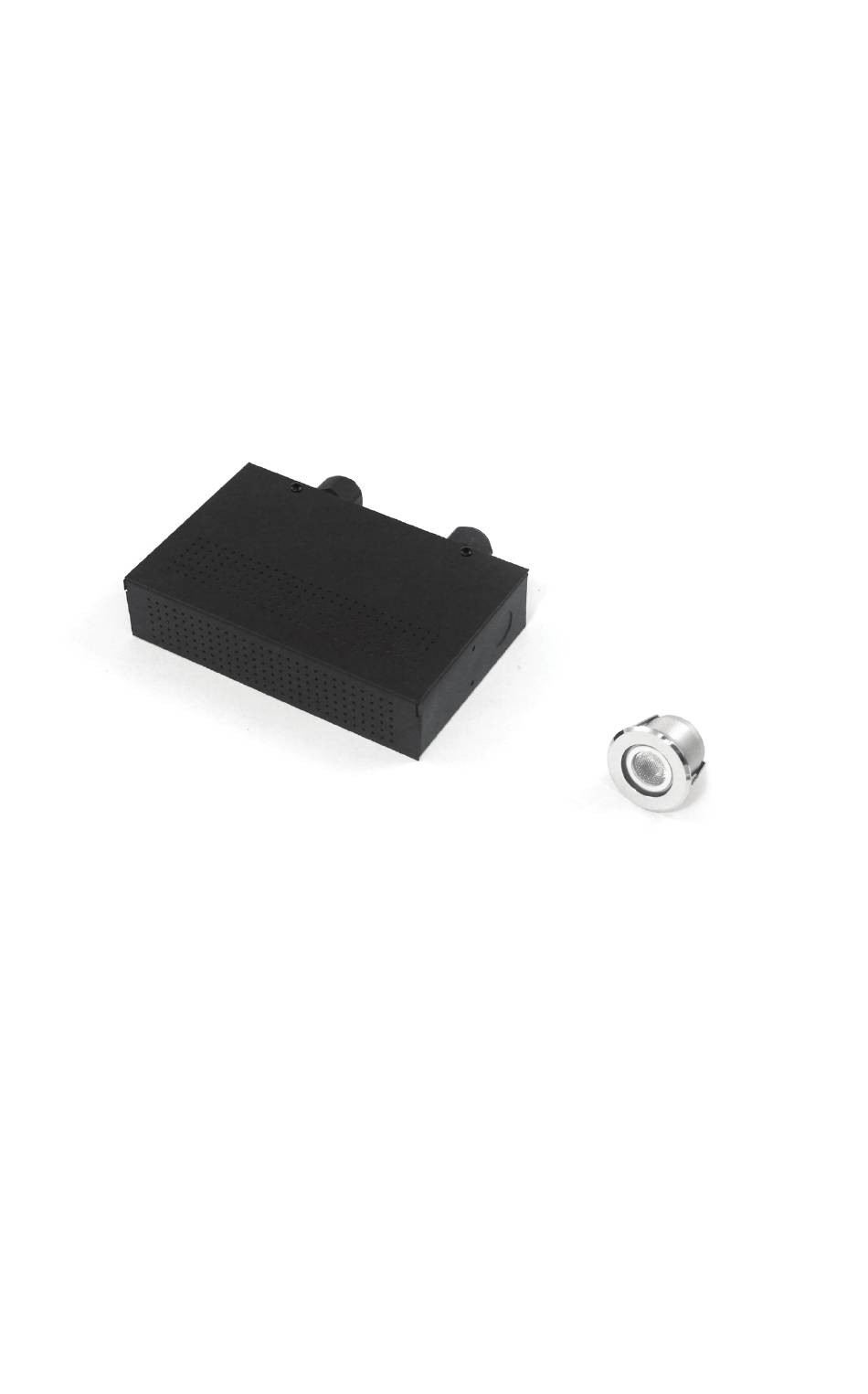

S p e c t r u m 4 4 1 D
S a u n a W h i t e L i g h t S y s t e m
Installation and Operation Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Spectrum 441D and is the answer not in the manual?

Questions and answers

Related Manuals for Bathology Spectrum 441D

Summary of Contents for Bathology Spectrum 441D

  • Page 1 B A T H O L O G Y r e d i s c o v e r b a t h i n g S p e c t r u m 4 4 1 D S a u n a W h i t e L i g h t S y s t e m Installation and Operation Manual...

  • Page 2: Table Of Contents

    S p e c t r u m 4 4 1 D Contents Contents Installation Considerations Installation Considerations --------------------------------------------- Installation Installation --------------------------------------------------------------- Electrical Diagram Electrical Diagram ------------------------------------------------------ Product Care Product Care ------------------------------------------------------------- Specifications Specifications ------------------------------------------------------------ Notes Notes --------------------------------------------------------------------- Replacement Parts Replacement Parts -------------------------------------------------------...

  • Page 3: Installation Considerations Installation Considerations

    Fully disconnect the Fully disconnect the system from its power source before system from its power source before ! IMPORTANT The Spectrum 441D White swapping any electrical components. swapping any electrical components. Light System should be installed by a licensed, qualified electrician.
  • Page 4 S p e c t r u m 4 4 1 D Installation Installation Sauna Desired Switch Location (must be placed outside the sauna) Allow for 2” of clearance from insulation above and around fixture. Package Includes Item Quantity Description Item Quantity Description...
  • Page 5 B A T H O L O G Y Accessible, dry location 120VAC Grounded Power Source (Controlled by switch by others. NEVER place a switch where it can be reached from a tub or shower) IMPORTANT: IMPORTANT: DO NOT HOT SWAP ANY ELECTRICAL COMPONENTS PHYSICALLY UNPLUG FROM...

  • Page 6: Electrical Diagram

    S p e c t r u m 4 4 1 D Electrical Diagram Electrical Diagram Light Cable Dimmer Electrical Outlet Gray Male NEMA Cable Purple White Enclosure Blue Driver Neutral Ground Field Supplied Factory Supplied Electrical Panel NOTE: Neutral from Electrical Panel not needed for Dimmer, but passes through to Electrical Outlet.
  • Page 7 B A T H O L O G Y Electrical Detail 1) Electricla Panel to Dimmer (L) a) The Dimmer (F) will make use of a 120VAC, 15 Amp branch circuit. The Dimmer (L) should be place where most convenient for operation.
  • Page 8 S p e c t r u m 4 4 1 D Installation (Continued) Installation (Continued) IMPORTANT: IMPORTANT: DO NOT HOT SWAP ANY ELECTRICAL DO NOT HOT SWAP ANY ELECTRICAL COMPONENTS. This will void the warranty, and likely cause the COMPONENTS.
  • Page 9 B A T H O L O G Y Installation (Continued) Installation (Continued) 4. Arrange lights per separate light sheet. Both “OUT” ports of a splitter (H) must be used if a splitter is used. 5. Determine desired brilliance light fixture (J) location. Note: Note: SEE SEPARATE LIGHT SHEET Fixture should be placed to avoid...
  • Page 10 S p e c t r u m 4 4 1 D Installation (Continued) Installation (Continued) 7. Make a 1-5/8” hole in desired Bathing Space location. 1-5/8” 8. Mount brilliance light fixture (J) to ceiling through 1-5/8” cut- out. Allow for 2” clearance from insulation above and around the fixture.

  • Page 11: Product Care

    B A T H O L O G Y Product Care Product Care For routine cleaning, simply use a soft damp cloth and common household soap. Use a damp cloth to wipe clean, then dry. Clean product frequently to avoid calcium deposits on surfaces.

  • Page 12: Specifications Specifications

    S p e c t r u m 4 4 1 D Specifications Specifications Driver Driver Enclosure Enclosure Operating Voltage: Operating Voltage: 90 - 305 VAC Housing Composition: Housing Composition: Steel, black powder coated finish Dimensions: Dimensions: 4-1/8” W x 2-1/2” H x 1-3/16”...

  • Page 13: Notes

    B A T H O L O G Y Notes Notes Replacement Parts Replacement Parts Description Description Part Number Part Number Driver Spectrum114 Contact your Bathology representative for Spectrum Enclosure Spectrum079 441D Sauna White Light System Strain Relief Bushings Spectrum077 replacement parts. Male NEMA Cable Spectrum038 800-957-2862 Cat6 Cable, 1’...
  • Page 14 S p e c t r u m 4 4 1 D Notes Notes...
  • Page 15 B A T H O L O G Y Notes Notes...
  • Page 16 B A T H O L O G Y rediscover bathing www.Bathology.com 800-957-2862 A division of Bathing Brands,Inc. Rev-07 Spectrum441D 07/27/21 900-0143-1019...
