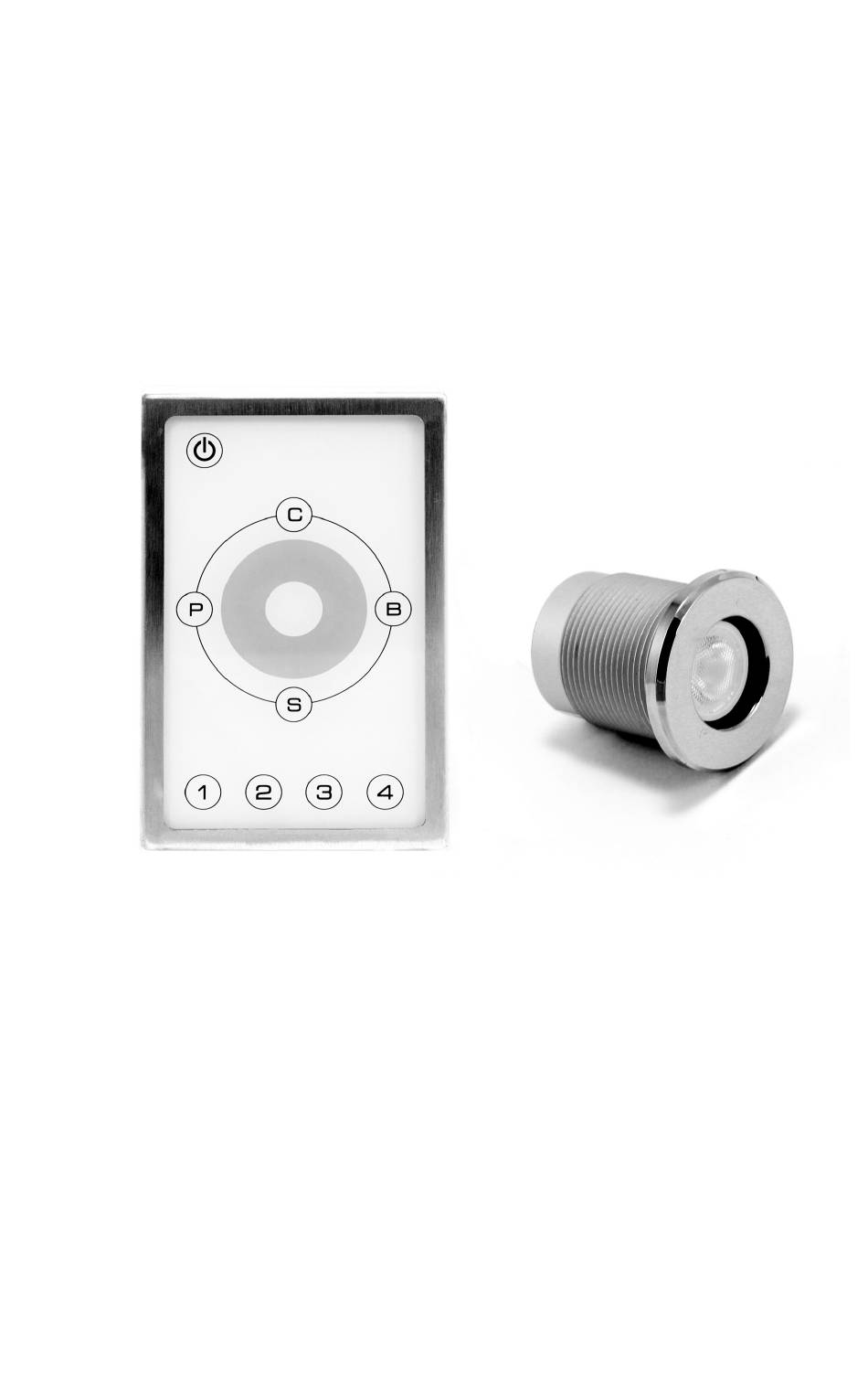

B A T H O L O G Y r e d i s c o v e r b a t h i n g S p e c t r u m 5 1 0 C o l o r B a t h i n g E x p e r i e n c e Installation and Operation Manual...
B A T H O L O G Y Installation Considerations Installation Considerations Please read this manual in its entirely prior to installation Please read this manual in its entirely prior to installation Carefully review all All wiring must be done in ! IMPORTANT installation options and instructions accordance with National Electric Code...
S p e c t r u m 5 1 0 Installation - Overview Installation - Overview Accessible, Dry Location Desired Interface Location Power Supply Connector, 50’ Touch Interface Ground 120VAC, 15 Power Supply, Amp Duplex Outlet 12VDC DMX IN DMX Driver Cable, 50’...
Page 5
B A T H O L O G Y Installation - DMX Driver / Power Supply Installation - DMX Driver / Power Supply Installation for 1-24 Lights Dip Switches 1. Determine best location for Brilliance lights run on 350mA. Ensure DMX Driver (A) and DMX Power that Dip switch 1 and 2 are both in the Supply (K), making note of cord...
Page 6
S p e c t r u m 5 1 0 Installation - DMX Driver / Power Supply (Continued) Installation - DMX Driver / Power Supply (Continued) Additional Power Supply for 25 - 48 Lights 1. Follow and complete installation for 1-24 lights.
B A T H O L O G Y Installation - Touch Interface Installation - Touch Interface 1. Determine the desierd location for the Touch Interface (B), making note of the cord lenghts. 2. Cut a 1-1/2”W x 2-13/32” H hole in desired location for the Touch Interface (B).
Page 8
S p e c t r u m 5 1 0 Installation - Touch Interface (Continued) Installation - Touch Interface (Continued) 11. Connect the Power Supply 21. Test light system prior to Connector (D) White - to the mounting Touch Interface (B) “GND”...
Page 9
B A T H O L O G Y Installation - Touch Interface (Continued) Installation - Touch Interface (Continued) DMX Out Power In Screw Terminal (Orange) Screw Terminal V in + Touch Interface Power Supply DMX IN Connector, 50’ Cable, 50’ Ground Red D- Black D+...
Page 10
S p e c t r u m 5 1 0 Installation - Brilliance Light Fixtures Installation - Brilliance Light Fixtures Warning: Warning: The Splitters (G) should be kept in an accessible location when IN Supports: installed. Only use the Splitters (G) - Cable, 1’...
Page 11
B A T H O L O G Y 1 Light Example 4 Light Example Accessible Accessible Location Location Desired Light Desired Light Location Location 2 Light Example 5 Light Example Accessible Accessible Location Location Desired Light Desired Light Location Location 3 Light Example 6 Light Example...
Page 12
S p e c t r u m 5 1 0 Installation - Brilliance Light Fixtures (Continued) Installation - Brilliance Light Fixtures (Continued) Desired Fixture Location Notch used to align fixture center to other 16” Location fixture centers Templates 5. FOR REMODELS: Skip to 6. 16”...
Page 13
B A T H O L O G Y Page left intentionally blank Page left intentionally blank...
Page 14
S p e c t r u m 5 1 0 Operation Operation On / Off On / Off Power Off - Press and hold for 2 seconds. Turns on Touch Interface. Restores most recent settings. Power On - Press and hold for 2 seconds. Turns off touch Interface. Color Color “C”...
B A T H O L O G Y Operation (Continued) Operation (Continued) Pre- Pre- Programmed Programmed Scene Scene “P” Button - Press and hold for 2 seconds. Enables Pre-Programmed Scene mode. “1” Button - Red - Magenta - White - Turquoise - Green - Yellow - White - Magenta - Blue - Turquoise - White - Yellow.
Trim: Steel, Polished Chrome Finish Housing: Housing: Aluminum Housing, Glass Panel Dimensions: Dimensions: 3-3/16”W x 4-15/16”H x 11/16”D Replacement Parts Replacement Parts Loading: Loading: 2A per Channel, 6A in Total Contact your Bathology representative for Spectrum 510 Color Bathing Experience replacement parts. 800-957-2862 www.Bathology.com...
Page 17
B A T H O L O G Y Specifications (Continued) Specifications (Continued) Power Supply Touch Pad Power Supply Touch Pad Construction Template Construction Template Operating Voltage: Operating Voltage: 120VAC Composition: Composition: Steel, Galvanized, Gauge 22 Output voltage: Output voltage: 12VDC Dimensions: Dimensions: 15-1/8”...
S p e c t r u m 5 1 0 Troubleshooting Troubleshooting The DMX driver will turn on Enter Testing Mode Enter Testing Mode automatically when supplied with 1. Press Down on the DMX driver power. The screen is always on. The until RUN1 displays then press screen will default back to A.001 after Enter...
Page 19
B A T H O L O G Y Zone 1 Zone 1 Zone 2 Zone 2 Red Zone 1 Channel 1 Red Zone 1 Channel 1 Red Zone 2 Channel 4 Red Zone 2 Channel 4 1. Press UP button until 01.00 1.
Page 20
S p e c t r u m 5 1 0 Troubleshooting (Continued) Troubleshooting (Continued) Zone 3 Zone 3 Zone 4 Zone 4 Red Zone 3 Channel 7 Red Zone 3 Channel 7 Red Zone 4 Channel 10 Red Zone 4 Channel 10 1.
Page 21
B A T H O L O G Y Returning to Run 1 Returning to Run 1 1. Press Enter then press up until Run 1 displays. 2. Press Back 3. Power Cycle DMX driver for at least 10 seconds. If you have 2 power supplies both will have to be unplugged at the same time.
Page 24
B A T H O L O G Y rediscover bathing www.Bathology.com 800-957-2862 A division of Bathing Brands,Inc. Rev-05 Spectrum 510 02/04/21 900-0115-0415...
