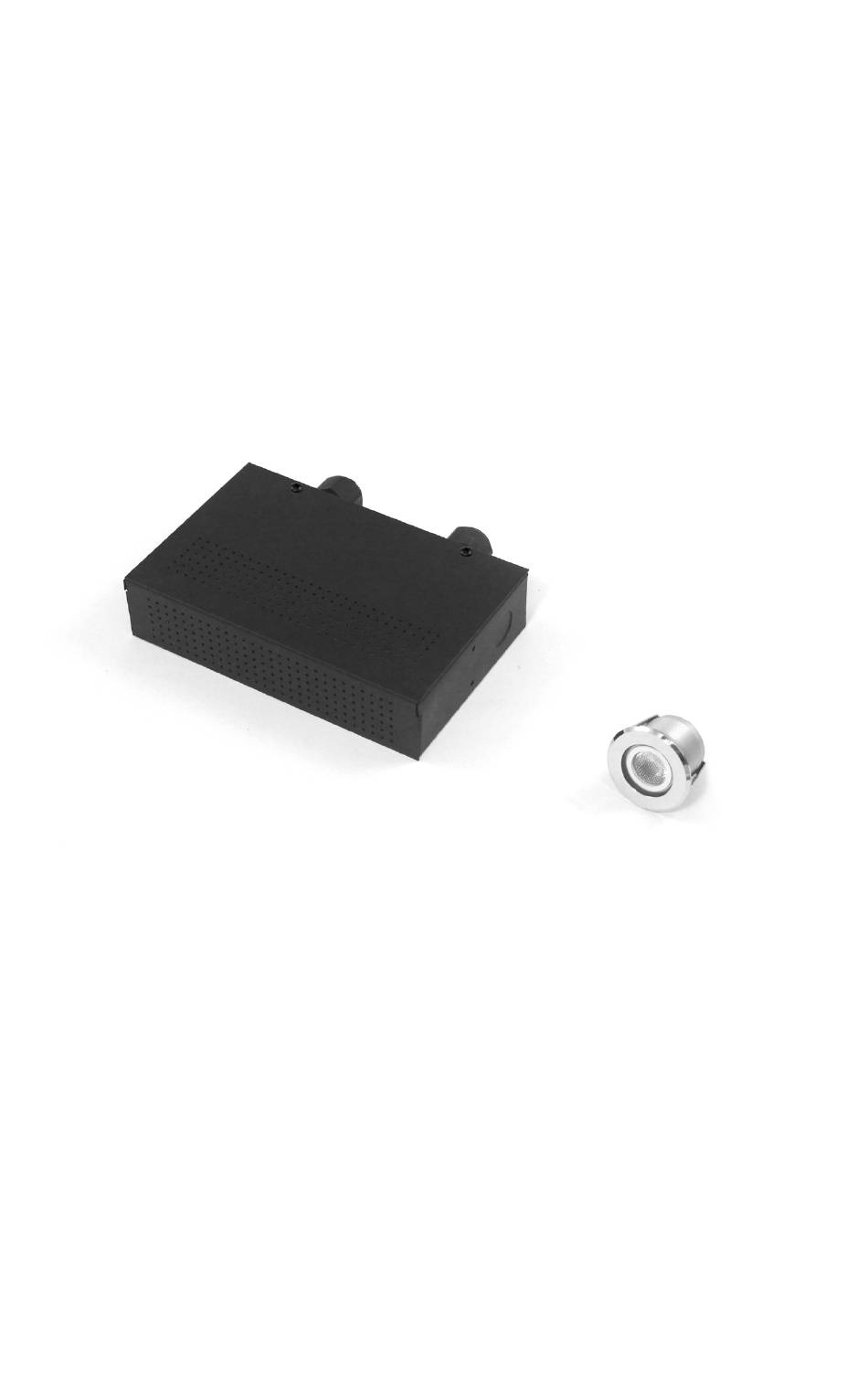

- Page 1 B A T H O L O G Y r e d i s c o v e r b a t h i n g S p e c t r u m 4 4 0 S t e a m W h i t e L i g h t S y s t e m Installation and Operation Manual...
-
Page 2: Table Of Contents
S p e c t r u m 4 4 0 Contents Installation Considerations --------------------------------------------- Installation --------------------------------------------------------------- Product Care ------------------------------------------------------------- Specifications ------------------------------------------------------------ Replacement Parts ------------------------------------------------------- Notes ---------------------------------------------------------------------... -
Page 3: Installation Considerations
IMPORTANT: DO NOT HOT SWAP ANY ELECTRICAL COMPONENTS. This will void the warranty, and likely cause the product to fail. Carefully review all The Spectrum 440 Steam installation options and instructions White Light System can be controlled before proceeding. by the use of a light switch provided by others. -
Page 4: Installation
S p e c t r u m 4 4 0 Installation Accessible, dry location 120VAC Grounded Power Source (Controlled by switch by others. NEVER place a switch where it can be reached from a tub or shower) IMPORTANT: DO NOT HOT SWAP ANY ELECTRICAL COMPONENTS PHYSICALLY UNPLUG FROM... - Page 5 Cat6 Cable, 1’ Brilliance Light Fixture Cat6 Cable, 25’ Wire Fit Cap Silicone Sealant, 1 ounce NOTE: Quantity with an * increases by one per each additional light purchased. Quantities shown assume no additional lights purchased with Spectrum 440 system.
- Page 6 S p e c t r u m 4 4 0 Installation (Continued) IMPORTANT: DO NOT HOT SWAP ANY ELECTRICAL COMPONENTS. This will void the warranty, and likely cause the product to fail. 1. Install a standard single gang Accessible, dry location electrical box in an accessible, dry location.
- Page 7 B A T H O L O G Y Installation (Continued) 4. Arrange lights per separate light sheet. Both “OUT” ports of a splitter (H) must be used if a splitter is used. 5. Determine desired brilliance light fixture (J) location. Note: SEE SEPARATE LIGHT SHEET Fixture should be placed to avoid direct contact with the bather’s...
- Page 8 S p e c t r u m 4 4 0 Installation (Continued) 7. Make a 1-5/8” hole in desired Bathing Space location. 1-5/8” 8. For Wet environments, apply a 1/8” bead of silicone around the edge of the light as required to form a water tight seal.
-
Page 9: Product Care
B A T H O L O G Y Product Care For routine cleaning, simply use a soft damp cloth and common household soap. Use a damp cloth to wipe clean, then dry. Clean product frequently to avoid calcium deposits on surfaces. Use only mild soap. -
Page 10: Specifications
Dimensions: 15-1/8” L x 1/32” H x Maximum Input Current: 700mA 3” D LED: 1 x 3 Watt Replacement Parts Beam Angle: 35° Contact your Bathology Trim Finish: Polished Stainless Steel representative for Spectrum Housing Composition: Stainless 440 Steam White Light System Steel replacement parts. -
Page 11: Notes
B A T H O L O G Y Notes... - Page 12 B A T H O L O G Y rediscover bathing www.Bathology.com 800-957-2862 A division of Bathing Brands,Inc. Spectrum440-5 900-0142-1019...
