Product Codes
09603 White, 09602 Black
Install Dispenser Bracket
Installation
Enclosed
(x4)
For available spare parts contact your sales representative.
IMPORTANT! For secure mounting, follow
instructions thoroughly. Ensure that proper
mounting hardware is used for appropriate wall
composition, as enclosed hardware may not be
compatible with your wall surface.

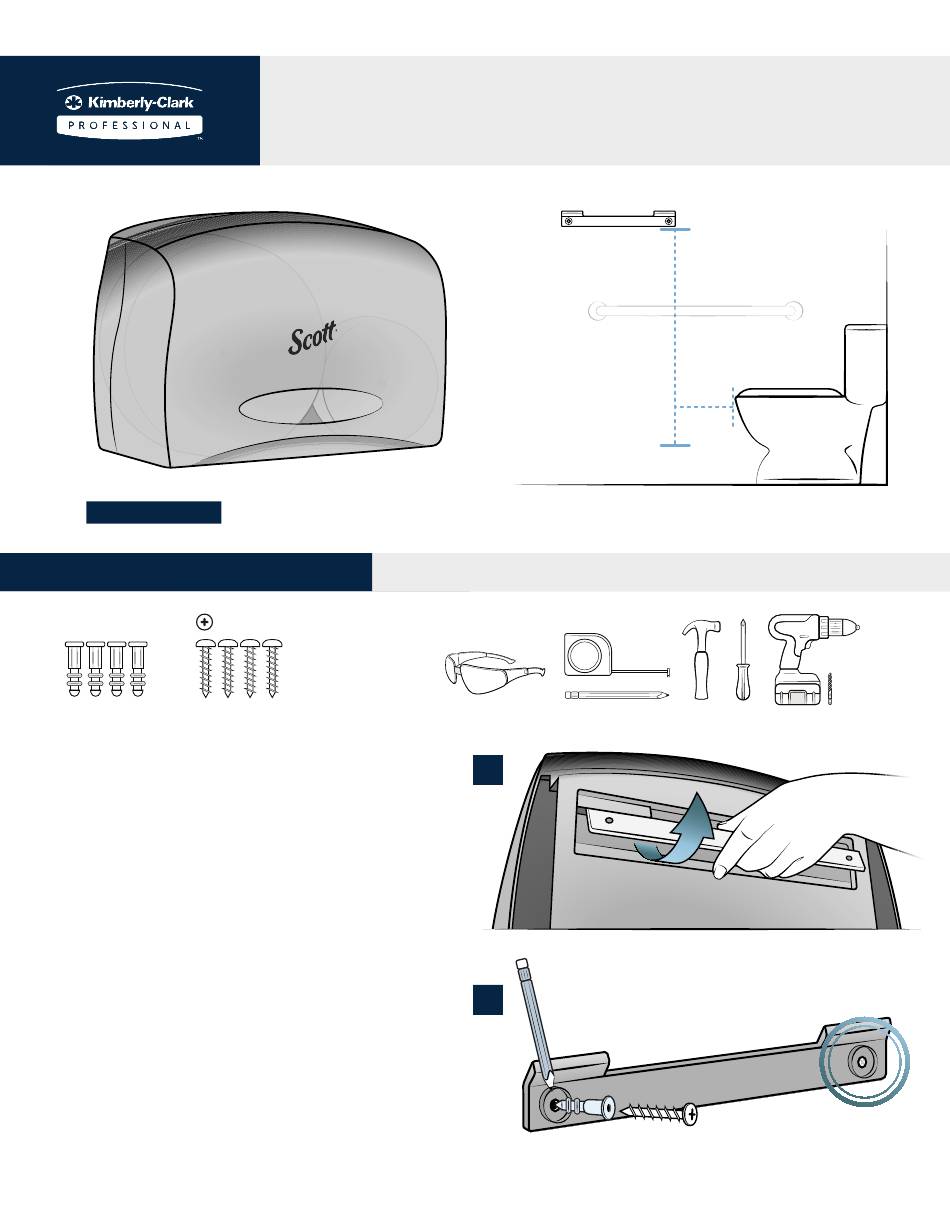

1. Locate the mounting bracket and screws
in the hardware packet provided (Figure
1a). Using a level, position the bracket
approximately 36" from floor and 7-9" from
front edge of toilet to center of bracket and
use as a template to mark holes for screws.
Screw mounting bracket into the wall,
using marked holes as a guide (Figure 1b).
SCOTT® ESSENTIAL CORELESS JUMBO ROLL
TOILET PAPER DISPENSER
DISTRIBUTRICE DE PAPIER HYGIÉNIQUE EN ROULEAU GÉANT SANS MANDRIN
SCOTT® ESSENTIAL
Tools Required:
(x4)
1a.
1b.
*Check for ADA regional
& local installing/
mounting requirements.
7 - 9"
Use correct
drill bit for
anchor size
Form 034163
Advertisement
Related Manuals for Kimberly-Clark PROFESSIONAL SCOTT 09603
Summary of Contents for Kimberly-Clark PROFESSIONAL SCOTT 09603
- Page 1 SCOTT® ESSENTIAL CORELESS JUMBO ROLL TOILET PAPER DISPENSER DISTRIBUTRICE DE PAPIER HYGIÉNIQUE EN ROULEAU GÉANT SANS MANDRIN SCOTT® ESSENTIAL *Check for ADA regional & local installing/ mounting requirements. 7 - 9” Product Codes 09603 White, 09602 Black Install Dispenser Bracket Installation Enclosed Tools Required:...
- Page 2 2. Position dispenser over bracket, aligning recesses on back of dispenser over the 2 tabs protruding at top of bracket. Push down firmly to make sure the dispenser is fully seated on the bracket (Figure 2). 3. Using the bottom holes as a guide, mark the location of the bottom mount ing holes.
- Page 3 Loading Instructions EMPTY DISPENSER (Both sides empty): 1. Insert new roll in left position so that paper unrolls in clockwise direction (Figure 1). Push up firmly until it locks into position securely. 2. Allow approximately 3 inches of leading edge of paper to extend below the bottom of the dispenser.
- Page 4 *AMERICANS WITH DISABILITIES ACT (For use In U.S. only): Title 111 of *AMERICANS WITH DISABILITIES ACT (Loi relative aux Américains handicapés) (pour une utilisation aux États-Unis seulement): Le titre III de l’Americans with the Americans with Disabilities Act (“ADA”) governs, in detail, the placement and operation of dispensers.
