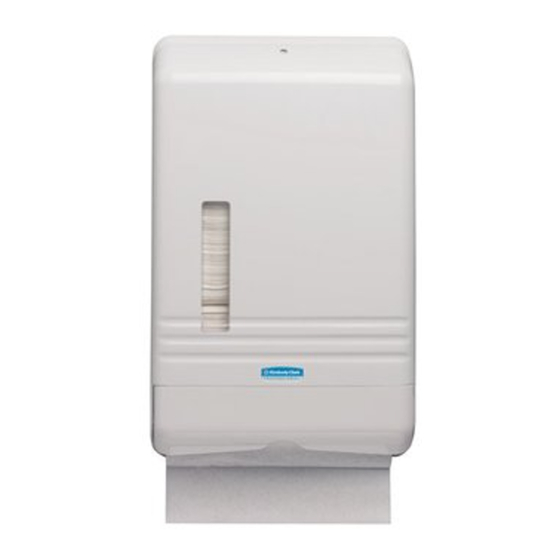

Code 4980 Compact Towel Dispenser
diagram
125cm
1. 4 screws and 4 plugs are enclosed.
2. Use an appropriate 6mm drill bit in conjunction with the enclosed
wall plugs for masonry walls.
3. If plugs are not to be used then choose an appropriate size drill bit.
4. Using mounting template on box, mount the dispenser with bottom
edge approximately 125cm from the floor or 50cm above a bench
(see diagram).
5. Use all mounting screws provided with dispenser as a
minimum to attach dispenser to wall.
6. If no mounting template available open dispenser with key and hold
squarely against wall while you mark drilling holes (or see diagram
2 for measurements).
Code: 4980 Compact Towel Dispenser
225mm
diagram
140mm
145mm
140mm
Installation Guide -
50cm
225mm
70mm
Suits KLEENEX
code 4440
¨
SCOTT* codes 5855, 4444.
