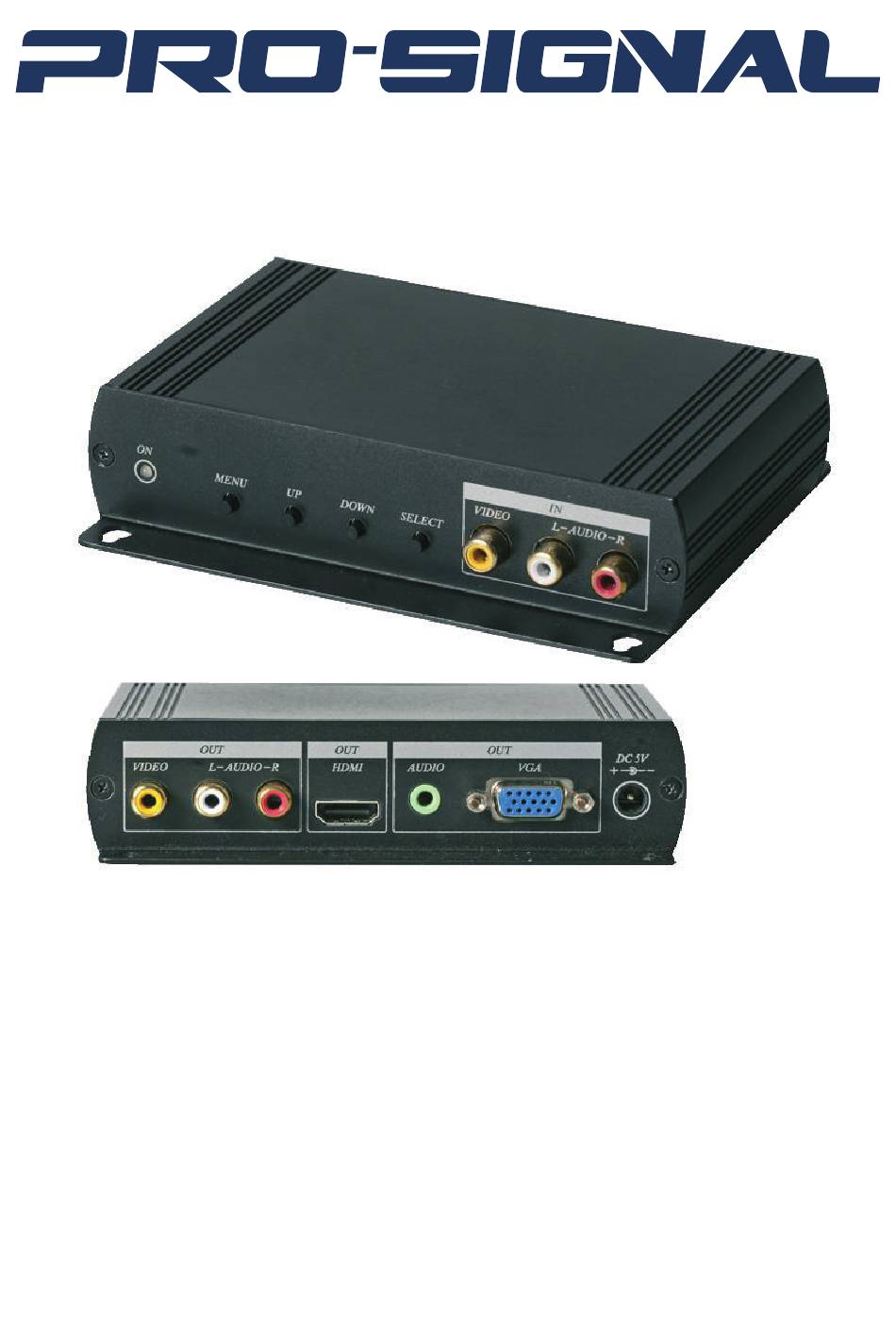

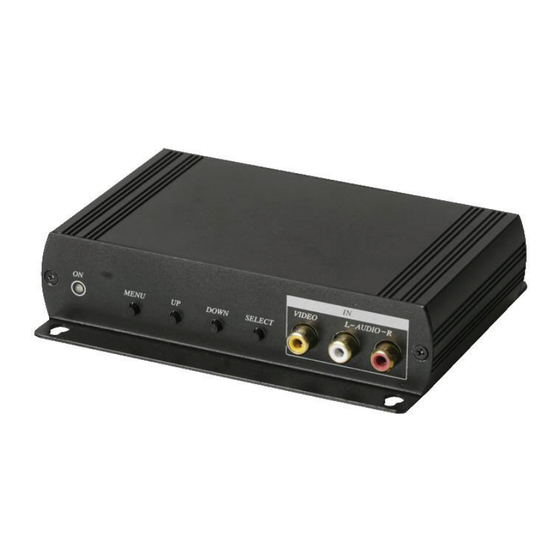

- Page 1 PSG03681 HIGH RESOLUTION VIDEO TO VGA CONVERTER WITH HDMI OUTPUT The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
- Page 2 IMPORTANT SAFETY INFORMATION Please read these instructions carefully before use and retain for future reference. • Check that the voltage indicated on the PSU rating plate corresponds with that of the local network before connecting to the mains power supply. OVERVIEW •...
- Page 3 OPERATION Button Function: • MENU: Turns OSD on/off. • UP: Increase setting value. • DOWN: Decrease setting value. • SELECT : Switches through the various setting options below. OSD Menu (only displays on HDMI and VGA outputs) Resolution • Press SELECT button to setup output resolution: 800x600, 1024x768, 1280x720 or 1920x1080.
- Page 4 SPECIFICATIONS ITEM PSG03681 Resolution Up to 1920 x 1080 non-interlaced to 60Hz Composite Video RCA Input/Output Stereo Audio RCA Input/Output L/R, Stereo audio jack 3.5mm x 1 output VGA Connector 15-pin Mini D-sub output (High Density) x 1 HDMI Connector...
