- Page 1 AV to HDMI+Stereo Converter HD VIDEO CONVERTER User Manual A/V to HDMI+Stereo Converter (Up Scaler 720P/1080P) Bring High-Definition to your life!
- Page 2 AV to HDMI+Stereo Converter Thank you for purchasing our product. To ensure safety and many years' trouble-free operation of the product, please read the manual carefully before using this product. 1.0 INTRODUCTION The AV TO HDMI converter is a universal converter for analog composite input to HDMI 1080p (60HZ) output.

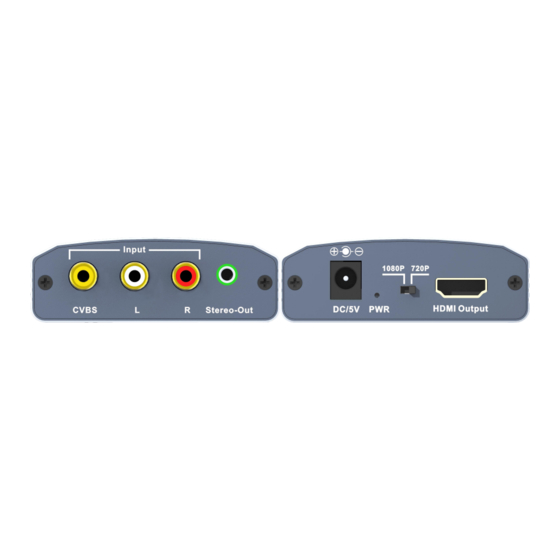

- Page 3 AV to HDMI+Stereo Converter CVBS ------------------------------CVBS input L/R -----------------------------------Audio input DC 5V---------------------------5V power input PWR ----------------------------Power indicator 720P/1080P--------------720P/1080P switch HDMI -------------------------------HDMI output Stereo Out ------------------------Audio output 6.0 CONNECTION DIAGRAM Before installation, please make sure all devices you wish to connect have been turned off.
- Page 4 AV to HDMI+Stereo Converter 3. Liquid items should not be placed on the equipment. 4. Do not install the equipment near heat sources such as fire , power , or other amplifiers that produce heat. 5. Do not insert the metal or other objects to the equipment in addition to connecting cables to ports.
