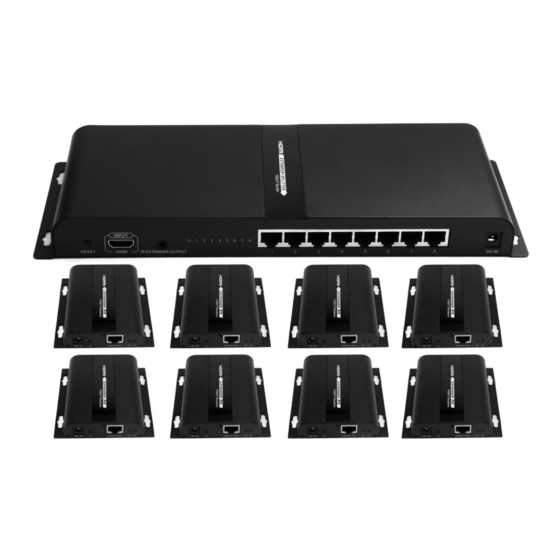

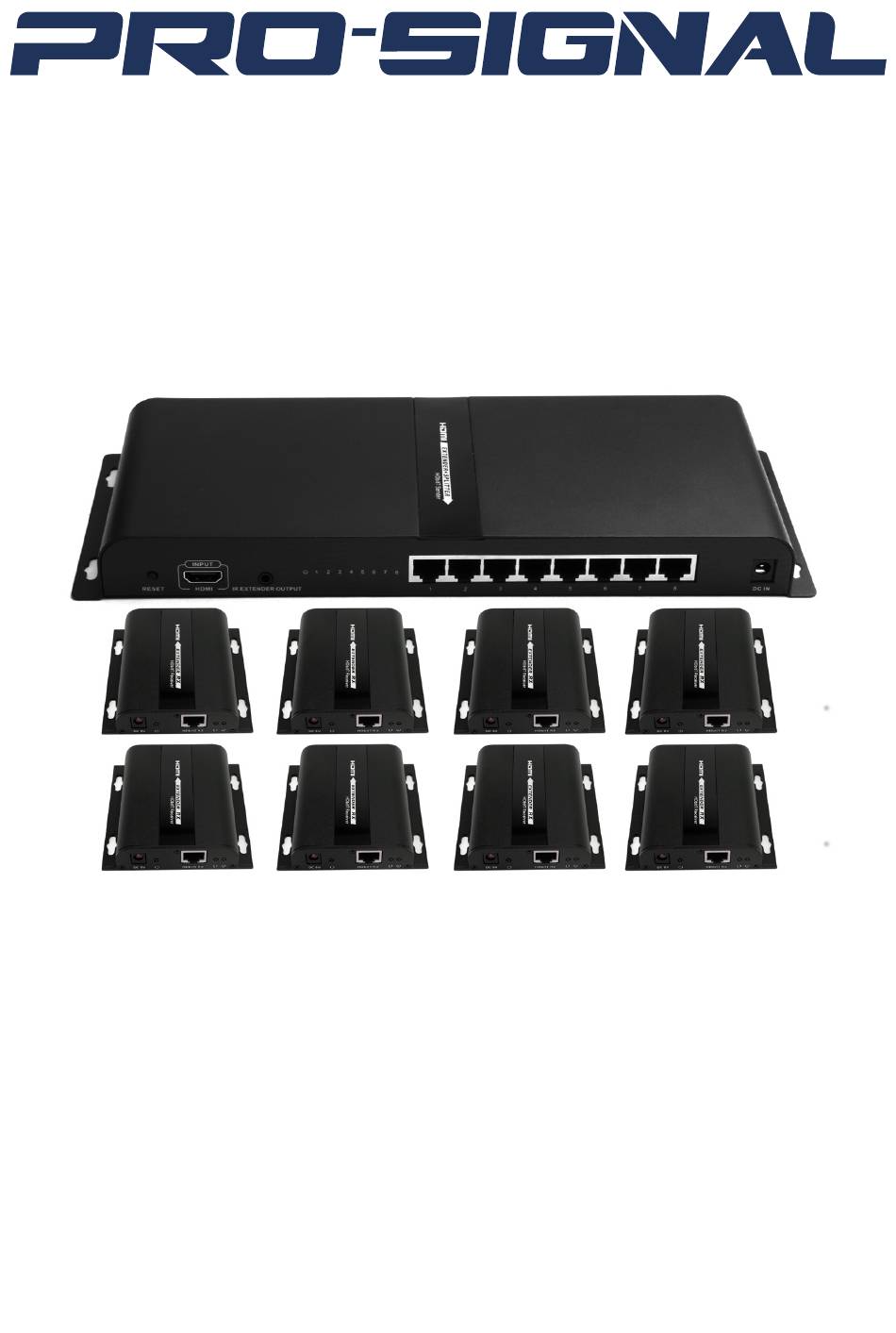

- Page 1 1080P HDMI EXTENDER SPLITTER 120M PSG3428...
- Page 2 Please read these instructions carefully before use and retain for future reference. IMPORTANT SAFETY INFORMATION When using electrical appliances basic safety precautions should always be followed. • To prevent fire or shock hazard, do not expose this product to rain or moisture. •...
- Page 3 1. Reset button Press to restart the device 2. HDMI input Connect with the source device 3. IR out Connect with IR extension cable 4. Transmission LED Illuminates during data transmission 5. Connection LED Illuminates when a good network connection is attained 6.
- Page 4 IR User Guide: • IR receiver extension cable should be connected to the IR IN port of the receiver. • The IR emitter extension cable should be connected to the IR OUT port of the transmitter. • The emitter of the IR extension cable should face as close as possible to the IR receiving window of the source device.
- Page 5 SPECIFICATIONS Voltage/Current DC 12V3A Power consumption <10W HDMI compliance HDMI 1.3 HDCP compliance HDCP 1.2 HDMI resolution 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz Transport protocol HDbitT Input and output signal 0.7~1.2Vp-p (TMDS) Input and output DDC 5Vp-p (TTL) signal IR signal Support 20~60kHz IR device Input cable length...
