Summary of Contents for PRO SIGNAL PSG08200

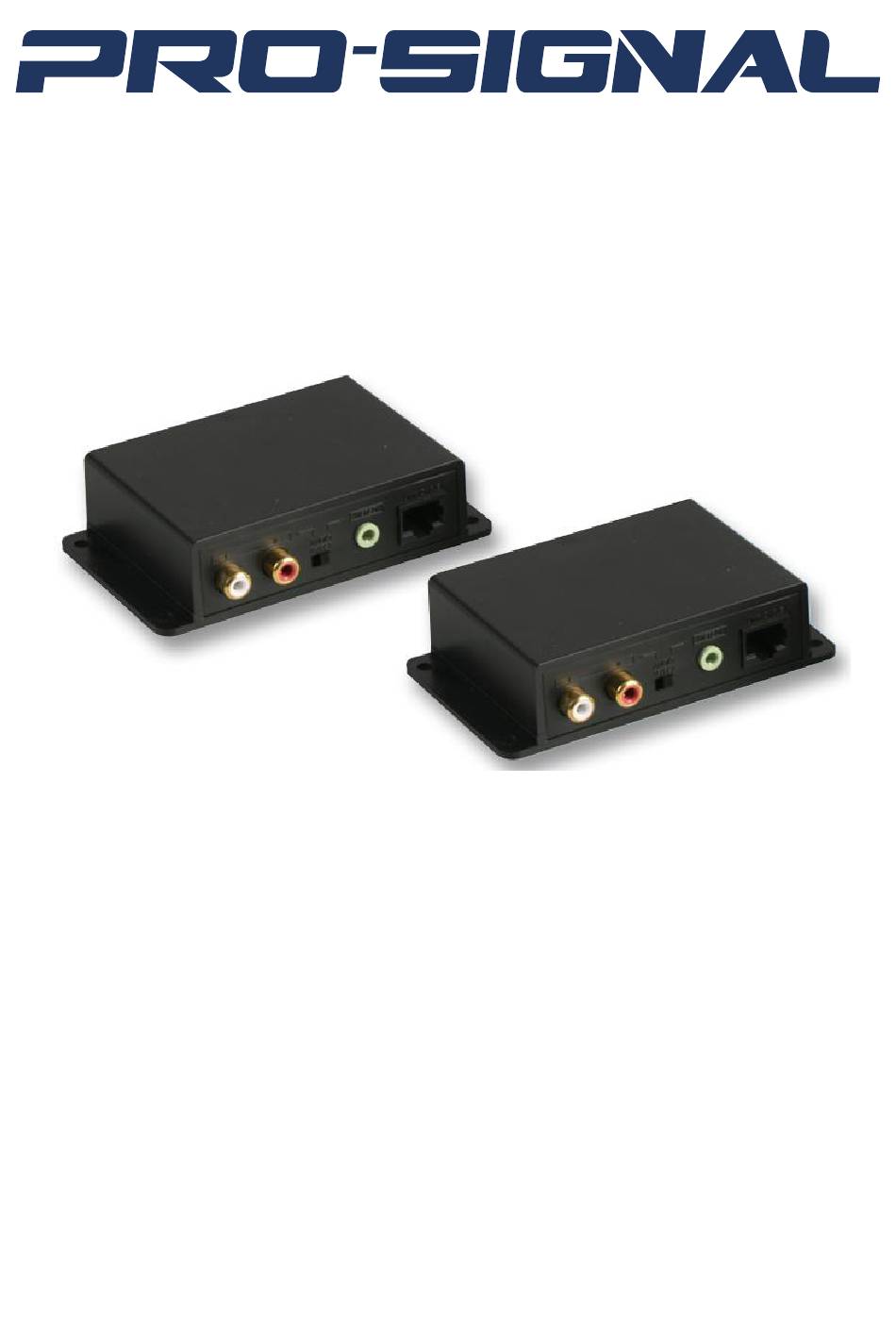

- Page 1 PSG08200 STEREO AUDIO OVER CAT5...

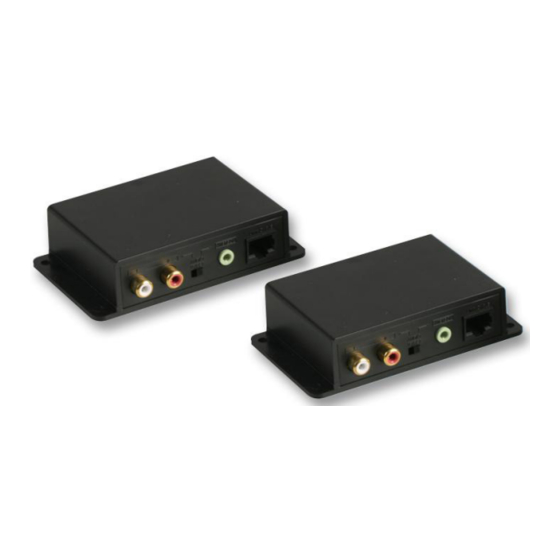

- Page 2 IMPORTANT SAFETY INFORMATION Please read these instructions carefully before use and retain for future reference. OVERVIEW • Dual gold-plated RCA female + 3.5mm mini jack to RJ45. • Choice of stereo audio or mini stereo audio by dip switch. • Passive operation, no power need.
- Page 3 • Before installation, please make sure all devices you wish to connect have been powered off. • Connect the R+L audio from computer or other source equipment to the transmitter using suitable RCA or 3.5mm jack cables. • Select the input type being used using the dip switch. •...
- Page 4 SPECIFICATIONS AUDIO INPUT/OUTPUT RCA x 2, 3.5mm phone jack x 1 (10KΩ) LINK CONNECTOR RJ45 x 1 LINK CABLE Twisted Pair CAT5/5e/6 UTP DIMENSIONS 108 x 70 x 27mm Weight INFORMATION ON WASTE DISPOSAL FOR CONSUMERS OF ELECTRICAL & ELECTRONIC EQUIPMENT. When this product has reached the end of its life it must be treated as Waste Electrical &...
