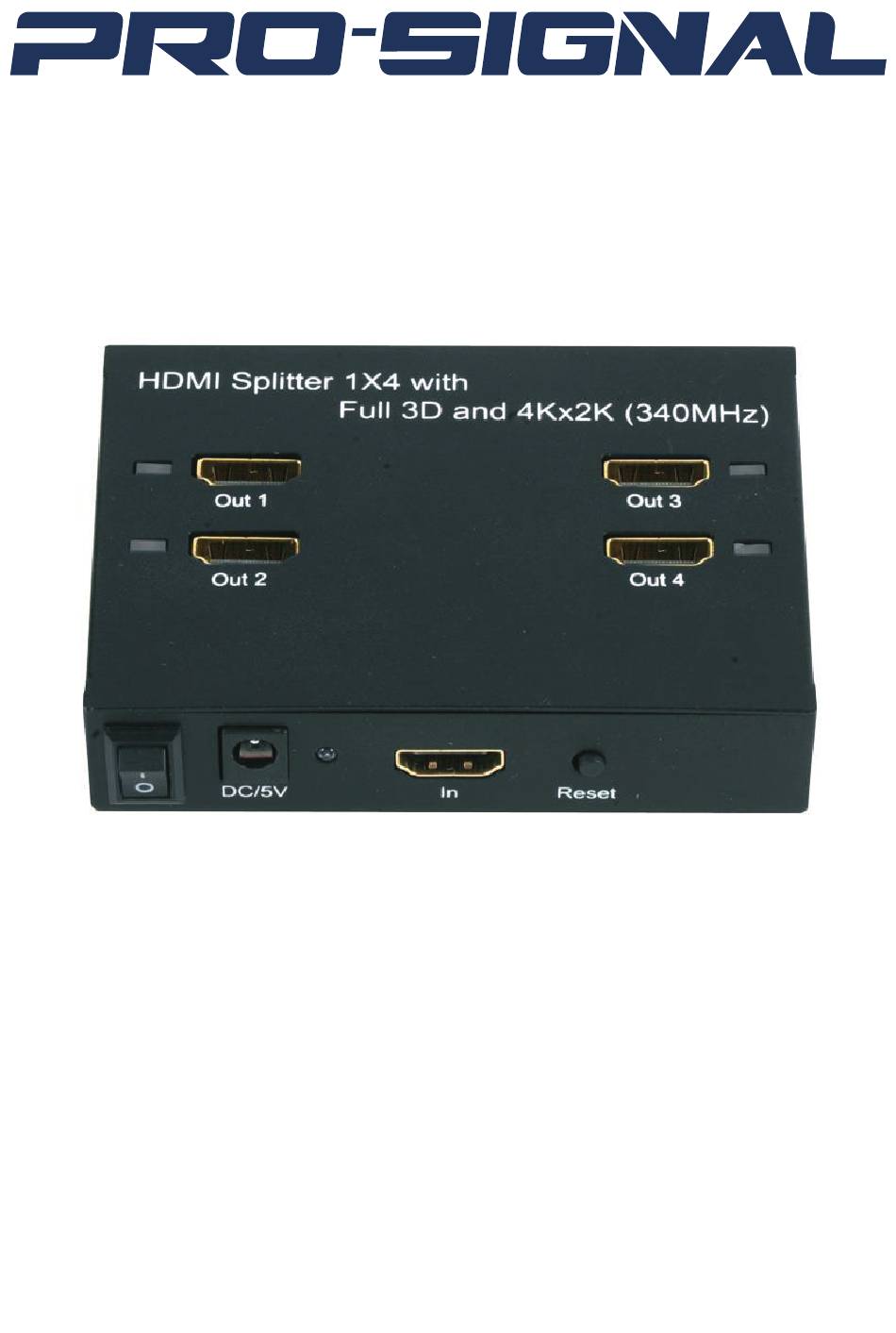

- Page 1 Mini HDMI 1X4 Splitter with Full 3D and 4Kx2K PSG03772 The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
- Page 2 Please read these instructions carefully before use and retain for future reference. IMPORTANT SAFETY INFORMATION When using electrical appliances basic safety precautions should always be followed. • To prevent fire or shock hazard, do not expose this product to rain or moisture. •...
- Page 3 CONNECTION DIAGRAM PSG3429...
- Page 4 SPECIFICATIONS Signal Input/Output Input DDC Signal 5 Volts p-p (TTL) Max single link range 4Kx2K Output Video HDMI (with full 3D and 4Kx2K) Operating Frequency Vertical Frequency Range 50/60Hz Video Amplifier Bandwidth 3.4Gbps/340MHz Resolutions(HDTV) Interlaced(50&60Hz) 480i,576i,1080i Progressive(50&60Hz) 480p,576p,720p,1080p,4Kx2K Mechanical Size(L-W-H) 100×70×23mm Weight(Net) 180g...
