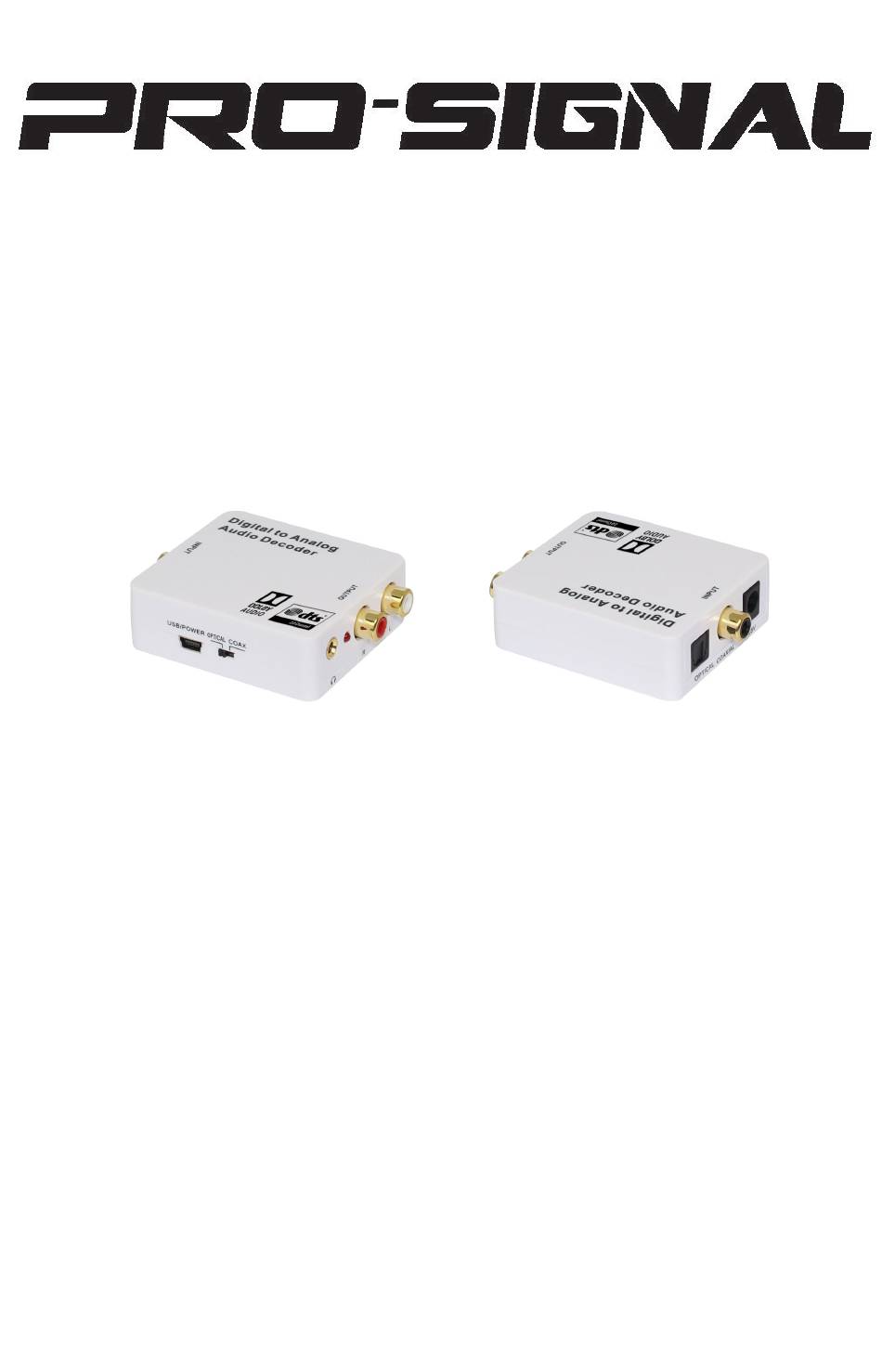

- Page 1 Digital to Analogue Audio Decoder PSG4360...
- Page 2 Introduction The Digital to Analog Audio Decoder features an integrated 24 bit audio DSP. This unit can decode a variety of digital audio formats, including Dolby Digital (AC3), DTS and PCM. It can simply connect an Optical (Toslink) or Digital Coaxial Cable to the input, then the decoded audio can be transmitted as 2 channel analog audio via the Stereo RCA output or the 3.5mm output (suitable for...
-
Page 3: Package Contents
Features • Decode Dolby Digital (AC3), DTS or PCM digital audio to stereo audio output. • Supports PCM 32KHz.44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz, 192KHz sample frequency audio decoding. • Support Dolby Digital 5.1 channels, DTS-ES6.1 channels audio decoding. • No need to install drivers. Portable, flexible, plug and play. -
Page 4: Specifications
Specifications 1 x Optical (Toslink), Input Ports: 1 x Digital Coaxial 1 x RCA (L/R), Output Ports: 1 x 3.5mm (Headphone) 103db Signal to Noise Ratio: 95db Channel Separation: (20Hz ~ 20KHz) +/- 0.5db Frequency Response: Dimensions: 72mm(D)x55mm(W)x20mm(H) Weight :... -
Page 5: Operation Controls And Functions
Operation Controls and Functions Panel Descriptions Top Panel Front Panel Rear Panel Side Panel... - Page 6 Connections • Connect a source (e.g. Blu-Ray Player, game console, A/V Receiver, etc.) to the audio decoder’s SPDIF input port by fiber cable or Coaxial input port by coaxial cable. • Connect a headphone or analogue audio amplifier to the audio output port on the decoder.
-
Page 7: Connection Diagram
Connection Diagram INFORMATION ON WASTE DISPOSAL FOR CONSUMERS OF ELECTRICAL & ELECTRONIC EQUIPMENT. When this product has reached the end of its life it must be treated as Waste Electrical & Electronic Equipment (WEEE). Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.
