Minoston MP31Z User Manual

Z-wave smart plug
Hide thumbs Also See for MP31Z:
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual

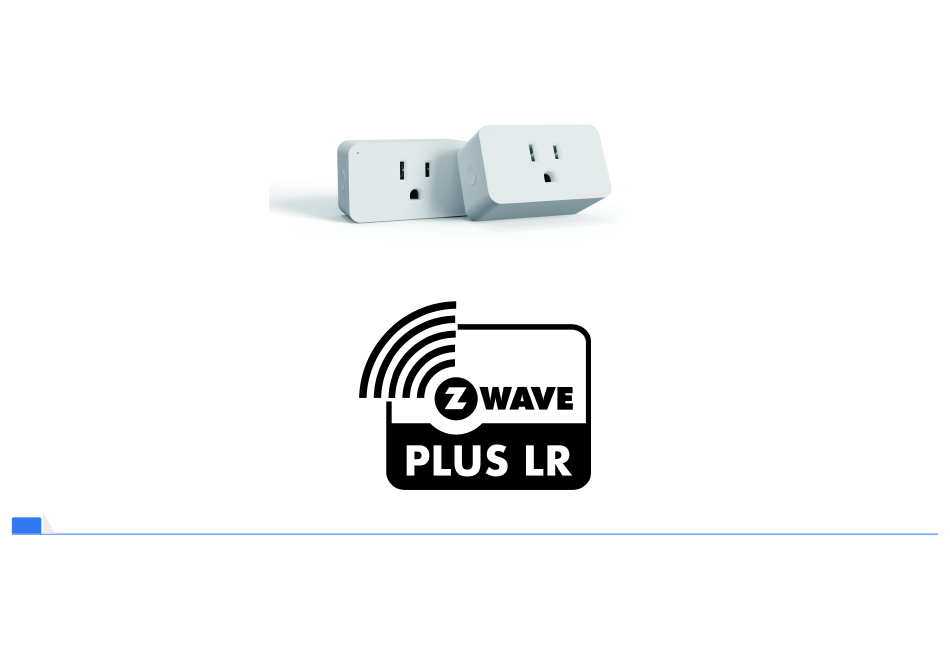

MP31Z-800S User Manual
Z-Wave SMart Plug User Manual
FCC
Federal Communications Commission (FCC) Statement FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this
equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by

Advertisement

loading
Need help?

Need help?

Do you have a question about the MP31Z and is the answer not in the manual?

Questions and answers

Related Manuals for Minoston MP31Z

Summary of Contents for Minoston MP31Z

  • Page 1 MP31Z-800S User Manual Z-Wave SMart Plug User Manual Federal Communications Commission (FCC) Statement FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 2 MP31Z-800S User Manual turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.
  • Page 3 (RF) signal by routing the signal around obstacles and radio dead spots to ensure that the signal is received at its intended destination. MP31Z is a security enabled Z-Wave Plus™ device. A security Enabled Z-Wave Plus™ Controller must be used in order to fully utilize the product.
  • Page 4 MP31Z-800S User Manual A. on/off button B. LED C. Output Outlet E. Input...
  • Page 5 MP31Z-800S User Manual Button & Indicator Function Description Button Definition 1. Press 1x: Turn on/off Outlet Z-Wave network inclusion(ADD) /exclusion(REMOVE) 2. Factory Reset：Remove the switch from power. Press and hold the manual button, plug the switch in and continue holding the manual button for 3 seconds.
  • Page 6 MP31Z-800S User Manual PACKAGE DEVICE...
  • Page 7 MP31Z-800S User Manual Command Class Endpoint ROOT CC List Command Class Name Version Required Security Class Z-Wave Plus Info none Security 2 none Supervision none Transport Service none Association highest granted Association Group Information highest granted Multi Channel Association highest granted...
  • Page 8 MP31Z-800S User Manual Basic Set Mapping The Basic Set command is mapped to Binary Switch Set command. The Basic Report command is mapped to Binary Switch Report command. Indicator Command Class The indicator (blue color) will flashes according the indicator set command received from HUB.
  • Page 9 MP31Z-800S User Manual Configuration Parameters Read Number Name Information Format / Size Altering Advanced Default Only Reaction of led Change the reaction of the indicator. 1 byte unsigned integer Indicator brightness Setting indicator's brightness. 1 bytes unsigned integer Restore status Restore status after power failure.
