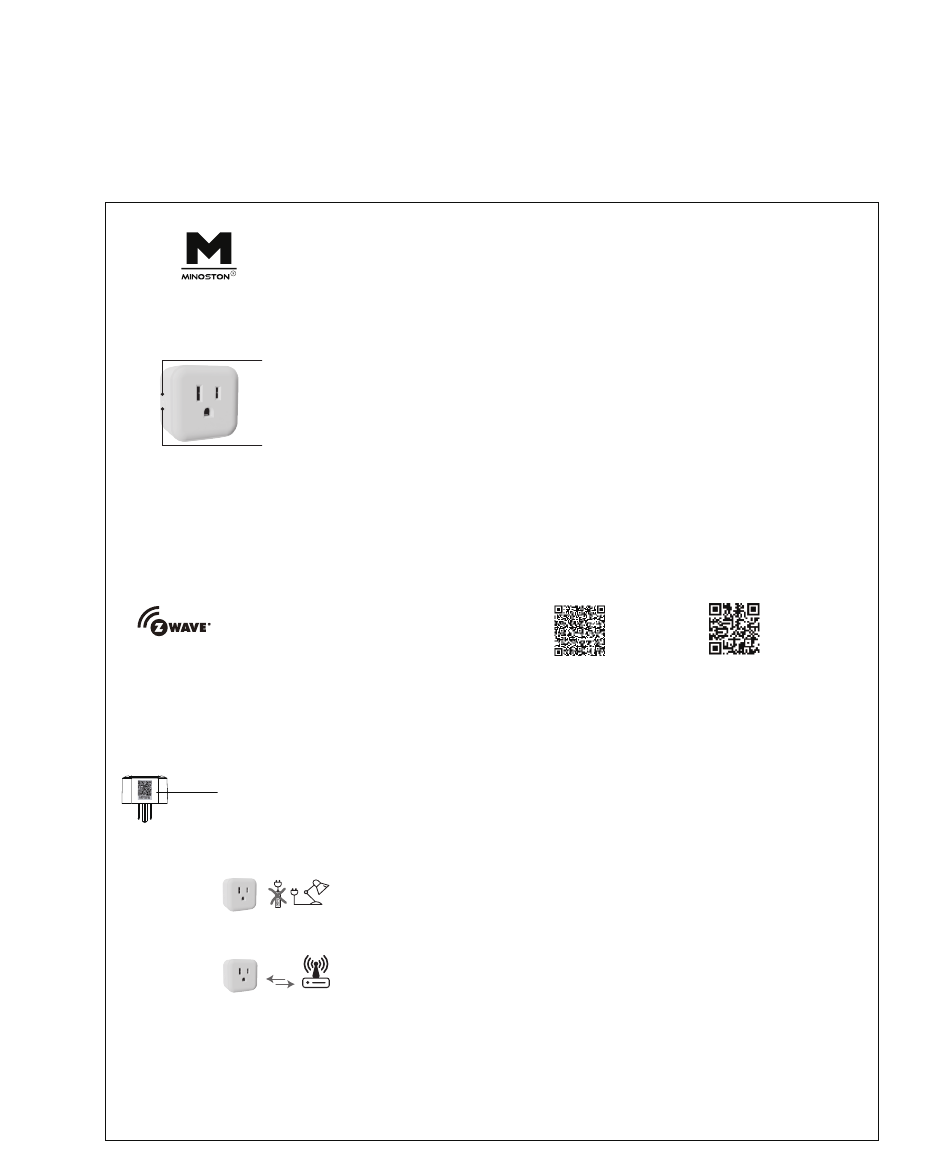

Minoston MP21Z Manual

Z-Wave Mini Smart Plug(800S)
• MP21Z •

LED indicator

Blue: Light status indicator
Blue: ADD / Inclusion
Purple: Remove / Exclusion
Red: Network Failure
Program button
Manually ON/OFF: Press the button once.
Add Remove: Press the button 3 times.
Reset: Press the button twice quickly then hold a
3rd press for 10 seconds

Features:

1. Z-Wave control on/off.
2. Z-Wave controlled AC outlet for standard incandescent lighting, CFL/LEDs,
fans or small appliances(1875W Resistive Max).
3. Grounded 3-wire power connection for safety.
4. Remembers and restores on/off status after power failure.
5. Built-in Z-Wave Plus signal repeater to extend network range.
6. S2 security and 800 Z-Wave chip for reliable wireless communication.
7. Work with most of Z-Wave controllers.

Z-WAVE INTEROPERABILITY

This product can be included and operated in any Z-Wave network with other Z-Wave
certified devices from other manufacturers and/or other applications. All non-battery
operated nodes within the network will act as repeaters regardless of vendor to increase
the reliability of the network. This Device supports Lifeline (association group 1) supporting
1 node for lifeline communication. Group 1 must be assigned the Node ID of the primary
controller where unsolicited notifications will be sent. The Z-Wave controller should set this
association automatically after inclusion. Lifeline association only supports the "Device Reset
Locally" function.

Adding Device to Z-Wave Network for QR Code

Scan here for SmartStart inclusion
Note: FULL DSK Code can be found on the packaging box.
Do not remove or damage them.
Notes:
1. Plug the device you want to control into the Z-Wave Smart plug controlled outlet.
NOTE: Plug directly into the outlet, do not use with power strip.
2. Your device may need to be within 100 feet of the controller to be included. If so, include
the device to the network within 10 feet of the controller and relocate it to the desired
position in your home. Be sure to refresh the network if the device is included in this manner.
100 feet
Z-Wave Network Configuration

Adding Device to Z-Wave Network

1. Follow the instructions for your Z-Wave certified controller to add a device to the Z-Wave
network.
2. Once the controller is ready to add your device, press the Manual/ Program button on the
smart plug 3 times quickly.
Z-Wave Long Range
Specification
Note:MP21Z Support Z-Wave Long Range
Input: 125VAC 60Hz
The device is compatible with smartstart.SmartStart enabled products can be added into a
Frequency: 908.42 MHz
Z-Wave network by scanning the Z-Wave QR Code found on the top of the outlet or the back
Loading: 15A 1875W RESISTIVE OR
GENERAL PURPOSE
of the box with a controller providing SmartStart inclusion. No furthe action is required and the
10A MAX 1250W TUNGSTEN
SmartStart product will be added automaticaly within 10 minutes of being switched on and in
1/2 HP
the network vicinity.
Temperature Range: 32° F~104° F
Note: Z-Wave Long Range device can only support be included via SmartStart. Extract the DSK
Indoor use in dry location
from end device and paste it into the DSK Value in PC Controller, make sure the Long Range'
option is ticked.

To Remove the Device

1. Follow the instructions for your Z-Wave certified controller to remove a device from the
Z-Wave network..
2. Once the controller is ready to remove your device, press the manual / program button on the
smart plug 3 times quickly.
The green light is on for 2s when the removal is successful.

To Return the Device to Factory Defaults

Manual: Click the button twice quickly then hold it at least 10 seconds.
Host reset: Remove it from hub, the device will be restore to factory default.

Association Group

(LED flashes twice when the configuration parameter changed.)
Support 2 groups, each group max support 5 devices
Group 1 lifeline
Group 2 Left outlet send basic set.
Regarding SmartThings Usage Exceptions:
If the SmartThings replacement service results in abnormal use of the product, please
install a new driver(edge driver) according to the following solutions.
1. Scan the above QR code(left)to open the SmartThings Edge Driver subscription channel of the
product.
2. Log in to the SmartThings account after opening the SmartThings Edge Driver subscription
channel.
3. Select the SmartThings Hub you are using, and click "Enroll".
4. After "Enroll" is completed, click "Available Drivers".
5. After entering the "Available Drivers" page, select "Z-Wave Switch" to "Install".
Note: Please scan the QR code on the right to view the guide video.
LED Indicator
This parameter can access you to choose the LED indicator to be on when the switch(light)
is on/off, or LED indicator remains on/off all times.
(Green LED flashes twice when the configuration parameter changed.)
Operation: quickly press 6x: change parameter
Parameter =1, size =1 byte,
value=00(default) --- LED is On when switch(light) is On.
value=01--- LED is On when the switch(light) is Off.
value=02 --- LED is disabled
Auto Turn-Off Timer
This parameter can access you to set a timer to make the switch turn off automatically after
the switch turns on.
The number entered as value corresponds to number of minutes. Operation: Set up on the hub.
(Green LED flashes 3 times when the configuration parameter changed.)
--- Parameter =2, Size=4，Value: 0– 65535(minutes);
Value=0(default) disable
(SmartThings driver subscription channel)
Please contact us if you have any questions:
www.minoston.com
ask@minoston.com

Parameter Settings

(guide video)
