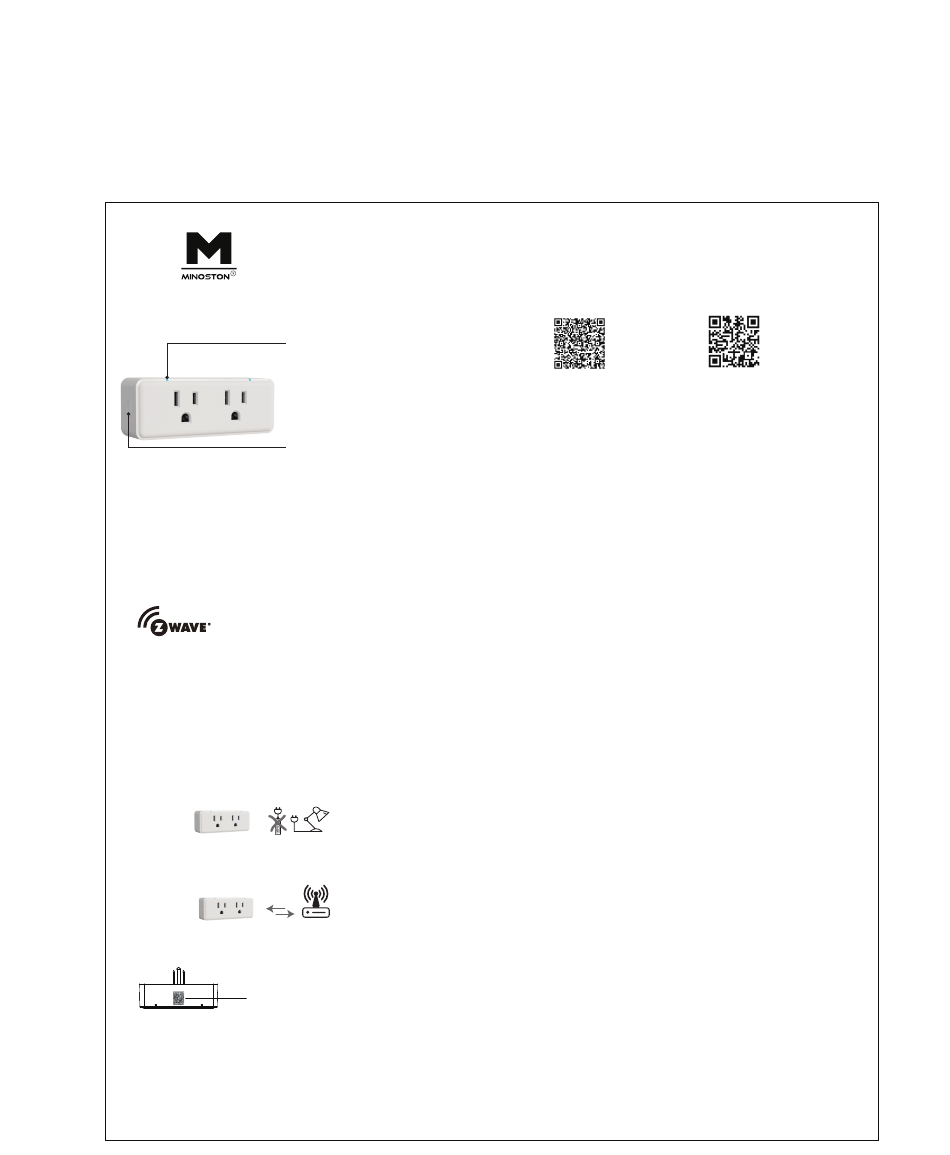

Minoston MP26Z Manual

Z-Wave Mini Smart Plug (800S)
• MP26Z •
LED indicator
• LED Blinks quickly: Add/Inclusion
• LED Blinks slowly: Remove/Exclusion
Program button
• Press Once: Manually ON/OFF the device (The
buttons on the left and right control the outlets
on the left and right respectively.)
• Press 3 times quickly (Left/Right): Inclusion/
exclusion mode
• Press the button twice quickly then hold a 3rd
press for 10 seconds: Return device to factory
settings
Features:
1. Z-Wave control on/off.
2. Z-Wave controlled AC outlet for standard incandescent lighting, CFL/LEDs,
fans or small appliances(1875W Resistive Max).
3. Grounded 3-wire power connection for safety.
4. Remembers and restores on/off status after power failure.
5. Built-in Z-Wave Plus signal repeater to extend network range.
6. S2 security and 800 Z-Wave chip for reliable wireless communication.
7. Work with most of Z-Wave controllers.
Z-WAVE INTEROPERABILITY
This product can be included and operated in any Z-Wave network with other Z-Wave-certified
devices from other manufacturers and/or other applications. All non-battery-operated nodes
within the network will act as repeaters regardless of vendor to increase the reliability of the
network. This Device supports Lifeline (association group 1) supporting 1 node for lifeline
communication. Group 1 must be assigned the Node ID of the primary controller where
unsolicited notifications will be sent. The Z-Wave controller should set this association
automatically after inclusion. Lifeline Association only supports the "Device Reset Locally"
function.
Add the Device to Z-Wave Network with QR Code
1. Plug In the Smart Plug: Insert the Z-Wave smart plug into a power outlet.
Note: (1) Plug directly into the outlet. Do not use with power strip.
(2) The device may need to be within 100 feet of the z-wave controller to pair. Therefore, it is
recommended to move the device within 100 feet of the controller, and then relocate it to the
desired location in your home once paired. If the device is included in this way, be sure to
refresh the network.
100 feet
2. Refer to your specific Z-Wave hub or controller's instructions to enter inclusion mode.
3. Put the device in Inclusion Mode: Scan the QR on the device and then press the button
(left/right) 3 times quickly.
Scan here for SmartStart inclusion
Note: FULL DSK Code can be found on the packaging box.
Do not remove or damage them.
4. Wait for Pairing Confirmation: The Z-Wave controller should detect the smart plug, and you
may receive a confirmation on the controller. Confirm it to complete the settings.
Troubleshooting:
1. If the device does not enter pairing mode (the LED indicator does not blink), press the
device button 3 times faster.
2. If the device does not enter pairing mode (the LED indicator does not blink) even after
pressing the device button 3 times faster, reset the device by pressing the button twice quickly
then hold a 3rd press for 10 seconds.
3. If the reset fails, exclude the device from your Z-Wave hub (z-wave exclusion).
Specification
4.If the z-wave controller does not find the device, bring the device as close as possible to
Input: 125VAC 60Hz your z-wave controller and re-add the device. After the network configuration is completed,
Frequency: 908.42 MHz
the device can be moved to the location you want.
Loading: 15A 1875W RESISTIVE OR
5. Special reminder for users that connected the device with SmartThings or Hubitat:
GENERAL PURPOSE
(1) For SmartThings: If your z-wave controller is SmartThings, be sure to install the edge driver
10A MAX 1250W TUNGSTEN
by following steps to solve the problem of abnormal usage.
1/2 HP
Temperature Range: 32° F~104° F
①
the product.
②
channel.
③
④
⑤
After installing our egde driver, please remove the device from your hub and re-add it.
Note: Please scan the QR code on the right to view the guide video.
(2) For Hubitat: Device handler is needed for this device. Please download it from www.minos-
ton.com.
Add Z-Wave Long Range with QR Code
The device is compatible with SmartStart. SmartStart enabled products can be added to a
Z-Wave network by scanning the Z-Wave QR Code found on the top of the outlet or the back
of the box with a controller providing SmartStart inclusion. No further action is required and
the SmartStart product will be added automatically within 10 minutes of being switched on
and in the network vicinity.
Note: Z-Wave Long Range device can only support be included via SmartStart. Extract the DSK
from the end device and paste it into the DSK Value in the PC Controller, make sure the "Long
Range" option is ticked.
Return Factory Defaults
Manually reset: Press the button twice quickly then hold a 3rd press for 10 seconds.
Host reset: After being removed from the host, the device is restored to factory settings.
Remove the Device
1. Follow the instructions for your Z-Wave-certified controller to remove a device from the
Z-Wave network.
2. Once the controller is ready to remove your device, press the manual button on the
left/right smart plug 3 times quickly.
Association Group
The device supports 3 groups and each group supports up to 5 devices.
Group 1 Lifeline
Group 2 Left outlet sends basic set
Group 3 right outlet sends basic set
LED Indicator Status
This parameter can set the status of the indicator light when the device is turned on or off.
Operation: Press the manual button 6 times quickly to change parameters.
Parameter =1, size =1byte, value=00(default) Led on when outlet on
Parameter =1, size =1byte, value=01
Parameter =1, size =1byte, value=02
Parameter =1, size =1byte, value=03
2.Timer Auto-off
This parameter can set a timer to turn off the device automatically. The value entered in the
parameter corresponds to the number of minutes.
Operation: Set up in the z-wave hub.
Parameter =2, Size=4byte, Values:0-65535 (Min)
Parameter =3, Size=4byte, Values:0-65535 (Min)
Value=0(default)
3.Timer Auto-on
(SmartThings driver subscription channel)
Scan the above QR code(left)to open the SmartThings Edge Driver subscription channel of
Log in to the SmartThings account after opening the SmartThings Edge Driver subscription
Select the SmartThings Hub you are using, and click "Enroll".
After "Enroll" is completed, click "Available Drivers".
After entering the "Available Drivers" page, select "Z-Wave Switch" to "Install".
Please contact us if you have any questions:
www.minoston.com
ask@minoston.com
Parameter Settings
Led off when outlet on
LED always ON
LED always OFF
disable
(guide video)
auto-off the left outlet
auto-off the right outlet
