Contents
Symbols used in this manual . . . . . . . . . 14
Symbols on the power tool . . . . . . . . . . . 14
Technical data . . . . . . . . . . . . . . . . . . . . 14
Overview . . . . . . . . . . . . . . . . . . . . . . . . 15
Important safety information . . . . . . . . . 16
Noise and vibration . . . . . . . . . . . . . . . . 17
Instructions for use . . . . . . . . . . . . . . . . 18
Maintenance and care . . . . . . . . . . . . . . 22
Disposal information . . . . . . . . . . . . . . . 23
conformity . . . . . . . . . . . . . . . . . . . . 23
Exemption from liability . . . . . . . . . . . . . 23
Symbols used in this manual
WARNING!
Denotes impending danger. Non-
observance of this warning may result in
death or extremely severe injuries.
CAUTION!
Denotes a potentially dangerous situation.
Non-observance of this warning may result
in slight injury or damage to property.
NOTE
Denotes application tips and important
information.
Symbols on the power tool
Before switching on the power tool,
read the operating manual!
Wear protective goggles!
Wear ear defenders!
Disposal information for the old
machine (see page 23)!
14
Technical data
Machine type
Nominal voltage
Battery
Stroke rate, no load
Stroke
Max. material thickness
- metal
- wood
Weight according to
„EPTA-procedure
01/2003"
(without battery)
Weight of battery
- AP 18.0/2.5 Ah
- AP 18.0/5.0 Ah
RSP DW 18.0-EC
RSP DW 18.0-EC

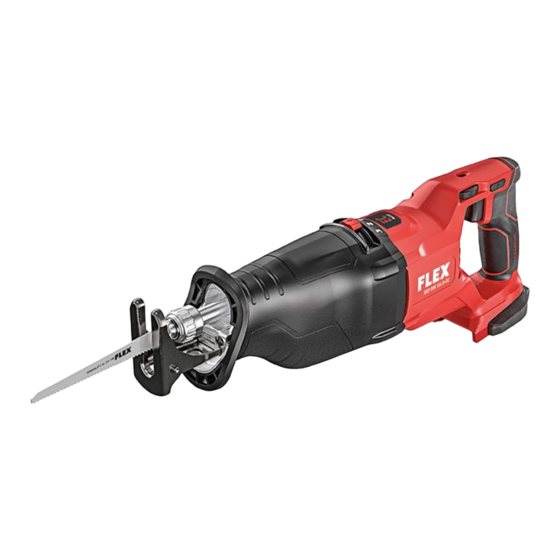

Cordless sabre
saw
V
18
AP 18.0 (2.5 Ah)
AP 18.0 (5.0 Ah)
rpm
0-3000
mm
32
mm
20
mm
230
kg
4.15
kg
0.42
kg
0.72
Advertisement
Table of Contents
Related Manuals for Flex RSP DW 18.0-EC
Summary of Contents for Flex RSP DW 18.0-EC
-
Page 1: Table Of Contents
RSP DW 18.0-EC Contents Technical data Symbols used in this manual ..14 RSP DW 18.0-EC Symbols on the power tool ... 14 Technical data . -
Page 2: Overview
RSP DW 18.0-EC Overview Cutting support Stroke number control Tool holder Switch-on interlock Tool holder lock Rear handle LED lighting Slot for battery For illuminating the working area. Cutting support lock Front handle Li-ion battery (2.5 Ah or 5.0 Ah) -
Page 3: Important Safety Information
RSP DW 18.0-EC Important safety information Keep hands away from the sawing area. Do not grip under the workpiece. Risk of injury if contact is made with the saw blade! WARNING! Guide the power tool only when it is Before using the power tool, please read switched on against the workpiece. -
Page 4: Noise And Vibration
RSP DW 18.0-EC Special safety instructions Identify additional safety measures to protect the operator from the effects of Do not work on materials which release vibration such as: maintain the tool and hazardous substances (e.g. asbestos). the cutting accessories, keep the hands ... -
Page 5: Instructions For Use
RSP DW 18.0-EC Instructions for use Battery state of charge Press the button to check the state of WARNING! charge at the state of charge indicator LEDs. Remove the battery before carrying out any work on the power tool. - Page 6 RSP DW 18.0-EC NOTE Stroke number control If used saw blade is not discharged, pull saw blade forwards out of tool holder. Inserting new saw blade Select a saw blade to suit the material to be machined. Refer to the manufacturer’s catalogues for details of saw blades that can be used.
- Page 7 RSP DW 18.0-EC Adjusting the cutting support Operating instructions WARNING! WARNING! Remove the battery before carrying out any Always hold the power tool firmly with both hands! work on the power tool. The cutting support should always rest on the material when sawing so as to avoid excessive vibrations.
- Page 8 The CA 10.8/18.0 charger is designed to forwards. Slowly plunge the saw blade into the charge FLEX batteries of the following types workpiece. – AP 10.8 (2.5 Ah), When the cutting support is resting fully –...
-
Page 9: Maintenance And Care
RSP DW 18.0-EC Charging process CAUTION! Insert only original batteries in the supplied charger. Insert the charger mains plug. The display backlighting lights up green for 2 seconds and then goes out again. OK is displayed. Pull out the mains plug. -
Page 10: Disposal Information
For other accessories, in particular cutting 2011/65/EU. accessories, please refer to Responsible for technical documents: the manufacturer’s catalogues. FLEX-Elektrowerkzeuge GmbH, R & D Exploded drawings and spare-part lists can Bahnhofstrasse 15, D-71711 Steinheim/Murr be found on our homepage: www.flex-tools.com Disposal information...
