HME NEXEO HDX IB7000 Quick Reference Installation Manual

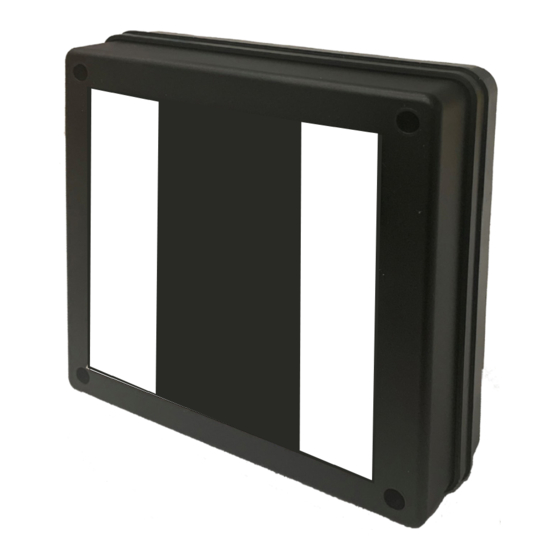

The IB7000 is an interface box used to connect the loop,
microphone, and speaker to a NEXEO Base Station.

TOOLS/EQUIPMENT REQUIRED

• Screwdriver/Wrench for opening speaker post.
• Wire Strippers, cutters, and other standard tools used
for terminating cables/wires.
• Audio Cable (not included)

INSTALLATION AND SETUP

Fig. 3 shows how the IB7000 is typically connected.
Adhesive strips on the housing allow the IB7000 to be
affixed to a clean, dry surface inside the speaker post.
Note: The IB7000 must be mounted vertically, inside
the speaker post, close to the speaker/microphone.
This will help minimize audio hum and noise (thus, do
not mount the IB7000 too far away). The IB7000 power
LED illuminates green when it is connected to a powered
on base station. The IB7000 cable to the base station
should not exceed 1000 ft (304 m).
• The two-pin Loop connector connects to the ground
loop detector.
• The three-pin PLC/BASE connector connects to J4500
on the base station. This connection requires the
shield/drain to be grounded; see Table 1.
• The seven-pin DM5 MIC | SPKR connector connects
to the Microphone and Speaker; see Table 2.
• The five-pin RELAY | BCKP SPKR connector (optional)
connects to an intercom system like the IC300 if a
backup is needed in the event of a system failure.
NEXEO Base Station J4500/J4501 (Spkr/Mic Intrfc)
Pin # Label
1 Spkr/Mic PL +
2 Spkr/Mic PL -
3 Shield
4 Spkr/Mic PL +
5 Spkr/Mic PL -
6 Shield
HM ELECTRONICS, INC.
2848 Whiptail Loop, Carlsbad, CA 92010 USA
Phone: 1-800-848-4468 Fax: 858-552-0172
Website: www.hme.com Email: support@hme.com
Quick Reference Installation Guide
to IB7000 PLC/BASE
IN1/PL+ (Red wire)
IN2/PC- (Black wire)
GND - (Shield/drain)
Table 1

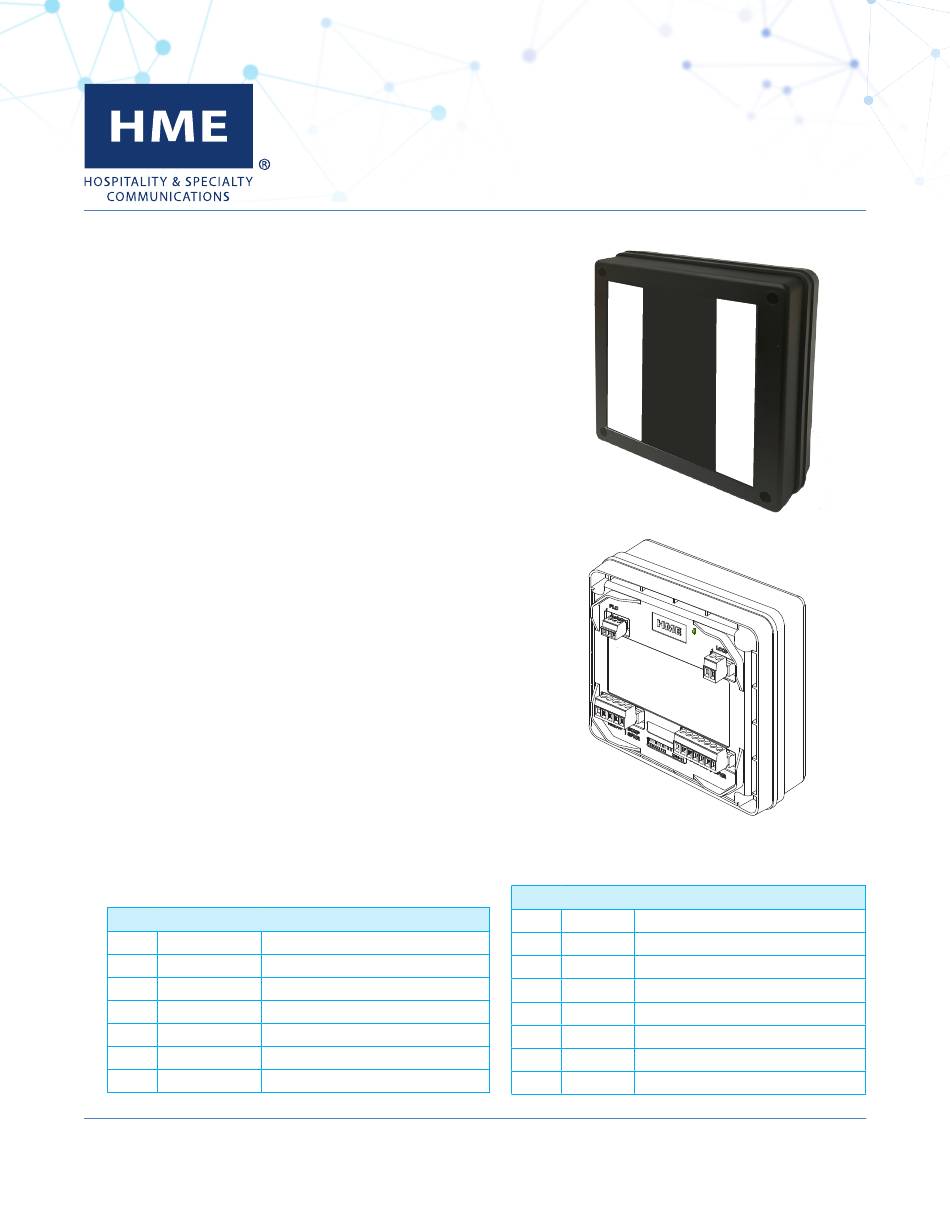

NEXEO | HDX™ IB7000 INTERFACE BOX
Connector Side
IB7000 DM5 MIC | SPKR connector
Pin # Label
1 Mic +
2 Mic -
3 GND
4 I.D.
5 GND
6 Spkr -
7 Spkr +
Fig. 1
Fig. 2
Description/wire color
Ext. Microphone positive (Red)
Ext. Microphone negative (Black)
Mic Shield (must be terminated)
1-WIRE I/F (Red) for SS7000 only
Ground (Black) for SS7000 only
Speaker negative (White)
Speaker positive (Green)
Table 2
HME# PUB-00073
Rev E 1/31/24
