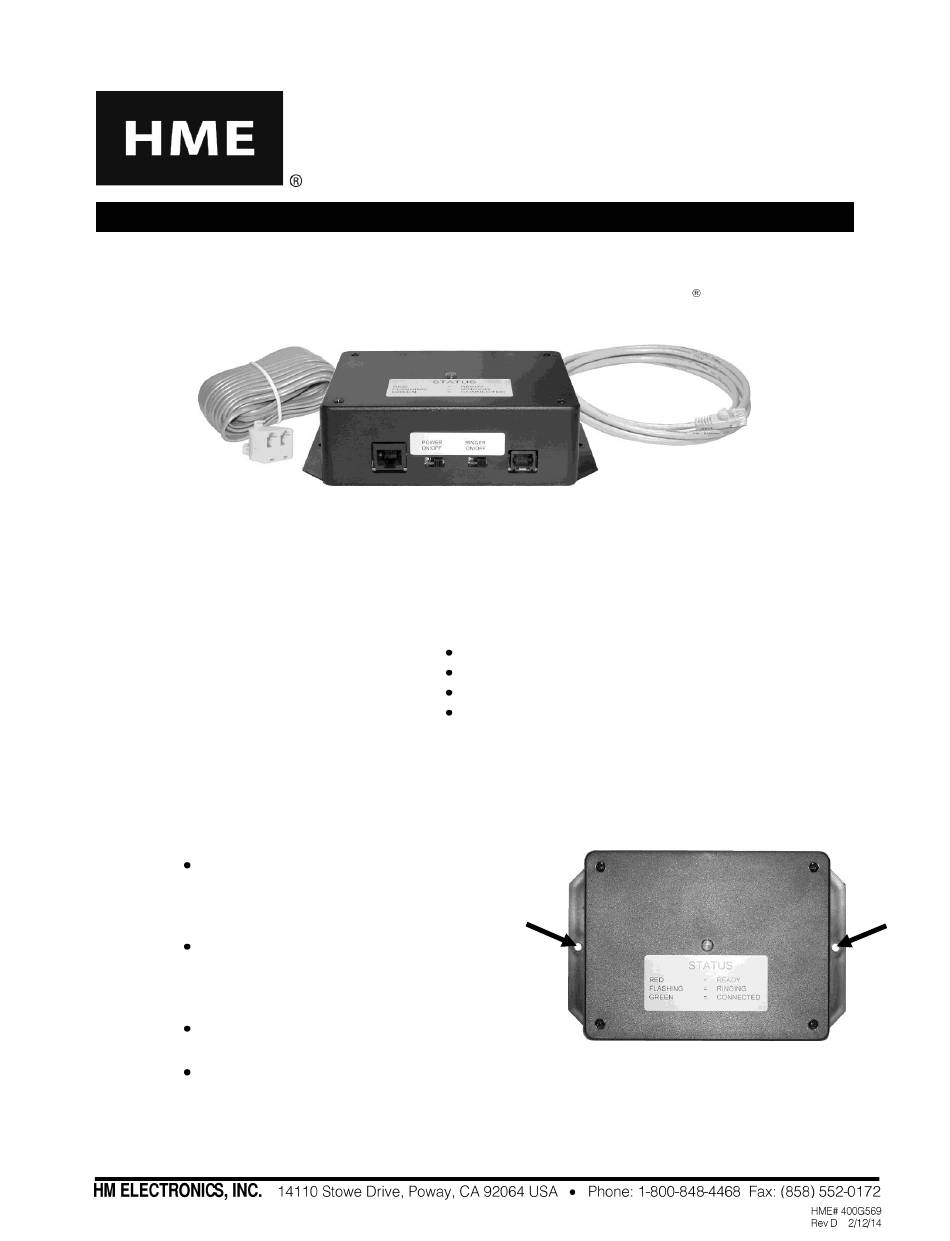

HME TI6000 Installation & Operating Instructions Manual

INSTALLATION / OPERATING INSTRUCTIONS
The TI6000 provides a link between a telephone and the Wireless IQ System. It allows its user
to answer and speak on the telephone using a COM6000 COMMUNICATOR . The TI6000 can
only be used with Wireless IQ Systems that were originally configured for single-lane operation.

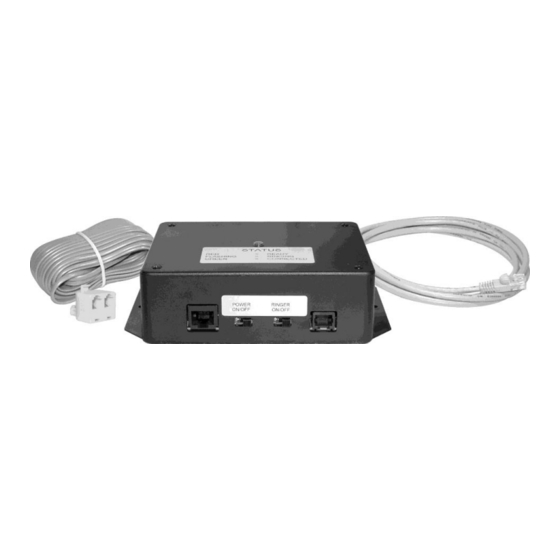

Figure 1. TI6000 with cables and telephone jack splitter
1. INSTALLATION
Installation of the TI6000 will take approximately 1 hour. Before you begin,
coordinate the time of installation with the store owner/manager to minimize
disruption of business.
The following tools are required:
1.1 Wall Mounting
The TI6000 must be mounted on the wall, not more than 2 ft (.61 meter) from the
Wireless IQ Base Station, so the base station interface cable will reach between the
two units. Mount the TI6000 as follows:
Hold the TI6000 against the wall at
the desired location. Mark the wall
through the screw hole in the flange
on each side of the unit.
Set the unit aside and drill two
/ inch (4.8 mm) holes at the
3
16
marked spots, deep enough to insert
the enclosed screw anchors.
Insert the screw anchors completely
into the two holes in the wall.
Hold the unit against the wall with
the holes in its flanges over the
anchors. Screw the two enclosed
screws through the holes, all the way
into the anchors.
Telephone Interface
Phillips (cross-point) screwdriver, size #2
Power drill and drill bit set
Wire cutter/stripper
Small standard (slotted) screwdriver
Figure 2. Mark wall through screw holes
TI6000
shown by arrows
