Users and Installation Manual: WIFI Monitor for Water Leckage and Water Usage (AQXWIE02)
WIFI Monitor for
Water Leckage and
Water Usage
SKU: AQXWIE02
Version: 1.1.0
Product Description
The Aqua-Scope water monitor detects water consumption and water leaks by analyzing
pressure waves in tap water and continuously records the temperature, water consumption, and
water pressure. In combination with an Aqua-Scope remotely controlled shut-off valve, the system
regularly searches for microleaks and shuts off the water if necessary. When leaks are detected or if
pressure or temperature thresholds are exceeded or undershot, the user is alerted via radio. An
additional wired flood sensor can be connected directly to the device.

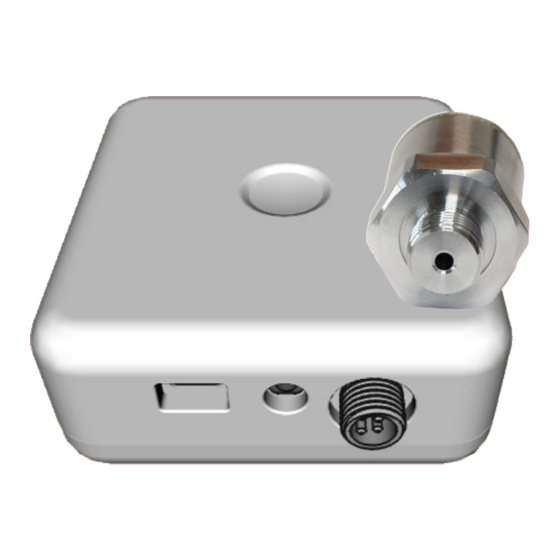

The device consists of two parts:
The main housing for signal processing and radio communication with a battery compartment.
The external sensor head, which is connected to the water pipe. The sensor head is installed
somewhere in the building at a 1/8 inch access opening or with a supplied T-piece under any sink
at the angle valve. Thanks to the excellent sound properties of water, a single sensor anywhere in
the house is sufficient to detect water consumption and leaks throughout the building.
The device communicates via WIFI, either to the Aqua-Scope Cloud and thus to a free app on the
mobile phone or PC, or via MQTT to a server of your choice, or as a JSON object to a Smart Home
Gateway.
The sensor is powered either by an external power supply with a USB-C power supply or by an optional
internal ER26500 battery (Bobbin Cell C). Both the sensor head (IP67) and the main housing (IP65) are
waterproof and can be used outdoors or in particularly humid and/or dirty environments.
Copyright © 2023 Aqua-Scope Technologies, Sakala tn 7-2, 10141 Tallinn, Estonia, www.aqua- scope.com
Advertisement
Table of Contents
Related Manuals for Aqua-Scope AQXWIE02
Summary of Contents for Aqua-Scope AQXWIE02
- Page 1 The device communicates via WIFI, either to the Aqua-Scope Cloud and thus to a free app on the mobile phone or PC, or via MQTT to a server of your choice, or as a JSON object to a Smart Home Gateway.
-
Page 2: Installation
8. Check all three connections for leaks for a few seconds. 9. Attach the Aqua-Scope to a suitable location with double-sided tape and connect the sensor head to the main device. Insert the flood sensor into the audio jack if necessary. -
Page 3: Device Operation
Users and Installation Manual: WIFI Monitor for Water Leckage and Water Usage (AQXWIE02) can be restored by waiting for the first beep sound when inserting the batteries or connecting the power supply, then pressing and holding the button for 4 seconds (counting four red blinks helps). If the LED flashes red three times quickly, please release the button. - Page 4 When the monitor is connected to the local WLAN, its functions can be accessed through various communication channels (even simultaneously): 1. Mobile Phone App: The Aqua-Scope App is not found in the app store of your mobile phone. We use a Progressive Web App (PWA), more information at wikipedia.org/wiki/Progressive_web_app.
- Page 5 Users and Installation Manual: WIFI Monitor for Water Leckage and Water Usage (AQXWIE02) parameter 7. The reason for this could be a pipe break; however, the water may have simply been turned off. 4. The external sensor is not connected to the main device.
-
Page 6: Led Indicator
The motor needs to be paired with the monitor through the Aqua-Scope App. In the app's configuration menu, there is an option for "New Sub-Device." Only the QR code/ID on the device needs to be entered, and the motor is ready for operation. -
Page 7: Button Operation
Users and Installation Manual: WIFI Monitor for Water Leckage and Water Usage (AQXWIE02) The device features a tricolor LED (red/green/yellow) to signal different operational states. The LEDs only remain continuously lit when powered by an external source. In battery mode, the LEDs remain off after the startup sequence to conserve power. - Page 8 If you want to use the device within a machine-2-machine environment (MQTT, JSON Web Services) the Aqua-Scope Developers Manual will provide you with all the required information that apply to all Aqua_Scope devices. Here you find the missing device-specific information complementing the description within the Aqua-Scope Developers Manual.
-
Page 9: Scope Of Delivery
Users and Installation Manual: WIFI Monitor for Water Leckage and Water Usage (AQXWIE02) Type = 4 (mask = 0x008): The measures water pressure exceeded the lower pressure threshold defined in configuration parameter 7. The value provided with the alarm message contains the actual pressure sensor value. -
Page 10: Support And Contact
The reproduction and distribution of the documentation and software supplied with this product and the use of its contents is subject to written authorization from Aqua-Scope. We reserve the right to make any alterations that arise as the result of technical development. - Page 11 Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.aqua-scope.com/ce Español Por la presente, Aqua-Scope Technology OÜ declara que el tipo de equipo radioeléctrico AQXWIE02 es conforme con la Directiva 2014/53/UE. El texto completo de la declaracin UE de conformidad está disponible en la direccin Internet siguiente: www.aqua-scope.com/ce...
-
Page 12: Disposal Guidelines
Português O(a) abaixo assinado(a) Aqua-Scope Technology OÜ declara que o presente tipo de equipamento de rádio AQXWIE02 está em conformidade com a Diretiva 2014/53/UE. O texto integral da declarao de conformidade está disponível no seguinte endereo de Internet: www.aqua-scope.com/ce Română...
