Users and Installation Manual: LoRaWAN Warm Water Heating Monitor (HEALWE02)
LoRaWAN Warm
Water Heating
Monitor
SKU: HEALWE02
Version: 2.0.0

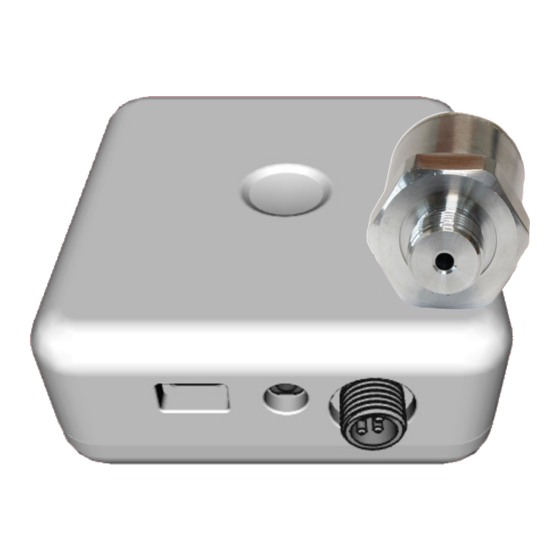

Product Description
The Aqua-Scope monitor for hot water heating systems records the temperature and pressure of the
water in the heating circuit. of the water in the heating circuit. It can be installed either in the flow or in
the return.
The device consists of two parts:
Main housing for signal processing and radio communication with battery compartment.
The external sensor head is connected to the water pipe. The stainless steel sensor head has a
silicon sensor mounted in silicone oil for highly accurate and low-noise pressure measurements in
a wide operating range. The measuring range for pressure is between 1 and 10 bar. The sensor
values are converted into digital values directly in the measuring head to suppress interference
from the connection to the main housing. In addition, the temperature of the liquid medium is
measured directly at the stainless steel diaphragm and is therefore very precise.
The sensor can send an alarm message if freely definable threshold values are exceeded or not reached.
The sensor's polling frequency can be set between 0.1 second and several minutes and defines the
battery life. For a measuring interval of 1 second, a battery life of approx. 10 years is calculated.
The device communicates via LoRaWAN as a Class A device and can also be operated as a Class C
device via configuration parameters.
The device is powered either via an external power supply with USB-C power supply unit or via an
optional internal ER26500 battery (Bobbin Cell C).
Both the sensor head (IP67) and the main housing (IP65) are waterproof and can be used outdoors or in
Copyright © 2022 Aqua-Scope Technologies, Sakala tn 7-2, 10141 Tallinn, Estonia, www.aqua- scope.com
