Users and Installation Manual: Aqua-Scope Monitor 2 (AQSWIE02)
Aqua-Scope Monitor
2
SKU: AQSWIE02
Version: 1.0.2
Product Description
The Aqua-Scope Water Monitor detects damaging water leaks. Additionally, it records the total
consumption of water in the home and the temperature and the pressure of the water. The device
applies advanced signal processing analyzing water pressure waves traveling inside the pipes of the

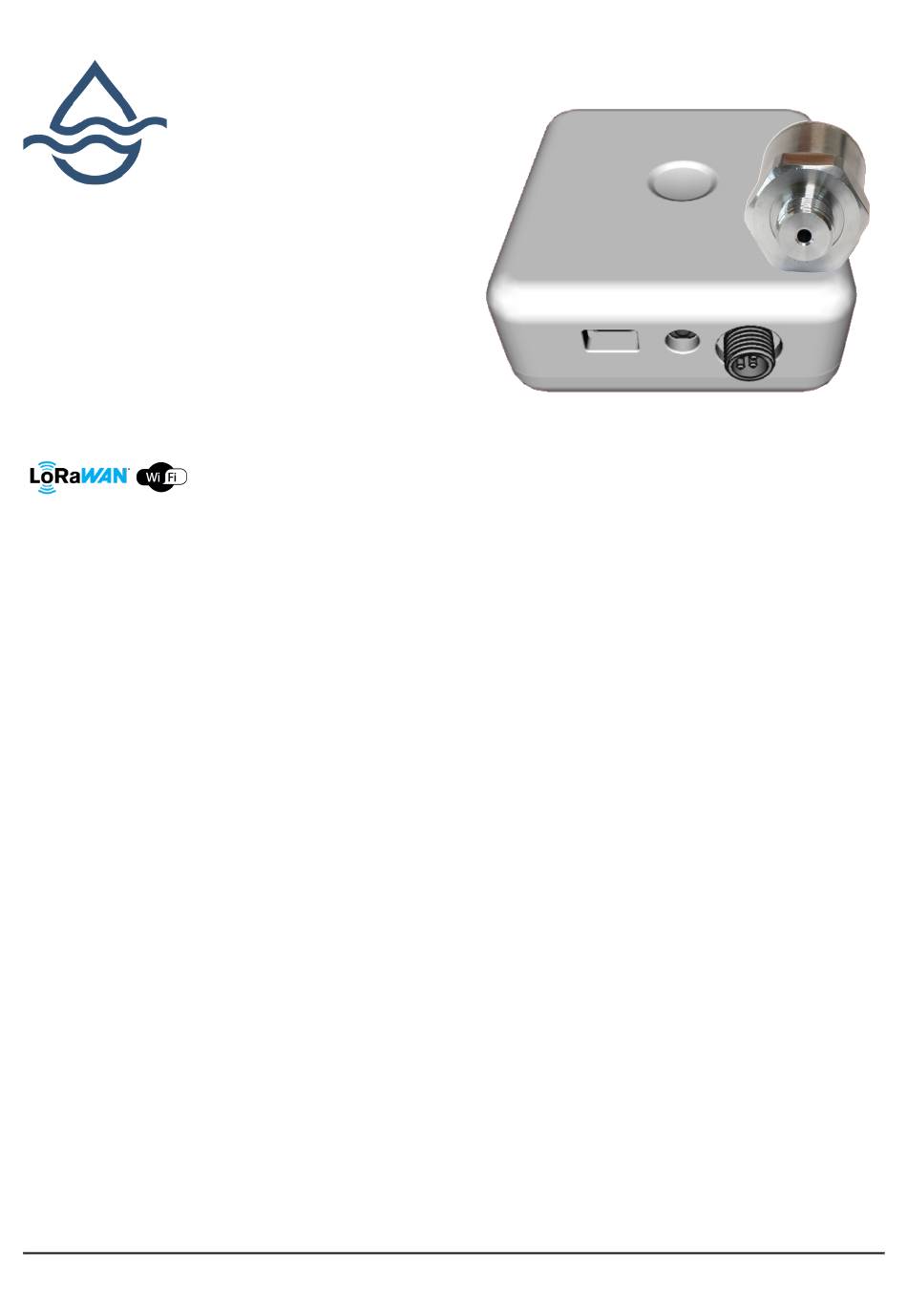

house water system. It consists of two devices:(a) the main body with a battery compartment, (b) the
external sensor head connected to the water pipe.
The device has two wireless communication options. When connected to your local WIFI network it will
send all sensor data and alarms to the Aqua-Scope Cloud and receive commands the same way. Your
mobile app can access the data and present current and historical values and events. When connected
to a LoRaWAN network all data and alarms will be sent to your LoRaWAN network of choice. You can
operate the device with WIFI or LoRaWAN connection or run both connections in parallel.
A single sensor can monitor the whole home or apartment and additional peripheral devices such
as Valve Motors or Flood Sensors can be assigned to the monitor to enhance functionality.
The device is powered either from an external power supply and/or by an internal ER26500 (Bobbin Cell
C) battery. If external power is available the internal battery will not be used and stays ready when
power fails.
Installation Requirements
The Aqua-Scope Water Monitor watches the water pressure and water pressure waves (water noise) of
the home water installation system. The Aqua-Scope water microphone must be connected to the pipe
system at one single point in the home. Ideal connection points are edge valves located below sinks or
beside toilets. Alternatives are 1/4 inch revision openings on pressure reduction valves, shut off vales or
other installation gear. It is recommended to find a place as low in the home as possible (ideally
