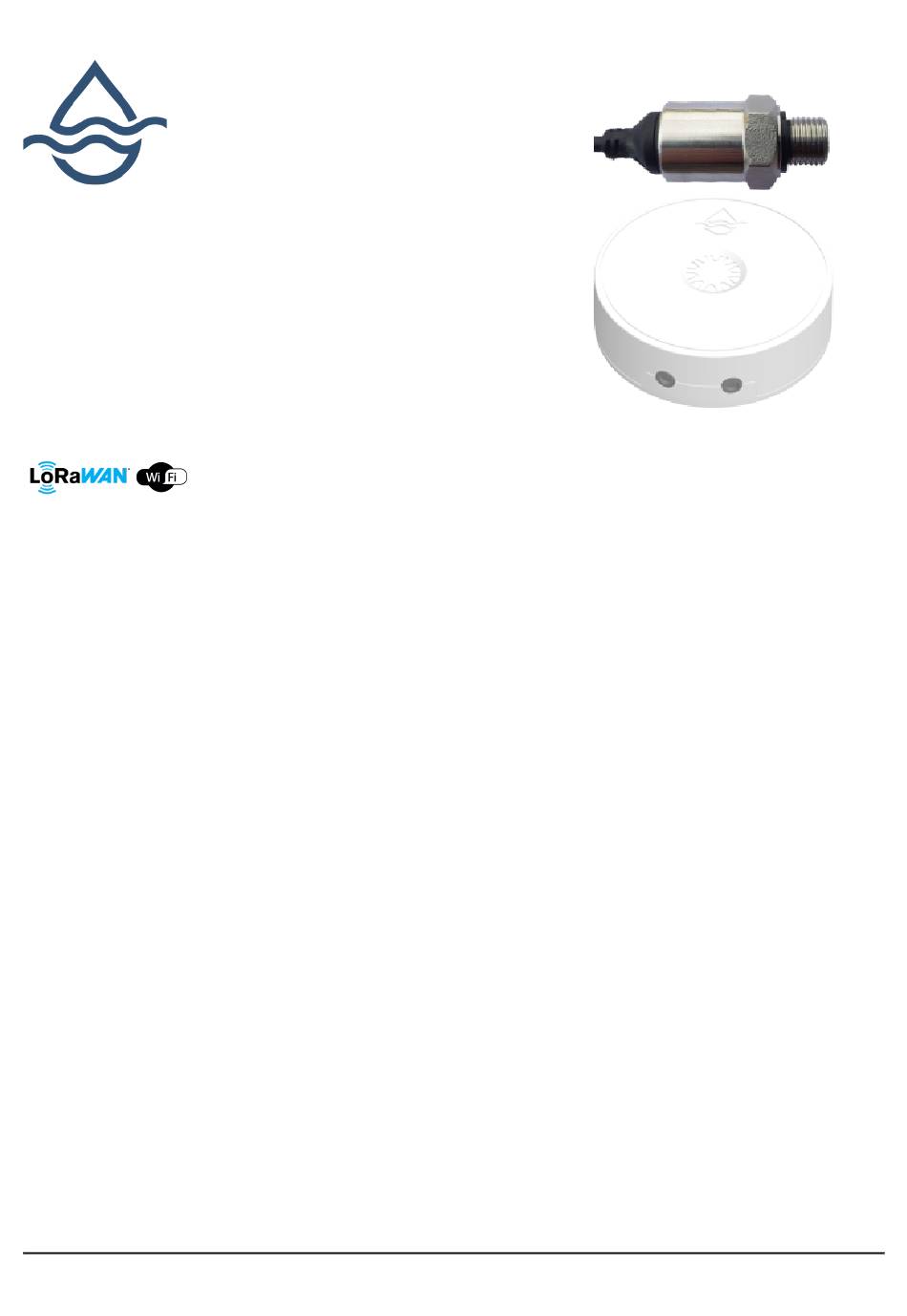

Users and Installation Manual: Aqua-Scope Water Monitor (AQSWIE01)
Aqua-Scope Water
Monitor
SKU: AQSWIE01
Version: 1.0.4
Product Description

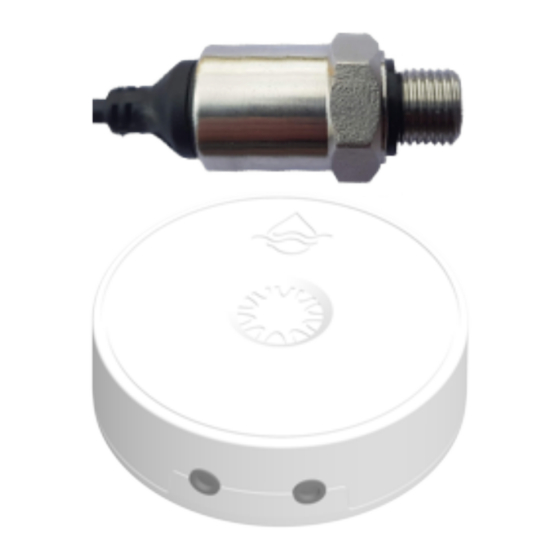

The Aqua-Scope Water Monitor records consumption of water in the home and it detects damaging
water leakages. The device applies several advanced signal processing analyzing water pressure
waves traveling inside the pipes of the house water system.
The device has two wireless communication options. When connected to your local WIFI network it will
send all sensor data and alarms to the Aqua-Scope Cloud and receive commands the same way. Your
mobile app can access the data and presents current and historic values and events. When connected to
a LoRaWAN network all data and alarms will be sent to your LoRaWAN network of choice. You can
operate the device with WIFI or with LoRaWAN connection or you run both connections in parallel.
A single sensor can monitor the whole home or apartment and additional peripheral devices such
as Valve Motors or Flood Sensors can be assigned to the monitor to enhance functionality.
While installation in single-family home will provide water consumption for the whole home, the
consumption metering in multi-family homes depends on the way the water pipes are installed. Leak
protection functions such as Pipe-Check or monitoring of pressure anomalies will work regardless of the
design of the home.
Installation Requirements
The Aqua-Scope Water Monitor watches the water pressure and water pressure waves (water noise) of
the home water installation system. The Aqua-Scope water microphone must be connected to the pipe
system at one single point in the home. Ideal connection points are edge valves located below sinks or
beside toilets. Alternatives are 1/4 inch revision openings on pressure reduction valves, shut off vales or
other installation gear. It is recommended to find a place as low in the home as possible (ideally
basement or first floor) but it is important to find a place 'after' the Pressure Reducing Valve PRV (The
Copyright © 2022 Aqua-Scope Technologies, Sakala tn 7-2, 10141 Tallinn, Estonia, www.aqua- scope.com
Advertisement
Table of Contents
Related Manuals for Aqua-Scope AQSWIE01
Summary of Contents for Aqua-Scope AQSWIE01
- Page 1 The device has two wireless communication options. When connected to your local WIFI network it will send all sensor data and alarms to the Aqua-Scope Cloud and receive commands the same way. Your mobile app can access the data and presents current and historic values and events. When connected to a LoRaWAN network all data and alarms will be sent to your LoRaWAN network of choice.
-
Page 2: Mechanical Installation
(but not earlier!) and keep it pushed for 5 seconds. 4 short beeps will help you count. After 5 seconds you will see three short green LED pulses with a low-frequency sound. Copyright © 2022 Aqua-Scope Technologies, Sakala tn 7-2, 10141 Tallinn, Estonia, www.aqua- scope.com... -
Page 3: Wifi Setup
“Setup new Monitor” in the Configuration menu of your mobile app. If you don’t want to use the Aqua-Scope Mobile App you can also setup the device using any standard web browser. Please refer to the manual section “Web Browser Setup” for details. -
Page 4: Functions And Usage
‚https://io.aqua-scope.com/lora/lora.zip‘ allows downloading the scripts for change, inspection and further use on own server and integrate the data into your own application. Please note that the mentioned scripts can only be used for devices from Aqua-Scope. Device EUIs from other manufacturers will not be processed. - Page 5 (point 2 in the diagram). Aqua-Scope uses different techniques to identify leaks in four different scenarios (A1 - A4) characterized by their speed of water. The lines between the area are determined by calibration. After initial calibration...
-
Page 6: Led Signals
The system is permanently monitoring the water to detect pattern indicating a jamming toilet flap. In this case a Jamming-Alarm is issued. If the water pressure is too high the pipes may be damaged in the home. The Aqua-Scope will determine automatically the highest acceptable pressure and report an Overpressure-Alarm if this threshold is exceeded. - Page 7 PRV Impact An installed pressure reducing valve (PRV) is common in almost all contemporary European home water installations. Without PRV the Aqua-Scope Water Monitor is still applicable but some functions are limited. Working: Pressure Monitor, Temperature Monitor, Flood-Alarm, Frost-Alarm, Overpressure-Alarm,...
-
Page 8: Scope Of Delivery
Hardware Version Get. HW is a single byte indicating the version of the hardware. The bitmap indicates the different capabilities of the device. Copyright © 2022 Aqua-Scope Technologies, Sakala tn 7-2, 10141 Tallinn, Estonia, www.aqua- scope.com... - Page 9 This command reports the 32-bit value of the current firmware. It is sent unsolicited as the first command during boot-up and as replying command to downlink command 'Hardware Version Get'. Copyright © 2022 Aqua-Scope Technologies, Sakala tn 7-2, 10141 Tallinn, Estonia, www.aqua- scope.com...
- Page 10 This command requests the report of a sensor values. The ID indicates the sensor type Possible sensor types are: 0x01: Temperature: VAL is temperature in 1/10 Degree Celsius. Example: 0x06 0x11 0x20 0x20 => Temperature 0x00CD = 205 = 20.5 C. Copyright © 2022 Aqua-Scope Technologies, Sakala tn 7-2, 10141 Tallinn, Estonia, www.aqua- scope.com...
-
Page 11: Configuration Parameters
0x0080 (Bit 07) : BOF (Begin of Flow) reported 0x0100 (Bit 08) : EOF (End of Flow) reported 0x0200 (Bit 09) : Buffers reported 0x0400 (Bit 10) : n.n. Copyright © 2022 Aqua-Scope Technologies, Sakala tn 7-2, 10141 Tallinn, Estonia, www.aqua- scope.com... - Page 12 0x0004 (Bit 02) : Alarm Clearing 0x0008 (Bit 03) : Heartbeat Reporting 0x0010 (Bit 04) : Config Parameter Changes 0x0020 (Bit 05) : BOF 0x0040 (Bit 06) : EOF Copyright © 2022 Aqua-Scope Technologies, Sakala tn 7-2, 10141 Tallinn, Estonia, www.aqua- scope.com...
- Page 13 The threshold value is automatically set 24 hours after initial setup during calibration and may change from time to time as a result of ongoing calibration. The value is accepted in mBar. Copyright © 2022 Aqua-Scope Technologies, Sakala tn 7-2, 10141 Tallinn, Estonia, www.aqua- scope.com...
- Page 14 0x0040 (Bit 06) : Water Overpressure 0x0080 (Bit 07) : n.n. 0x0100 (Bit 08) : Pipe-Check Alarm 0x0200 (Bit 09) : n.n. 0x0400 (Bit 10) : n.n. Copyright © 2022 Aqua-Scope Technologies, Sakala tn 7-2, 10141 Tallinn, Estonia, www.aqua- scope.com...
-
Page 15: Technical Data
Pipe-Check: < 4ml/h Dimensions (Main Device): Diameter = 66mm, Height = 20 mm Weight (Main Device): 50 gr Water Proof: Main Device: IP 20, Pressure Sensors: IP 65 Copyright © 2022 Aqua-Scope Technologies, Sakala tn 7-2, 10141 Tallinn, Estonia, www.aqua- scope.com... -
Page 16: Support And Contact
The reproduction and distribution of the documentation and software supplied with this product and the use of its contents is subject to written authorization from Aqua-Scope. We reserve the right to make any alterations that arise as the result of technical development. - Page 17 Users and Installation Manual: Aqua-Scope Water Monitor (AQSWIE01) address: www.aqua-scope.com/ce Español Por la presente, Aqua-Scope Technology OÜ declara que el tipo de equipo radioeléctrico AQSWIE01 es conforme con la Directiva 2014/53/UE. El texto completo de la declaracin UE de conformidad está disponible en la direccin Internet siguiente: www.aqua-scope.com/ce...
-
Page 18: Disposal Guidelines
