Users and Installation Manual: Aqua-Scope Water Monitor LoRaWAN (AQSLWE01)
Aqua-Scope Water
Monitor LoRaWAN
SKU: AQSLWE01
Version: 1.0.4
Product Description

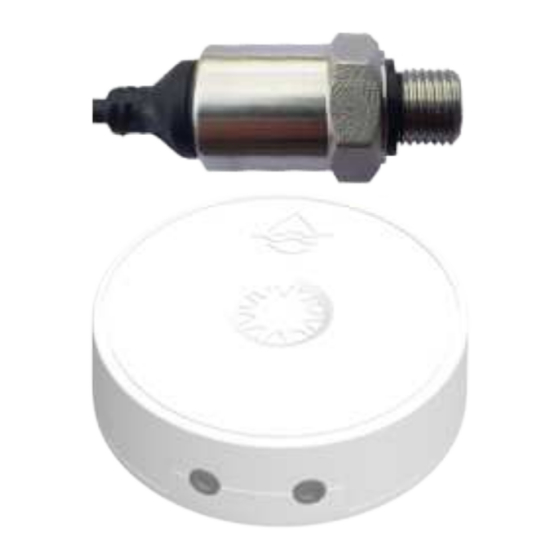

The Aqua-Scope Water Monitor records all consumption of water in the home and it detects
damaging water leakages. To achieve this, the device applies advanced signal processing analyzing
water pressure waves traveling inside the pipes of the house water system.
A single sensor can monitor the whole home or apartment and communicates measured values and
alarms to a LoRaWAN network.
The current version of the Water Monitor is approved for single-family homes and multi-family homes
with one single water meter per apartment. 'Clinical Trials' are ongoing for installations in multi-
apartment homes with more than one water meter per apartment.
Installation Requirements
The Aqua-Scope Water Monitor watches the water pressure and water pressure waves (water noise) of
the home water installation system. The Aqua-Scope water microphone must be connected to the pipe
system at one single point in the home. Ideal connection points are edge valves located below sinks or
beside toilets. Alternatives are 1/4 inch revision openings on pressure reduction valves, shut off vales or
other installation gear. It is recommended to find a place as low in the home as possible (ideally
basement or first floor) but it is important to find a place 'after' the pressure valve (The main shut off
valve is typically positioned before the PRV and hence the water microphone shall not be installed on
Copyright © 2021 Aqua-Scope Technologies, Sakala tn 7-2, 10141 Tallinn, Estonia, www.aqua- scope.com
Advertisement
Table of Contents
Related Manuals for Aqua-Scope LoRaWAN AQSLWE01
Summary of Contents for Aqua-Scope LoRaWAN AQSLWE01
- Page 1 Version: 1.0.4 Product Description The Aqua-Scope Water Monitor records all consumption of water in the home and it detects damaging water leakages. To achieve this, the device applies advanced signal processing analyzing water pressure waves traveling inside the pipes of the house water system.
-
Page 2: Mechanical Installation
Operating the device requires sufficient LoRaWAN coverage from your LoRaWAN provider of choice. Your LoRaWAN service must register the new device before the OTAA operation. LoRaWAN OTAA requires three device-specific keys for this process: Copyright © 2021 Aqua-Scope Technologies, Sakala tn 7-2, 10141 Tallinn, Estonia, www.aqua- scope.com... -
Page 3: Functions And Usage
‚https://io.aqua-scope.com/lora/lora.zip‘ allows downloading the scripts for change, inspection and further use on own server and integrate the data into your own application. Please note that the mentioned scripts can only be used for devices from Aqua-Scope. Device EUIs from other manufacturers will not be processed. - Page 4 Exceeding these thresholds will cause a Usage-Alarm. Additional protection is provided by the external wired water contact sensor, connected to one of the two sockets of the Aqua-Scope. This will recognize e.g. spillovers or other loss of water. A Flood-Alarm is sent out in this case.
-
Page 5: Led Signals
The system is permanently monitoring the water to detect pattern indicating a jamming toilet flap. In this case a Jamming-Alarm is issued. If the water pressure is too high the pipes may be damaged in the home. The Aqua-Scope will determine automatically the highest acceptable pressure and report an Overpressure-Alarm if this threshold is exceeded. -
Page 6: Scope Of Delivery
51 bytes. This mean that for all commands sent to defined number of bytes in the payload is required to avoid misinterpretation of command and/or command values in the receiver side. All uplink and downlink commands use FPort=1. Copyright © 2021 Aqua-Scope Technologies, Sakala tn 7-2, 10141 Tallinn, Estonia, www.aqua- scope.com... - Page 7 This command reports every single water flow event and the result of a Pipe-Check. STATE contains the status of the operation and defines the meaning of the two 16-bit values. Copyright © 2021 Aqua-Scope Technologies, Sakala tn 7-2, 10141 Tallinn, Estonia, www.aqua- scope.com...
- Page 8 The Initial calibration is required to find critical parameters for the detection of water flow. Prior to the completion of the initial calibration most of the functions of the Aqua-Scope monitor are disabled. The UI will trigger starting the calibration process sending a downstream command 0x09 with status = 2. The device will prepare for the calibration and, once ready, answers with status = 3.
- Page 9 0x0e: Sensor Missing: There is no external sensor connected to the Aqua-Scope Monitor. 0x0f: Pressure Missing: An external sensor is connected to the Aqua-Scope Monitor but the sensor head is not connected to a water pipe under pressure.
-
Page 10: Configuration Parameters
#21. Parameter 9 (0x9): Jamming Toilet (Default: 0x00c8 = dec 200) This parameter defines the max time in seconds for 10 consecutive small water consumption event Copyright © 2021 Aqua-Scope Technologies, Sakala tn 7-2, 10141 Tallinn, Estonia, www.aqua- scope.com... - Page 11 Bit 4 (0x10): Heavy Flow Alarm Bit 5 (0x20): Jamming Alarm Bit 6 (0x40): Overpressure Bit 7 (0x80): Drip Alarm Bit 8 (0x0100): Pipe-Check Alarm Bit 9 (0x0200): Freeze-Pipe-Alarm Copyright © 2021 Aqua-Scope Technologies, Sakala tn 7-2, 10141 Tallinn, Estonia, www.aqua- scope.com...
-
Page 12: Technical Data
Bit 15 (0x8000): Pressure Missing Alarm Parameter 21 (0x21): System Configuration (Default: 0x0000 = dec 0) This parameter defines the general behavior of the Aqua-Scope Monitor. The parameter recognizes different bits (default 0 for all bits): Bit 0 (0x01): Activate LoRaWAN Class C. Requires reboot to activate (default = Class A) -
Page 13: Support And Contact
The reproduction and distribution of the documentation and software supplied with this product and the use of its contents is subject to written authorization from Aqua-Scope. We reserve the right to make any alterations that arise as the result of technical development. - Page 14 Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.aqua-scope.com/ce Español Por la presente, Aqua-Scope Technology OÜ declara que el tipo de equipo radioeléctrico AQSLWE01 es conforme con la Directiva 2014/53/UE. El texto completo de la declaracin UE de conformidad está disponible en la direccin Internet siguiente: www.aqua-scope.com/ce...
-
Page 15: Disposal Guidelines
Português O(a) abaixo assinado(a) Aqua-Scope Technology OÜ declara que o presente tipo de equipamento de rádio AQSLWE01 está em conformidade com a Diretiva 2014/53/UE. O texto integral da declarao de conformidade está disponível no seguinte endereo de Internet: www.aqua-scope.com/ce...
