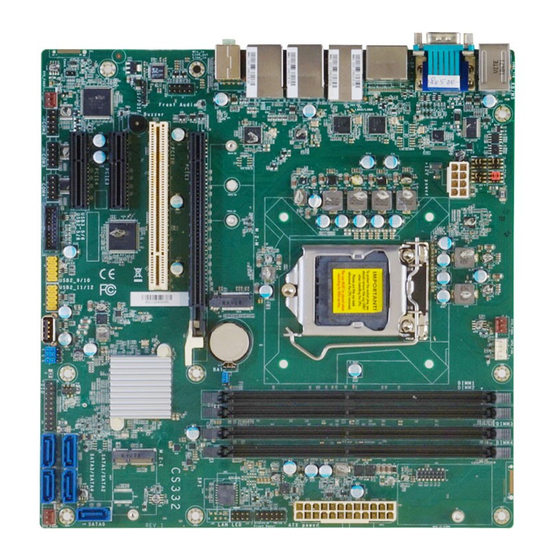

- Page 1 Quick Reference CS332-C246/Q370 www.dfi.com Board Layout Top View 10 11 M.2 M Key Battery M.2 E Key © January 30, 2024 DFI Inc.
- Page 2 SMBus ▼DP++ ▲COM1 SATA1 (R1) ▼VGA ▲PS/2 KB/MS SATA2 (R2) ▼USB 2.0 Clear CMOS HSIO Signal Trace Selection SATA3 (R1) Mini PCIe/mSATA select SATA4 (R1) DIMM1 System Fan2 (J22) DIMM2 SATA0 (R5) DIMM3 PCIE3 DIMM4 PCIE2 Quick Reference | CS332-C246/Q370...
- Page 3 LAN 3/4 LED LAN 1/2 LED Front Panel ATX Power +12V Power COM 1 Serial Mode (JP2) COM 1 Serial Mode (JP1) COM 1 RS232 Power Select COM 1 Serial Mode (JP3) System Fan1 (J7) CPU Fan Quick Reference | CS332-C246/Q370...
-
Page 4: Jumper Settings
3-5 On: Pin 9 = +5V Clear CMOS Normal (default) 1-2 On Clear CMOS 2-3 On HSIO Signal Trace Selection JP20 To CN10 (Default) 1-2 On To J20 2-3 On Mini PCIe/mSATA Select Mini PCIe (Default) 1-2 On mSATA 2-3 On Quick Reference | CS332-C246/Q370... -
Page 5: Pin Assignment
PIN Assignment X SYSTEM FAN1/2/3 X Chassis Intrusion 52 17 Assignment Assignment Signal TACH X S/PDIF X CPU Fan Assignment Assignment Power SPDIF Out Sense Speed Control SPDIF In X SATA1 X SATA0 Assignment Assignment Quick Reference | CS332-C246/Q370... - Page 6 X SATA3 X SATA2 Assignment Assignment X SMBus X SATA4 Assignment Assignment Assignment 3V3SB SMBus_Clock SMBus_DATA SMBus_Alert X Front Audio Assignment Assignment Mic-L Mic-R N.C. Line-Out-R Mic-JD (sense) Line-Out-L Line-JD (sense) Quick Reference | CS332-C246/Q370...
- Page 7 X Front Panel Assignment Pin Assignment LED Power HDD Power LED Power Signal Signal Signal Signal X LPC Assignment Assignment L_CLK L_LAD1 L_RST# L_LAD0 L_FRAME# 3.3V L_LAD3 L_LAD2 SERIRQ 5VSB Quick Reference | CS332-C246/Q370...
- Page 8 DIO_1 +5VDU DIO_0 DFI reserves the right to change the specifications at any time prior to the product's release. This QR may be based on the product’s revision. For more documentation and drivers, please visit the down- load page at www.dfi.com/downloadcenter, or via the QR codes to the right.
