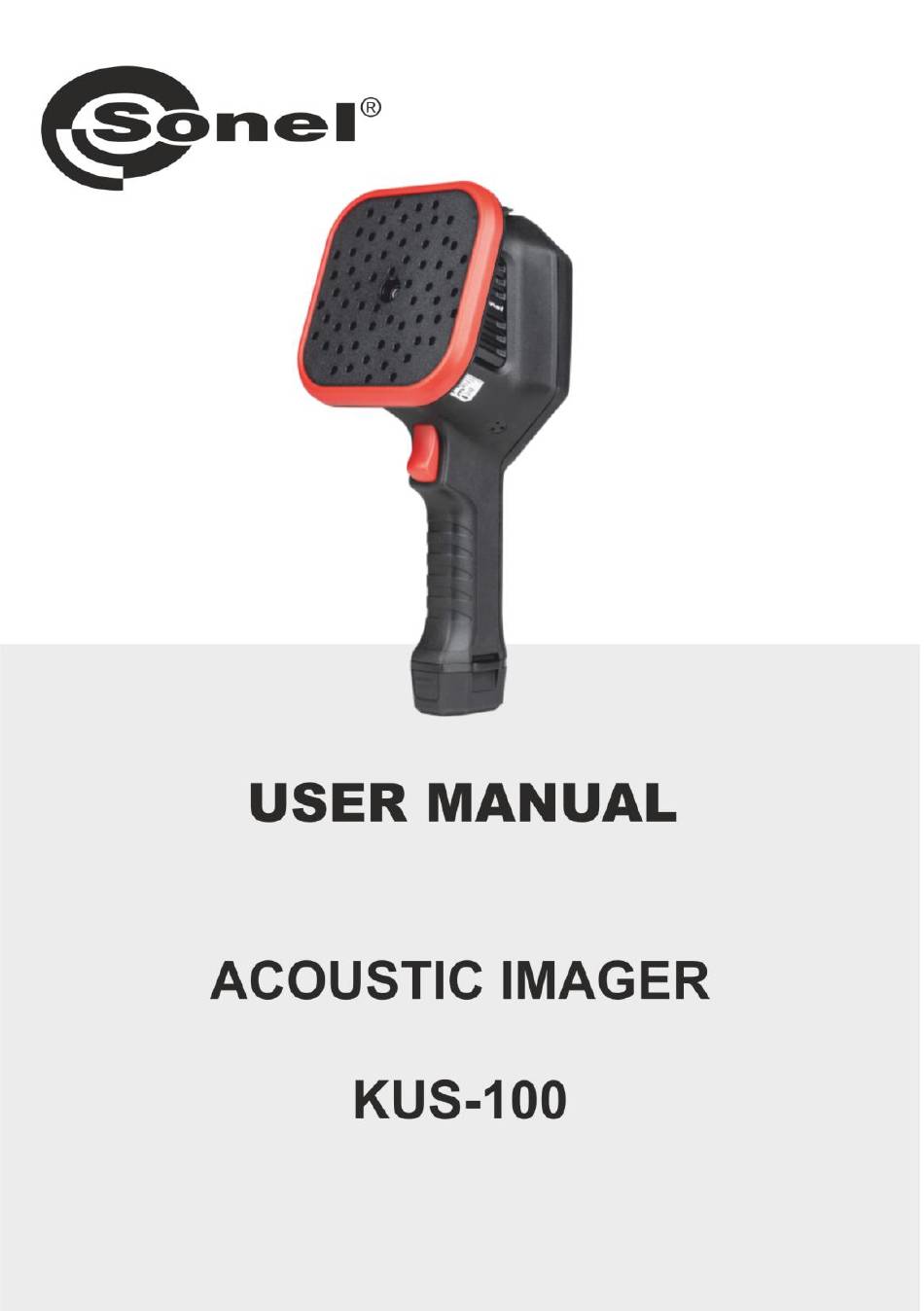

- Page 3 USER MANUAL ACOUSTIC IMAGER KUS-100 SONEL S.A. Wokulskiego 11 58-100 Świdnica Poland Version 1.01 31.01.2024...
- Page 4 According to the Waste Electrical and Electronic Equipment Regulations 2013: Products marked with this symbol cannot be disposed of as unsorted municipal waste in the United Kingdom. For proper recycling, return this product to your local supplier KUS-100 – USER MANUAL...
- Page 5 5250-5350 MHz et 5650-5850 MHz et que ces radars pourraient causer du brouillage et/ou des dommages aux dispositifs LAN-EL. A 급 기기: 이 기기는 업무용(A 급) 전자파적합기기로써 판매자 또는 사용자는 이 점을 주의하시기바라며, 가정 외의 지역에서 사용하는 것을 목적으로 합니다. KUS-100 – USER MANUAL...
-
Page 6: Table Of Contents
5.7 Mark and display peak intensity ................23 5.8 Regional detection frame ..................23 5.9 Show multiple sound sources ................. 23 6 Display settings ..................... 24 6.1 Set screen brightness..................... 24 6.2 Adjust digital zoom ....................24 6.3 Display OSD info ....................24 KUS-100 – USER MANUAL... - Page 7 9.3 Set date and time ....................32 9.4 Upgrade device ...................... 32 9.5 Restore device ....................... 33 10 Cleaning and maintenance ................34 11 Storing ......................34 12 Dismantling and disposal ................34 13 Specifications ....................35 14 Manufacturer ....................36 KUS-100 – USER MANUAL...
-
Page 8: Safety
A few device components (e.g., electrolytic capacitor) require regular replacement. The average lifespan varies, so periodic checking is recommended. Contact your dealer for details. Wipe the device gently with a clean cloth and a small quantity of ethanol, if necessary. KUS-100 – USER MANUAL... -
Page 9: Using Environment

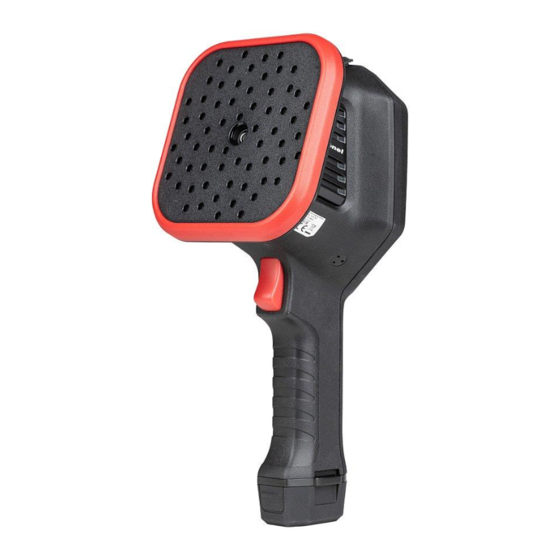

2 Overview Device description The KUS-100 acoustic imaging camera is a professional product for sound source localization. With 64 Low-noise MEMS microphones and adjustable bandwidth range from 2 kHz to 60 kHz, the device pro- vides an easy and effective way to locate the pressurized air leaks in industrial environments or detecting partial discharge in high-voltage systems. -
Page 10: Appearance
Appearance KUS-100 – USER MANUAL... - Page 11 Fixes the lower part of the hand strap to the device. Micro HDMI Interface Displays the image and menu interface via HDMI output. Type-C Interface Charges the device or exports files with supplied cable. MicroSD Card Slot For holding the MicroSD card. KUS-100 – USER MANUAL...
-
Page 12: Preparation
3. Thread the lower part of the hand strap through the hole at the base of the device. 4. Secure the hand strap with the hook-and-loop fastener. Adjust the tightness according to your hands. Secure lower part of hand strap KUS-100 – USER MANUAL... -
Page 13: Operation Method
Operation method The device supports both touch-screen control and button control. Touch-screen control Button control Tap on the screen to set parameters and configura- Press the navigation buttons to set parame- tions. ters and configurations. KUS-100 – USER MANUAL... -
Page 14: Charging The Device
The red indicating light is on if the battery is charging properly, and the green indicating light is on if the battery is fully charged. KUS-100 – USER MANUAL... -
Page 15: Power On/Off
Device Sleep, Scheduled Capture and Video Recording When the device is recording a video clip or on scheduled capturing, auto sleep will not be triggered. However, press will stop the video recording or scheduled capture and force the device into sleep mode. KUS-100 – USER MANUAL... -
Page 16: Menu Description
8, 12 PRPD and its Control Icon for better PD activity diagnosis. Tap on PRPD diagram (8) to enlarge the display. Sound Source Distance Shows the set distance of sound source. See sec. 5.5 for setting instructions. KUS-100 – USER MANUAL... -
Page 17: Menus
Tap to turn on/off device Bluetooth. See sec. 8.3 for setting instructions. Tap to turn on/off device hotspot. See sec. 8.2 for setting instructions. Tap to switch menu themes between dark and light. Swipe to adjust screen brightness. KUS-100 – USER MANUAL... -
Page 18: Acoustic Wave Detection
Partial discharge types and levels When detecting a partial discharge sound source, device automatically identify the type and strength level, and display the result on screen. 1 – Partial discharge type. 2 – PRPD diagram. 3 – Partial discharge level KUS-100 – USER MANUAL... - Page 19 Moderate deterioration. Locate and clean the Item during routine maintenance, or carry Medium out related electrical test of the item. Or use online monitor to monitor the discharge tendency. Serious deterioration. Item cannot be returned to service without shut down or High engineering advise. KUS-100 – USER MANUAL...
-
Page 20: Gas Leakage Estimation
3. Select Currency. 4. Return to live view interface. Aim the device to a gas leak source, and the real-time estimation displays on screen. 1 – Leak level. 2 – Leak rate. 3 – Cost estimation KUS-100 – USER MANUAL... -
Page 21: Set Frequency Range
1 – Supported frequency band (configurable) 2 – Selected frequency range for visualization 5.2.1 Switch among pre-defined target frequency ranges Steps 1. In the live view interface, tap or press to show the menu. 2. Select and select a range option. KUS-100 – USER MANUAL... -
Page 22: Set Target Frequency Range Manually
Adjust the upper limit only. Press three times or tap on the lower yellow line. Adjust the lower limit only. 2. Press/hold to adjust values. 3. Press to save and exit. KUS-100 – USER MANUAL... -
Page 23: Set Acoustic Palettes
2. Go to Settings ►Acoustic Settings ►Level, and choose the preferable opacity. 3. Press to save and exit. The opacity ranges from 0% to 100%. The lower the value is, the more transparent the acoustic images are. 75% opacity 25% opacity KUS-100 – USER MANUAL... -
Page 24: Set Intensity Range For Palettes
1. In the live view interface, tap or press to show the menu. 2. Select 3. Press or tapping on screen to select a level. Bigger number means higher sensitivity. 4. Press to save and exit. KUS-100 – USER MANUAL... -
Page 25: Mark And Display Peak Intensity
Show multiple sound sources Usually, device only displays acoustic palettes at the strongest sound source. If you want to see the other sound sources in the scene, turn on Multiple Sources from Settings ►Acoustic Settings ► Multiple Sources. KUS-100 – USER MANUAL... -
Page 26: Display Settings
Steps 1. In the live view interface, tap or press to show the menu. 2. Go to Settings ► Display Settings. 3. Tap to enable Grayscale Image. 4. Press to save and exit. KUS-100 – USER MANUAL... -
Page 27: Picture And Video
What to do next Go to albums to view and manage files and album folders. Edit saved images,. You can connect your device to PC to export local files for further use. KUS-100 – USER MANUAL... -
Page 28: Record Video
3. For file operations, such as, moving or deleting a file, see sec. 7.3.2 for instructions. 4. To modify an image, for example, editing the text or voice notes saved with the images, see sec. 7.3.3 for instructions. KUS-100 – USER MANUAL... -
Page 29: Manage Albums
A selected file displays with a in its upper right corner. 3) Tap Delete or Move. If you tap Delete, files are deleted after confirmation. If you tap Move, select a target album to start moving. KUS-100 – USER MANUAL... -
Page 30: Edit Files
2. Connect the device to your PC with cable and open the detected disk. 3. Select and copy the videos or snapshots to PC to view the files. 4. Disconnect the device from your PC. You can play the recorded videos using the default players. KUS-100 – USER MANUAL... -
Page 31: Connect
DO NOT tap space, or the password may be incorrect. Leaving the Wi-Fi setting interface does not interrupt the connection. Result A Wi-Fi icon shows in the live view interface when the connection is completed. KUS-100 – USER MANUAL... -
Page 32: Hotspot Mode
When setting password, do not tap space, or the password may be incorrect. The password should be at least 8 digits, consisting of numbers and characters. Scanning function of some APP may fail to connect your phone to the device hotspot. Try other APPs. KUS-100 – USER MANUAL... -
Page 33: Pair Bluetooth Devices
Make sure the external Bluetooth device is in discoverable mode. 3. Tap to select an external Bluetooth device to start automatic pairing and connecting. The Bluetooth function is for audio play only. If you want to exporting local files, see sec. 7.4 for instructions. KUS-100 – USER MANUAL... -
Page 34: Maintenance
4. Reboot the device and then it will upgrade automatically. The upgrading process will be displayed in the main interface. After upgrading, the device reboots automatically. You can view the current version in Settings ► Device Information. KUS-100 – USER MANUAL... -
Page 35: Restore Device
2. Go to Settings ►Device Settings ► Device Initialization. 3. Select Restore Device. A prompt appears. OK: Tap OK to initialize the device. Cancel: Tap Cancel to exit and return to the previous menu. KUS-100 – USER MANUAL... -
Page 36: Cleaning And Maintenance
Before delivering the equipment to the collection centre do not attempt to dismantle any of its parts. NOTE! Follow local regulations related to disposing of packaging, used-up batteries and re- chargeable batteries. KUS-100 – USER MANUAL... -
Page 37: Specifications
1.2 m (3.94 ft) Safety IEC 61010-1 EN 55032, EN 50130-4, EN IEC 61000-3-2, EN 61000-3-3 Weight approx. 940 g (2.07 lb) Dimensions 292 x 127 x 111 mm (11.5” x 5.0” x 4.4”) Tripod mounting UNC ¼”-20 KUS-100 – USER MANUAL... -
Page 38: Manufacturer
The manufacturer and provider of warranty and post-warranty services for this instrument is: SONEL S.A. Wokulskiego 11 58-100 Świdnica Poland tel. +48 74 884 10 53 (Customer Service) e-mail: customerservice@sonel.com web page: www.sonel.com NOTE! Only the manufacturer is authorized to perform service repairs. KUS-100 – USER MANUAL...
