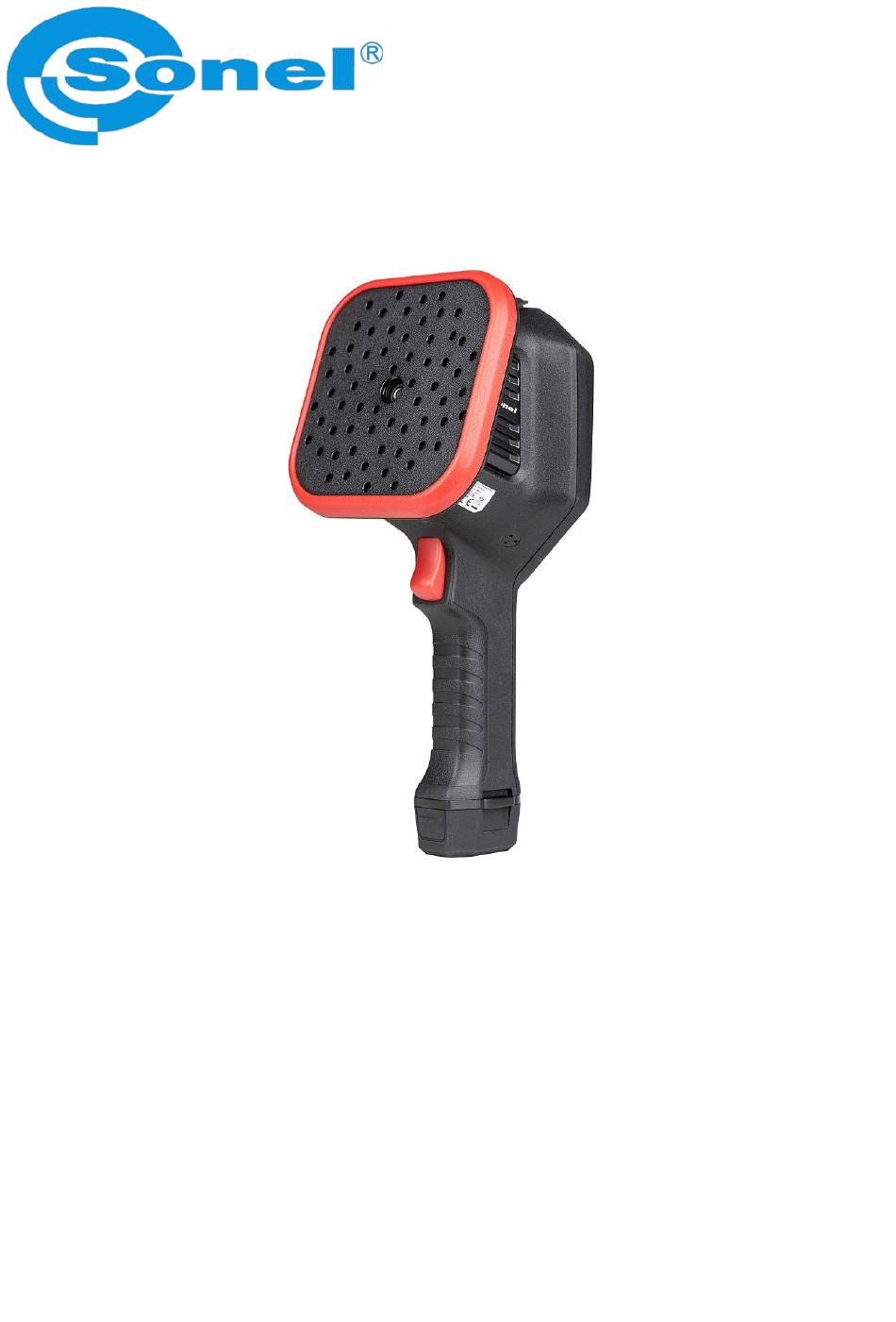

- Page 1 USER MANUAL ACOUSTIC IMAGER KUS-100...
- Page 3 USER MANUAL ACOUSTIC IMAGER KUS-100 SONEL S.A. Wokulskiego 11 58-100 Świdnica Poland Version 1.00 26.09.2023...
- Page 4 According to the Waste Electrical and Electronic Equipment Regulations 2013: Products marked with this symbol cannot be disposed of as unsorted municipal waste in the United Kingdom. For proper recycling, return this product to your local KUS-100 – USER MANUAL...
- Page 5 5250-5350 MHz et 5650-5850 MHz et que ces radars pourraient causer du brouillage et/ou des dommages aux dispositifs LAN-EL. A급 기기: 이 기기는 업무용(A급) 전자파적합기기로써 판매자 또는 사용자는 이 점을 주의하시기바라며, 가정 외의 지역에서 사용하는 것을 목적으로 합니다. KUS-100 – USER MANUAL...
-
Page 6: Table Of Contents
6.1 Initialize memory card .................... 20 6.2 Capture picture ....................... 20 6.3 Record video ......................21 6.4 View local files ......................21 6.4.1 Manage albums ......................22 6.4.2 Manage files........................23 6.5 Export files ......................24 KUS-100 – USER MANUAL... - Page 7 8.2 Set Date and Time ....................26 8.3 Upgrade Device ..................... 26 8.4 Restore Device ....................... 26 9 Cleaning and maintenance ................27 10 Storing ......................27 11 Dismantling and disposal ................27 12 Specifications ....................28 13 Manufacturer ....................29 KUS-100 – USER MANUAL...
-
Page 8: Safety
A few device components (e.g., electrolytic capacitor) require regular replacement. The average lifespan varies, so periodic checking is recommended. Contact your dealer for details. Wipe the device gently with a clean cloth and a small quantity of ethanol, if necessary. KUS-100 – USER MANUAL... -
Page 9: Using Environment
Overview Device description The KUS-100 acoustic imaging camera is a professional product for sound source localization. With 64 Low-noise MEMS microphones and adjustable bandwidth range from 2 kHz to 60 kHz, the device provides an easy and effective way to locate the pressurized air leaks in industrial environments or detecting partial discharge in high-voltage systems. -
Page 10: Appearance
Appearance KUS-100 – USER MANUAL... - Page 11 Fixes the lower part of the hand strap to the device. Micro HDMI Interface Displays the image and menu interface via HDMI output. Type-C Interface Charges the device or exports files with supplied cable. MicroSD Card Slot For holding the MicroSD card. KUS-100 – USER MANUAL...
-
Page 12: Preparation
3. Thread the lower part of the hand strap through the hole at the base of the device. 4. Secure the hand strap with the hook-and-loop fastener. Adjust the tightness according to your hands. Secure lower part of hand strap KUS-100 – USER MANUAL... -
Page 13: Operation Method
Operation method The device supports both touch-screen control and button control. Touch-screen control Button control Tap on the screen to set parameters and Press the navigation buttons to set parameters configurations. and configurations. KUS-100 – USER MANUAL... -
Page 14: Charging The Device
3. Insert the battery into the charging base. You can see the charging status via the pilot lamp on the charging base. The red indicating light is on if the battery is charging properly, and the green indicating light is on if the battery is fully charged. KUS-100 – USER MANUAL... -
Page 15: Power On/Off
2. Go to Settings ► Device Settings ► Auto Off. 3. Tap Auto Off or press to enable auto power-off. 5. Set the automatic shutdown time for device as required. 4. Press to save and return to previous menu. KUS-100 – USER MANUAL... -
Page 16: Menu Description
Menu description In the live view interface, tap or press to show the menu bar, and swipe down to call the drop-down menu. Palettes Opacity File Settings Main menu Wi-Fi Hotspot Dark/Bright mode Drop-down menu KUS-100 – USER MANUAL... -
Page 17: Display Settings
2. Select , and choose the preferable opacity. 3. Press to save and exit. The opacity ranges from 0% to 100%. The lower the value is, the more transparent the acoustic images are. 100% Opacity 50% Opacity KUS-100 – USER MANUAL... -
Page 18: Adjust Digital Zoom
1. In the live view interface, tap or press to show the menu. 2. Go to Settings ► Device Settings ► Display Settings. 3. Tap or press to select the on-screen information. 4. Press to save and exit. KUS-100 – USER MANUAL... -
Page 19: Acoustic Wave Detection
4. Press to save and exit. Set frequency range The device supports frequency range adjustment. You can set preferable frequency range to filter out background noises, so as to obtain the signals from the target frequency range. KUS-100 – USER MANUAL... -
Page 20: Set Overall Frequency Range
2 consecutive times or tap the top edge of the frequency range frame in the live view interface. 2. Press/hold , or drag the top edge of the frequency range frame up and down to adjust the maximum frequency. 3. Press to save and exit. KUS-100 – USER MANUAL... -
Page 21: Set Min. Frequency
3. Set the point rules, and tap the icons or press 4. Press to save and exit. Icon Description Peak Point: locate the peak sound intensity in the scene Center Point: display the sound intensity of the center in the scene KUS-100 – USER MANUAL... -
Page 22: Picture And Video
4. Select Filename Header to set filename header. The snapshot name consists of the header and the capture date and time. 4. Press to save and exit. 5. In the live view interface, pull the trigger to capture snapshot. 6. Refer to sec. 6.5 to export the snapshots. KUS-100 – USER MANUAL... -
Page 23: Record Video
See sec. 8.2 for instructions. For file exporting, see sec. 6.5 for instructions. What to do next For file management, see sec. 6.4.2 for instructions; for album management, see Manage Albums for instructions. KUS-100 – USER MANUAL... -
Page 24: Manage Albums
Delete an album a. Press to enter Albums. b. Select the album you want to delete. c. Tap , and select Delete. A prompt box appears on the interface. d. Tap OK to delete the album. KUS-100 – USER MANUAL... -
Page 25: Manage Files
The text and voice notes can only be added to snapshots. You can tap to select all files, and tap to cancel the selection. KUS-100 – USER MANUAL... -
Page 26: Export Files
2. Connect the device to your PC with cable and open the detected disk. 3. Select and copy the videos or snapshots to PC to view the files. 4. Disconnect the device from your PC. You can play the recorded videos using the default players. KUS-100 – USER MANUAL... -
Page 27: Connect
4. Tap Set Hot Spot to set the hotspot password. When setting password, DO NOT tap enter or space, or the password may be incorrect. The password should include at least 8 digits, consisting of numbers and characters. 5. Tap to save the password. KUS-100 – USER MANUAL... -
Page 28: Maintenance
2. Go to Settings ►Device Settings ► Device Initialization. 3. Select Restore. A prompt appears. OK: Tap OK to initialize the device. Cancel: Tap Cancel to exit and return to the previous menu. KUS-100 – USER MANUAL... -
Page 29: Cleaning And Maintenance
Before delivering the equipment to the collection centre do not attempt to dismantle any of its parts. NOTE! Follow local regulations related to disposing of packaging, used-up batteries and rechargeable batteries. KUS-100 – USER MANUAL... -
Page 30: Specifications
-20°C to 60°C (-4°F to 140°F) ＜95% non-condensing Relative humidity Weight Approx. 940 g (2.07 lb) Dimensions 292.2 × 127 × 110.7 mm (11.50” × 5.00” × 4.36”) Tripod mounting UNC ¼”-20 Power supply 5V DC/2A (Charging via USB) KUS-100 – USER MANUAL... -
Page 31: Manufacturer
The manufacturer and provider of warranty and post-warranty services for this instrument is: SONEL S.A. Wokulskiego 11 58-100 Świdnica Poland tel. +48 74 884 10 53 (Customer Service) e-mail: customerservice@sonel.com web page: www.sonel.com NOTE! Only the manufacturer is authorized to perform service repairs. KUS-100 – USER MANUAL... - Page 32 NOTES KUS-100 – USER MANUAL...
- Page 33 NOTES KUS-100 – USER MANUAL...
- Page 34 NOTES KUS-100 – USER MANUAL...
- Page 36 SONEL S.A. Wokulskiego 11 58-100 Świdnica Poland Customer Service tel. +48 74 884 10 53 e-mail: customerservice@sonel.com www.sonel.com...
