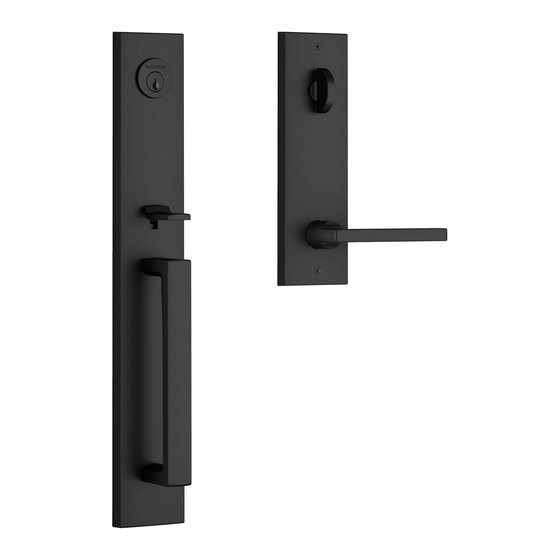

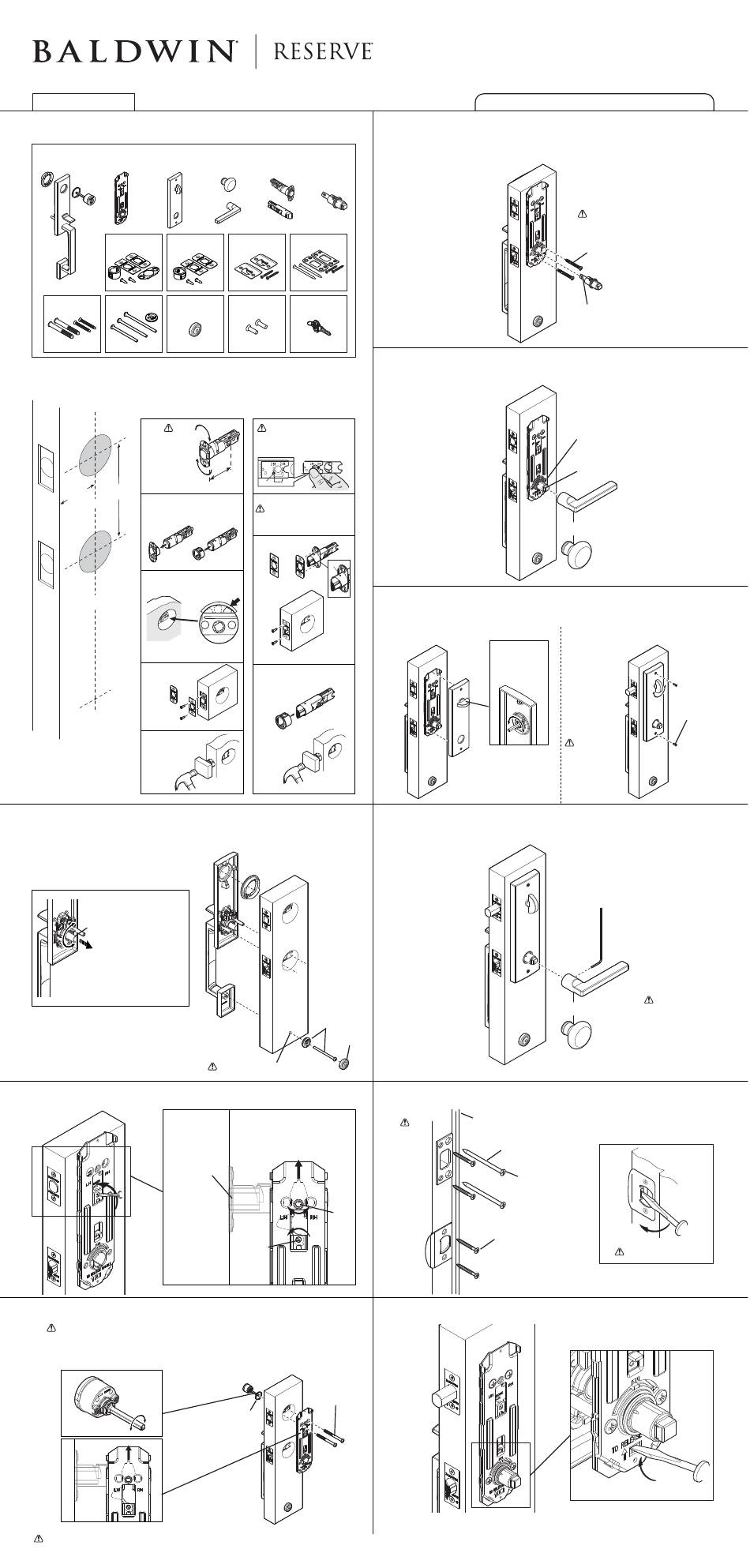

Baldwin RESERVE EE.ELKXARC.R.SBE.481 Installation Instructions

68595-001 Rev 04
Parts in the Box
Exterior handleset Interior Interior
assembly mounting plate escutcheon
46970 46977
66209 47031 47063
1. Adjust and install latches
Measure your door and prepare using template if needed.
Deadbolt Latch
If backset of door
measures 2-3/4"
(70 mm), adjust
latch by rotating
face as shown.
5-1/2"
MEASURE
(140 mm)
Latch Face Assembly
For Drive-in Latch
Remove backplate.
Latch Installation
Ensure the latch is inserted with the
word "UP" on top.
UP
Note for 1-1/2" (38 mm) diameter
hole, test if latch extends and retracts.
Chisel out area if required.
For Square /
Round Corner
Install faceplate with
For Drive-In Latch
Drive in with
hammer.
2. Install exterior assembly
Install exterior assembly and secure by lightly tightening throughbolt.
Please note: Product illustrations may differ
from your product. Installation is the same.
Make sure the curve
of half round spindle
corresponds to the
(2)
spindle
opening in the latch;
if it does not, reverse
(1)
the handing as follows:
(1) Pull spindle away
from mechanism,
(2) rotate it 1/2 turn
180° and release.
3. Adjust interior cartridge handing toggle (if needed)
4. Install interior cartridge and cylinder with top screws
BEFORE installing the cylinder, ensure
that the cylinder torque blade is rotated to
align with the D-shaped hole AND that the
upper cam is pointing up on the cartridge.
WARNING: This Manufacturer advises that no lock can provide complete security by itself. This lock may be defeated by forcible or technical means, or evaded by entry elsewhere on the property. No lock can substitute for caution, awareness of your
environment, and common sense. Builder's hardware is available in multiple performance grades to suit the application. In order to enhance security and reduce risk, you should consult a qualified locksmith or other security professional.
Knob or Latches
Lever Sleeve
46973 46967
66199 Keys
Handleset Latch
If backset of door measures 2-3/4"
(70 mm), adjust latch shown by
grasping the spring pin and moving
it to the 2-3/4" slot.
Pin
2-3/4" (70 mm)
Latch Assembly and Installation
Make sure the slant of latch bolt
faces in the direction that the
door closes.
For Square /
Round Corner
Snap on collar.
OR
Snap together front
and backplate.
UP
46970
Install faceplate with
For Drive-In Latch
Snap on collar.
OR
46977
screws.
Drive in with
hammer.
47031
See drilling template for hole location.
With a flat-blade screwdriver, turn
the (1) handing toggle so that it
points toward the latch bolt. Then
turn the (2) upper cam so that it
points up.
latch bolt
(1)
handing
toggle
Install the cylinder and ensure that the torque
blade goes through the D-shaped hole in the latch.
Next, install the cartridge and secure with two
larger screws. Tighten screws evenly.
DO NOT fully tighten screws at this time.
Use two larger
screws from screw
pack
Only use if included in
the box. Not used with
SmartKey products.
5. Secure bottom screws on interior cartridge and install
knob or lever sleeve
Lever
6. Check for binding
Temporarily place the knob/
lever on the sleeve and turn it to
check for binding.
If the knob/lever does not turn
smoothly, slightly loosen the
mounting screws and repeat
the process until the knob/lever
turns smoothly. Then remove the
knob/lever.
tabs
7. Install interior trim
Place the interior trim over the interior cartridge,
ensuring that the spindle is aligned with the
D-shaped hole.
screws.
8. Install knob or lever
Place knob/lever onto the
sleeve and turn the set
screw clockwise to secure.
47063
9. Install strikes
1/8" (3 mm)
pilot holes may
be required.
Depth equal to
screw length.
(2)
upper
cam
Troubleshooting
66209
Emergency Egress Handleset Installation Instructions
Fits 1-3/4" (44 mm) up to 2" (51 mm) doors
www.baldwinhardware.com • Customer Service 1.800.437.7448
Fully tighten the bottom screws then
fully tighten top screws. Next, install
the knob or lever sleeve.
DO NOT overtighten screws.
Use two smaller screws
from screw pack
Rounded edge of
spindle faces latch.
mounting screws
sleeve
OR
Turn the turnpiece to ensure that the deadbolt
extends smoothly then secure with screws. If it
does not extend smoothly, remove the trim and
slightly loosen the
Rotate the turnpiece to
mounting screws
align spindle with the
D-shaped hole.
then test again
until it operates
smoothly.
Tighten screws
evenly.
DO NOT
overtighten
screws.
OR
The set screws are
pre-installed. They SHOULD
NOT be removed prior
to knob/lever installation.
door jamb
46967 (4x)
Longer screws should
be installed closest to
the door jamb.
46973 (2x)
To remove the knob/lever sleeve, use a flat-
blade screwdriver to press up on the release.
(Thick door service kits for doors between
2" (51 mm) up to 2-1/2" (64 mm)
available through customer service)
66209
66199
(2x)
Adjust tang as needed.
