CYLINDER COLLAR
SPINDLE
SPRING
Insert spring in spindle hole to
extend the length of the spindle
if required.

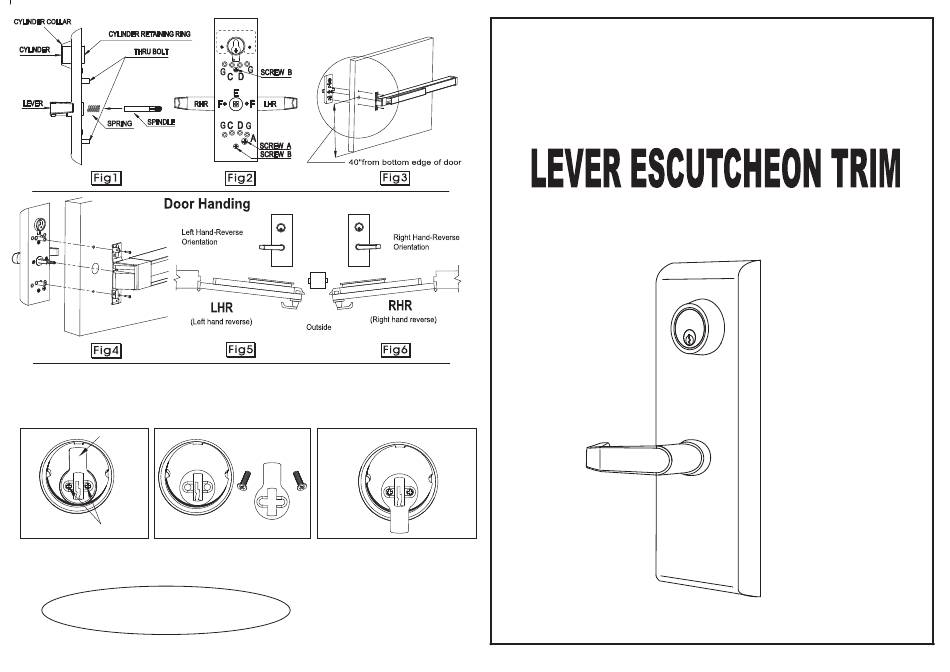

Instructions for converting Entry to Night
latch function
Entry function can be converted to Night latch function by inverting the cam on the mortise cylinder.
The steps below show how to invert the cam:
Cam
Cam Screws
Step # 1: Step # 2:
Remove the two cam screws and
Locate cam and cam screws on the
the cam.
back of the mortise cylinder.
Do not insert the key while converting function.
SERIES SHOWN
G
G
G G
Step # 3:
Rotate cam 180 degrees and re-install
in the down position.
Re-install and tighten the cam screws
being careful not to over tighten them as
overtightened screws will make mortise
cylinder difficult to operate.
Step # 4:
Follow directions for installing cylinder
into trim.
009
Series
2010.03A
