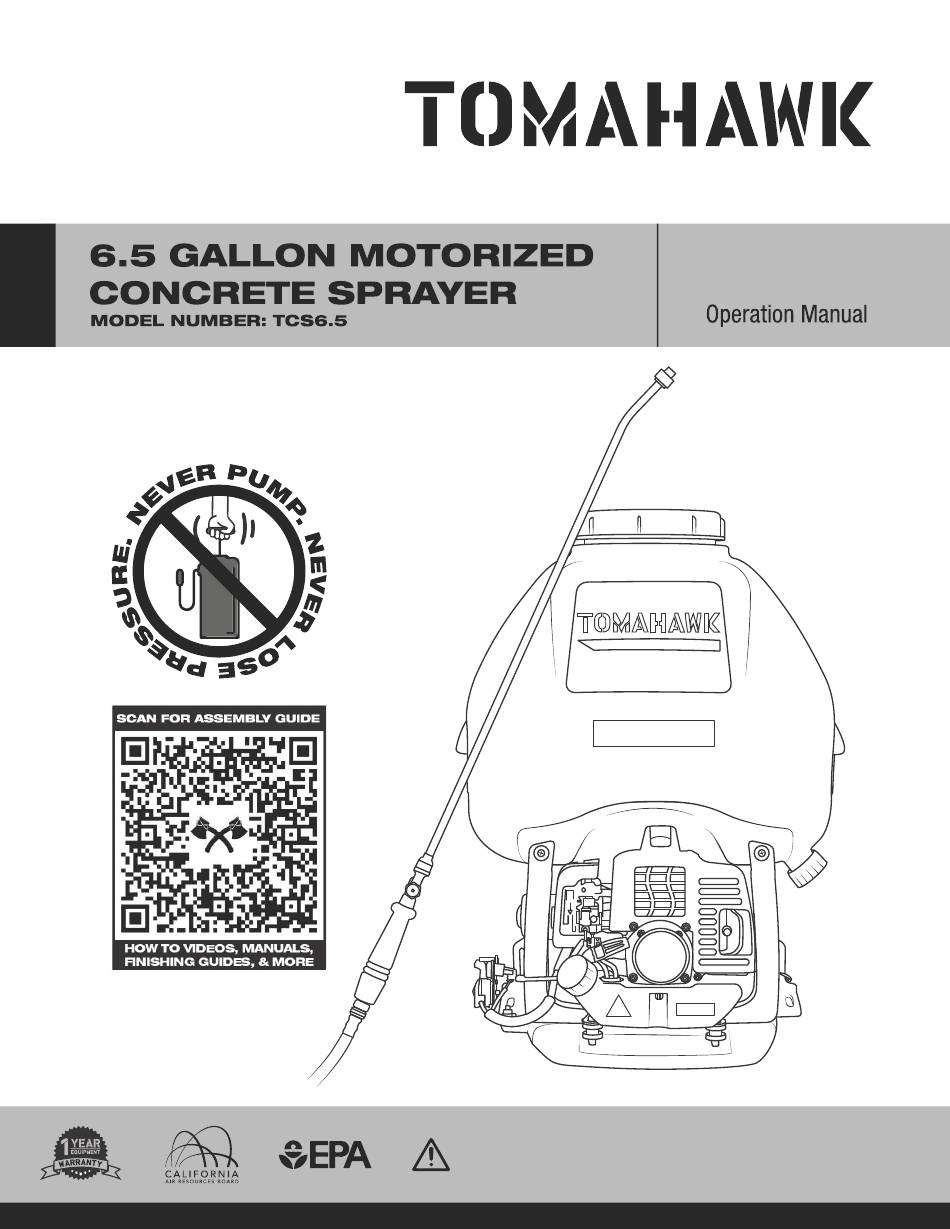

- Page 1 To reduce the risk of injury, the user must read and understand the Operator’s Manual before using this product. Save these instructions for future reference.
-
Page 2: Table Of Contents
1.2 Service Safety 1.3 Safety While Using Combustion Engines 1.4 Service Safety 1.5 Chemical Handling 2. General Information 2.1 Design and Features 2.2 TOMAHAWK® Engine 2.3 Adjustable Pressure 2.4 Spraying Accessories 2.5 Specifications 3. ASSEMBLY GUIDE 4. OPERATION 4.1 Start Up Guide 4.2 Sprayer Operation... - Page 3 Register Your Equipment Thank you for purchasing TOMAHAWK® equipment! Your product is covered by the TOMAHAWK® Warranty Policy, but in order to activate your warranty, we need you to register your product. In addition to activating your equipment warranty, product registration will grant you access to important product updates, streamlined customer service, and more.
-
Page 4: Safety Information
Tomahawk Power. The information contained in this manual is based on equipment’s production at the time of publication. Tomahawk Power reserves the right to change any portion of this information without notice. -
Page 5: Operating Safety
1.2.2 NEVER 1.2.3 NEVER use accessories or attachments that are not recommended by Tomahawk Power. Damage to equipment and injury to the user may result. 1.2.4 NEVER leave machine running unattended. -
Page 6: Service Safety
1.4.4 DO NOT use gasoline or other types of fuels or flammable solvents to clean parts, 1.4.5 ALWAYS 1.4.6 ALWAYS replace worn or damaged components with spare parts designed and recommended by Tomahawk Power. 1.4.7 ALWAYS disconnect spark plug on machines equipped with gasoline engines, before servicing, to avoid accidental start-up. -
Page 7: Chemical Handling
2. GENERAL INFORMATION 2.1 Design and Features The TOMAHAWK® Motorized Concrete Sprayer is the ideal portable tool for applying most water based concrete curing compounds, retardents, and sealants - achieve superior pump again and maintain constant pressure up to 435 PSI for even spraying with a powerful 1.8HP engine. -
Page 8: Specifications
2.5 Specifications Model TCS6.5 Engine Type 2 Stroke Engine Power 1.8 HP Tank Capacity 6.5 Gallon (25 Liters) Working Pressure 50 - 435 PSI Flow Rate 2.5 GPM (9.5 LPM) Fuel Type 50:1 Gasoline / Oil Mixture Pump Type Brass Diaphragm... -
Page 9: Operation
3. ASSEMBLY GUIDE CONTINUED Attach the brass wand (B) Fasten the hose (D) to the backpack to the handle press (C). sprayer’s pump. To attach the straps, feed the end through Fasten the hose (D) to the backpack sprayer’s pump. the metal bar and down through the buckle. -
Page 10: Sprayer Operation
4.1 Start Up Guide Continued Prime the fuel injection pump Slowly pour your liquid into the Place the choke down into the 3-5 times. chemical tank. closed position . Pull the recoil starter 1-3 times Place the choke up into the Maintain the engine running on idle until the engine is starts. -
Page 11: Pump Quick Fix
Important Tip: Remember to rinse the tank with 5 gallons of water to remove any chemicals that may crystallize in the pump, hose, and attachments. 5. PUMP QUICK FIX Start the engine and keep it in idle. Using a 10mm socket wrench, loosen the 4 bolts on the right &... -
Page 12: Replacement Parts
7. WARRANTY Your new TOMAHAWK® equipment is warranted to the original purchaser for a period of one-year (12 months) from the original date of purchase. The TOMAHAWK® warranty is against defects in design, materials and workmanship. -
Page 13: Maintenance
8. MAINTENANCE Maintain the equipment in accordance with the following recommended procedures. Refer to the engine manufacturer’s instruction manual for additional information about engine maintenance. The following chart is based on a normal operation schedule. AFTER DAILY AFTER AFTER AFTER FIRST 200 BEFORE/ FIRST 20... -
Page 14: Troubleshooting
9. TROUBLESHOOTING PROBLEM CAUSE SOLUTION Push fuel-injec ng pump un l fuels Failed to push fuel-injec ng pump runs through lines Water mixed with fuel Replace the fuel Fails to Start Deteriora on of spark plug or carbon Replace the spark plug build up Bad contact between spark plug and Check the spark plug... -
Page 15: Transportation & Storage
9. TROUBLESHOOTING CONTINUED PROBLEM CAUSE SOLUTION Inlet and/or outlet valves are blocked Replace or Clean Washer is damaged Replace Liquid does not spray out Bearing is damaged Replace Piston is damaged Replace Not enough pressure Regulate Not enough elas c force regula ng Replace Low or no pressure spring... - Page 25 Tomahawk Power, LLC recommends that you retain all receipts covering maintenance on your small engine/ equipment, but Tomahawk Power, LLC cannot deny warranty solely for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance.
- Page 26 Owner's Manual is warranted for the warranty period stated above. If the part fails during the period of warranty coverage, the part will be repaired or replaced by Tomahawk Power, LLC according to Subsection (4) below. Any such part repaired or replaced under warranty will be warranted for the remainder of the period.
- Page 27 Such use will not reduce the warranty obligations of Tomahawk Power, LLC be grounds for disallowing a warranty claims. Tomahawk Power, LLC will not be liable to part. (11) The manufacturer issuing the warranty shall provide any documents that describe that manufacturer's warranty procedures or policies within five working days of request by the Air Resources Board.
- Page 30 SEAL THE DEAL WITH THE FINISHING TOUCH Tomahawk Power Trowels are perfect for projects including driveways, basements, and commercial jobs. Adjust from 0-28 ° with the trowel’s 4 combo, steel blades to achieve a matte, light gloss, or gleaming finish!
- Page 31 6.5 Gal Backpack Concrete Sprayer 6.5 Gal Backpack Concrete Sprayer 1.6 HP Vibratory Concrete Screed 1.6 HP Vibratory Concrete Screed 6” Early Entry Green Concrete Saw 6” Early Entry Green Concrete Saw Part#: TCS6.5 Part#: TCS6.5 Part#: TVSA-H Part#: TVSA-H Part#: TFS6H Part#: TFS6H...
- Page 32 With same day shipping and faster delivery times, count on Tomahawk to keep you powered throughout the day! With long lasting parts and engines, Tomahawk equipment will be the star of your fleet for years to come. Visit www.tomahawk-power.com to get started today! TOMAHAWK®, LLC...
