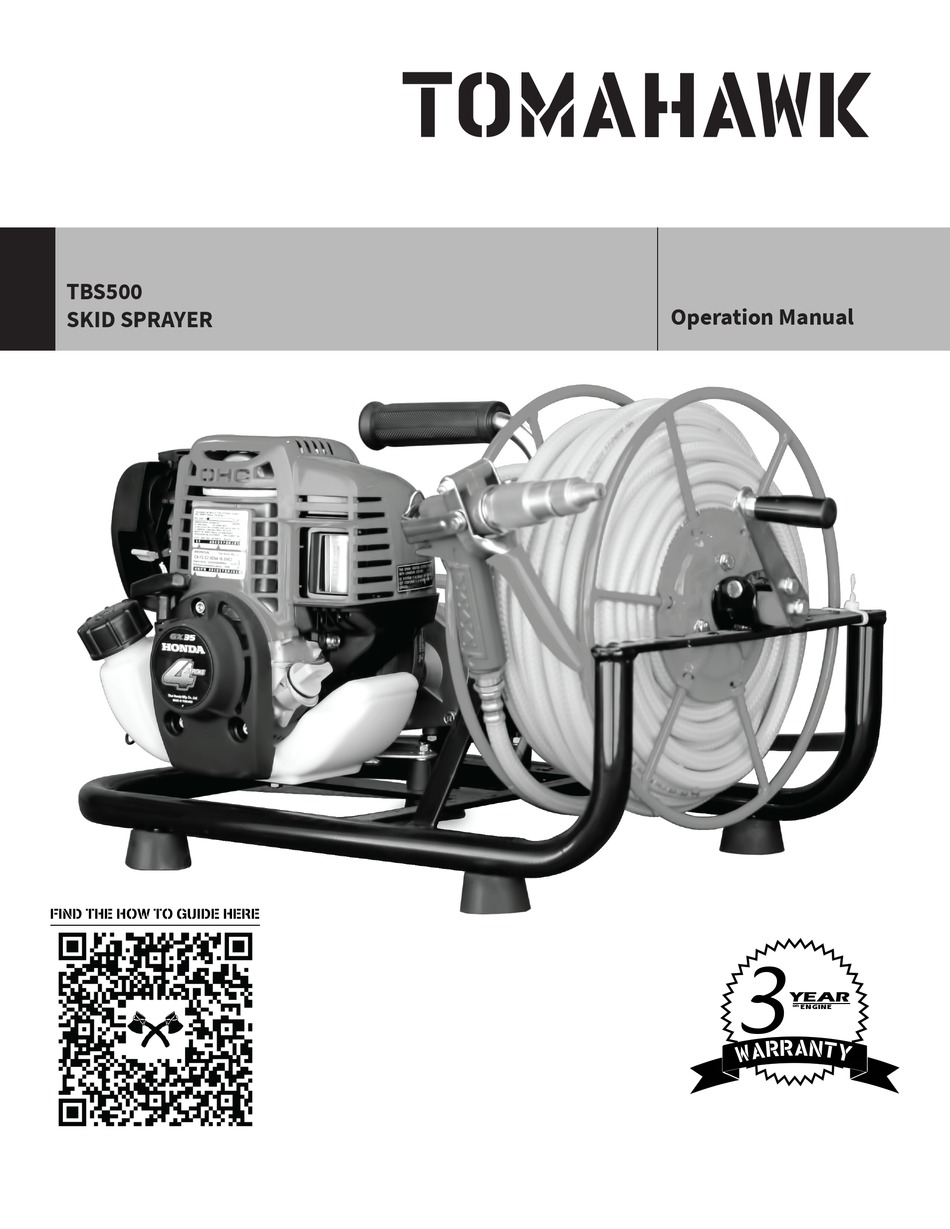

- Page 1 TBS500 Operation Manual SKID SPRAYER FIND THE HOW TO GUIDE HERE YEAR ENGINE...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. SAFETY INFORMATION 1.1 Operating Safety 1.2 Service Safety 1.3 Safety While Using Combustion Engines 2. EQUIPMENT PERFORMANCE 2.1 Design and Features 2.2 Honda GX35 Engine 2.3 Adjustable Pressure 2.4 Specifications 3. OPERATING PROCEDURES 3.1 Starting the Engine 3.1 Sprayer Operation 3.1 Stopping the Engine 4. - Page 3 Register Your Equipment Thank you for purchasing TOMAHAWK equipment! Your product is covered by the TOMAHAWK Warranty Policy, but in order to activate your warranty, we need you to register your product. In addition to activating your equipment warranty, product registration will grant you access to important product updates, streamlined customer service, and more.
-
Page 4: Safety Information
Tomahawk Power. The information contained in this manual is based on equipment’s production at the time of publication. Tomahawk Power reserves the right to change any portion of this information without notice. -
Page 5: Operating Safety
1.2.2 NEVER touch the engine or muffler while the engine is on or immediately after it has been turned off. These areas get hot and may cause burns. 1.2.3 NEVER use accessories or attachments that are not recommended by Tomahawk Power. Damage to equipment and injury to the user may result. -
Page 6: Service Safety
1.2 Service Safety Poorly maintained equipment can become a safety hazard! In order for the equipment to operate safely and properly over a long period of time, periodic DANGER maintenance and occasional repairs are necessary. 1.3 Safety while using Combustion Engines Internal combustion engines present special hazards during operation and fueling! Read and follow warning instructions in engine owner's manual and safety guidelines DANGER... -
Page 7: Equipment Performance
2. EQUIPMENT PERFORMANCE 2.1 Design and Features Tomahawk Skid Sprayers are your best solution for industrial pest control. Perfect for applying pesticides around commercial and residential areas, reach further distances around homes, barns, rural areas, and more with the included 100 ft hose! Versatile in design, this sprayer fits most tanks. -
Page 8: Operating Procedures
3. OPERATING PROCEDURES 3.1 Starting the Engine 3.1.1 To start a cold engine, move the choke lever to the CLOSED position. To restart a warm engine, leave the choke lever in the OPEN position. 3.1.2 Press the priming bulb repeatedly until fuel can be seen in the clear-plastic fuel-return tube. -
Page 9: Sprayer Operation
Do not allow the starter grip to snap back against the engine. Return it gently to prevent damage to the starter. DANGER 3.2 Sprayer Operation 3.2.1 Attach your desired nozzle or spraying attachment to the hose. 3.2.2 Place the filter and suction hose into your tank or water receptacle. 3.2.3 Start the engine using the guide above. -
Page 10: Parts Manual
TBS500 SKID SPRAYER... - Page 11 TBS500 EXPLOSION DIAGRAM...
- Page 12 TBS500 PART LIST Description Engine Drum Clutch Drum Case Gasket Oil Seal Steel Pipe O-Ring Bearing 6201 Shaft Bearing Hk1010 Steel Pin Bearing 608 Gear Shaft Bearing 6203 Bearing 6200 Crank Case O-Ring Crank Case Cover O-Ring Oil Glass Pump Stand...
- Page 13 TBS500 PART LIST Description 40-3 Valve Plug 40-4 Valve Seat 40-5 Valve Ring 40-6 Valve Packing Suction Chamber Connector 43+44 Grease Cup Outlet Chamber Valve Seat Pressure Valve Pressure Valve Rod Spring Relief Valve A’Ssy Pressure Valve Screw Pressure Adjusting...
- Page 14 TBS500 PART LIST Description Stop Switch Rubber Sheath Screw Washer Throttle Cable Comp Screw Washer Pipe Bolt Screw Screw...
- Page 16 10x Faster than manual sprayers, cover 1 acre in less than 30 minutes with 40ft of Reach. Great for year-round use, Tomahawk Foggers are also an excellent leaf blowing solution. No matter the season, keep your yard pest free and looking great! Item #: TMD14 3.7 GALLON TURBO...
- Page 17 SPRAY TODAY ENJOY TOMORROW Offering adjustable pressure from 20 to 70 PSI, Tomahawk Battery Sprayers are perfect for spraying residential and commercial areas! Powered by a superior 7Ah lithium battery with up to 11 hours of life, spray 6000 ft² in 10 minutes or less! Item #: eTPS18 4.75 GALLON BATTERY...
- Page 18 3 Year Engine Warranty & 1 Year Product Warranty 3 Year Engine Warranty & 1 Year Product Warranty HAVE QUESTIONS? HAVE QUESTIONS? Contact us. We’re here to help! Contact us. We’re here to help! Email us at sales@tomahawk-power.com Email us at sales@tomahawk-power.com...
- Page 19 1 Year Product Warranty 3 Year Engine Warranty & 1 Year Product Warranty 1 Year Product Warranty * All coupons in this manual are valid only for orders placed on www.tomahawk-power.com, unless otherwise noted. Coupon codes ASSEMBLED IN THE ASSEMBLED IN THE may only be used once per customer and may not be combined with any other offer.
- Page 20 With same day shipping and faster delivery times, count on Tomahawk to keep you powered throughout the day! With long lasting parts and engines, Tomahawk equipment will be the star of your fleet for years to come. Visit www.tomahawk-power.com to get started today!
- Page 23 www.tomahawk-power.com...
