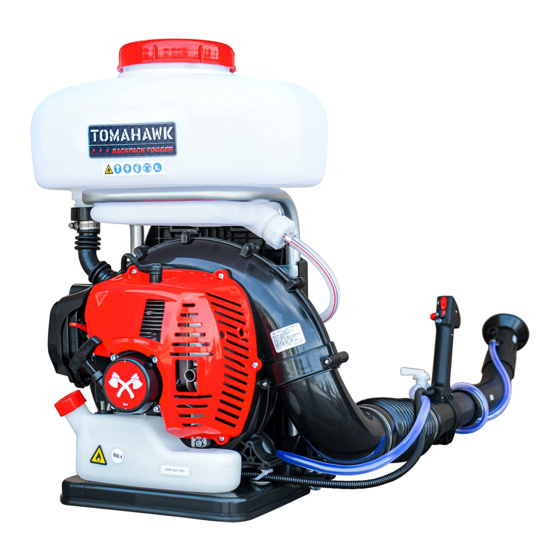

- Page 1 TMD14 Operations Manual BACKPACK FOGGER...
- Page 2 Register Your Equipment Thank you for purchasing TOMAHAWK equipment! Your product is covered by the TOMAHAWK Warranty Policy, but in order to activate your warranty, we need you to register your product. In addition to activating your equipment warranty, product registration will grant you access to important product updates, streamlined customer service, and more.
- Page 4 TMD14: Fogger Assembly Pt1 www.tomahawk-power.com...
- Page 5 TMD14: Fogger Assembly Pt2 www.tomahawk-power.com...
-
Page 6: Safety Precautions And Warnings
It is extremely hot. Equipment Warnings 1. The TMD14’s 2 stroke engine runs on 50:1 fuel mix. Use 91 octane gas and two-cycle engine oil. Note: 50:1 pre-mix fuel is ideal for this product as it contains fuel stabilizers to ensure longevity of the equipment. - Page 7 FUELING This engine is certified to operate on unleaded gasoline and two- stroke engine oil at a mix ratio of 50:1. This engine requires a mixture of high-quality gasoline and 2-stroke air cooled engine oil. Use mid-grade unleaded gasoline with a minimum octane rating of 91 and no more than 10% ethanol content.
- Page 9 1. Move the water valve to the closed position to stop the flow of liquid pesticide. Figure 1. 2. Move the throttle lever to the down position (O) to stop the engine. Figure 2. 3. Move the choke to the closed position. Figure 3.
- Page 10 ADDING CHEMICALS AND ADJUSTING OPTIONS Adding Chemicals Warning- Some chemicals sprayed with the mist blower can contain toxic substances which can lead to serious side effects and injury. 1. Avoid direct contact with chemicals and always follow the instructions of the chemical manufacturer. Always wear the proper clothing and chemical protection 2.
-
Page 11: Technical Specifications
TECHNICAL SPECIFICATIONS 18’’ x 12’’ x 26’’ Dimensions 24 lbs Net Weight 3.7 Gallons (14 Liters) Tank Capacity 63cc Engine Size 6500RPM Engine Speed 1.5kW Engine Power 475 CFM (up to 200mph) Blower Speed Recommended 50:1 Premix Fuel Fuel Type Dust or Liquid Spraying Options 10 ft Max... -
Page 14: Maintenance And Troubleshooting
MAINTENANCE & TROUBLESHOOTING Maintenance Before fixing your equipment, make sure the engine is turned off and completely cooled down. Spark Plug: PROBLEM CAUSE SOLUTION Dry Spark 1. Spark plug is wet Plug 2. Spark plug is dirty Clean Spark Plug 3. - Page 15 Engine stops while running: PROBLEM CAUSE SOLUTION 1. Wire of plug is loose Replace 2. Piston is broken Engine stops Fix or Replace suddenly 3. Plug is dirty Clean 4. Fuel is empty Add Fuel 1. Carburetor is dirty Clean The engine stops 2.
- Page 16 TMD14 BACKPACK FOGGER Parts Manual...
- Page 26 3 Year Engine Warranty & 1 Year Product Warranty 3 Year Engine Warranty & 1 Year Product Warranty HAVE QUESTIONS? HAVE QUESTIONS? Contact us. We’re here to help! Contact us. We’re here to help! Email us at sales@tomahawk-power.com Email us at sales@tomahawk-power.com...
- Page 27 1 Year Product Warranty 3 Year Engine Warranty & 1 Year Product Warranty 1 Year Product Warranty * All coupons in this manual are valid only for orders placed on www.tomahawk-power.com, unless otherwise noted. Coupon codes ASSEMBLED IN THE ASSEMBLED IN THE may only be used once per customer and may not be combined with any other offer.
- Page 28 With same day shipping and faster delivery times, count on Tomahawk to keep you powered throughout the day! With long lasting parts and engines, Tomahawk equipment will be the star of your fleet for years to come. Visit www.tomahawk-power.com to get started today!
